Removal of Center Ventilator Grille

  1. Remove cluster lid C. Refer to REMOVAL AND INSTALLATION .
  2. Remove mounting screw and clips, and then remove center ventilator grille.

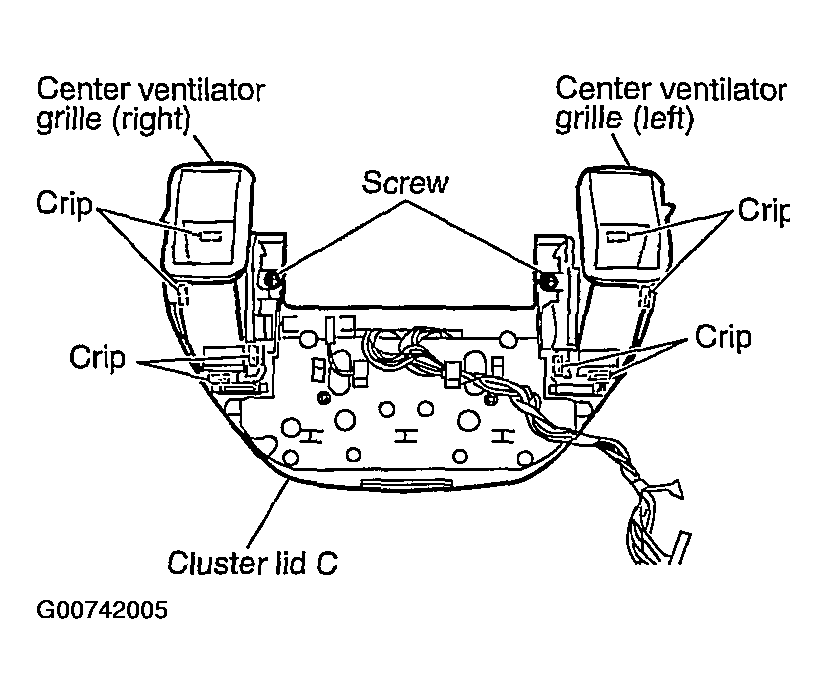

Fig 1: Identifying Grilles & Clips
G00742005Courtesy of NISSAN MOTOR CO., U.S.A.
