Brake Pedal Height

Check brake pedal free height "H" and depressed height "D" from floor panel to top of brake pedal pad. See Fig 1 . See BRAKE PEDAL HEIGHT table. To adjust brake pedal height, loosen lock nut and turn brake booster input rod. Tighten lock nut to 12-15 ft. lbs. (16-22 N.m). Ensure rod tip stays inside input rod clevis.

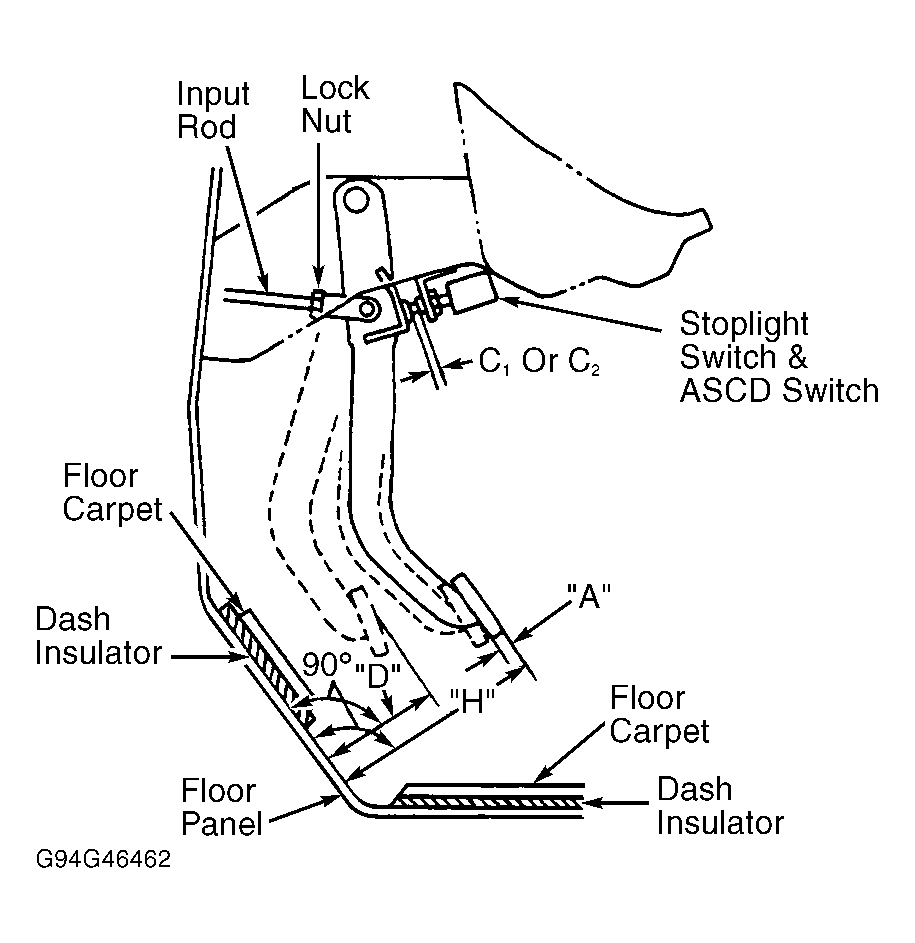

Fig 1: Adjusting Brake Pedal Height

Courtesy of NISSAN MOTOR CO., U.S.A.

BRAKE PEDAL HEIGHT

Application

In. (mm)

Free Height "H"

7.57-7.97 (192.4-202.4)

Depressed Height "D"⁽¹⁾

3.54 (90) Or More

⁽¹⁾	Under force of 110 lbs. (50 kg) with engine running.
