Wiring Diagram - INT/L -

NOTE: For wiring diagram references to PG-POWER , see POWER DISTRIBUTION and GROUND DISTRIBUTION .

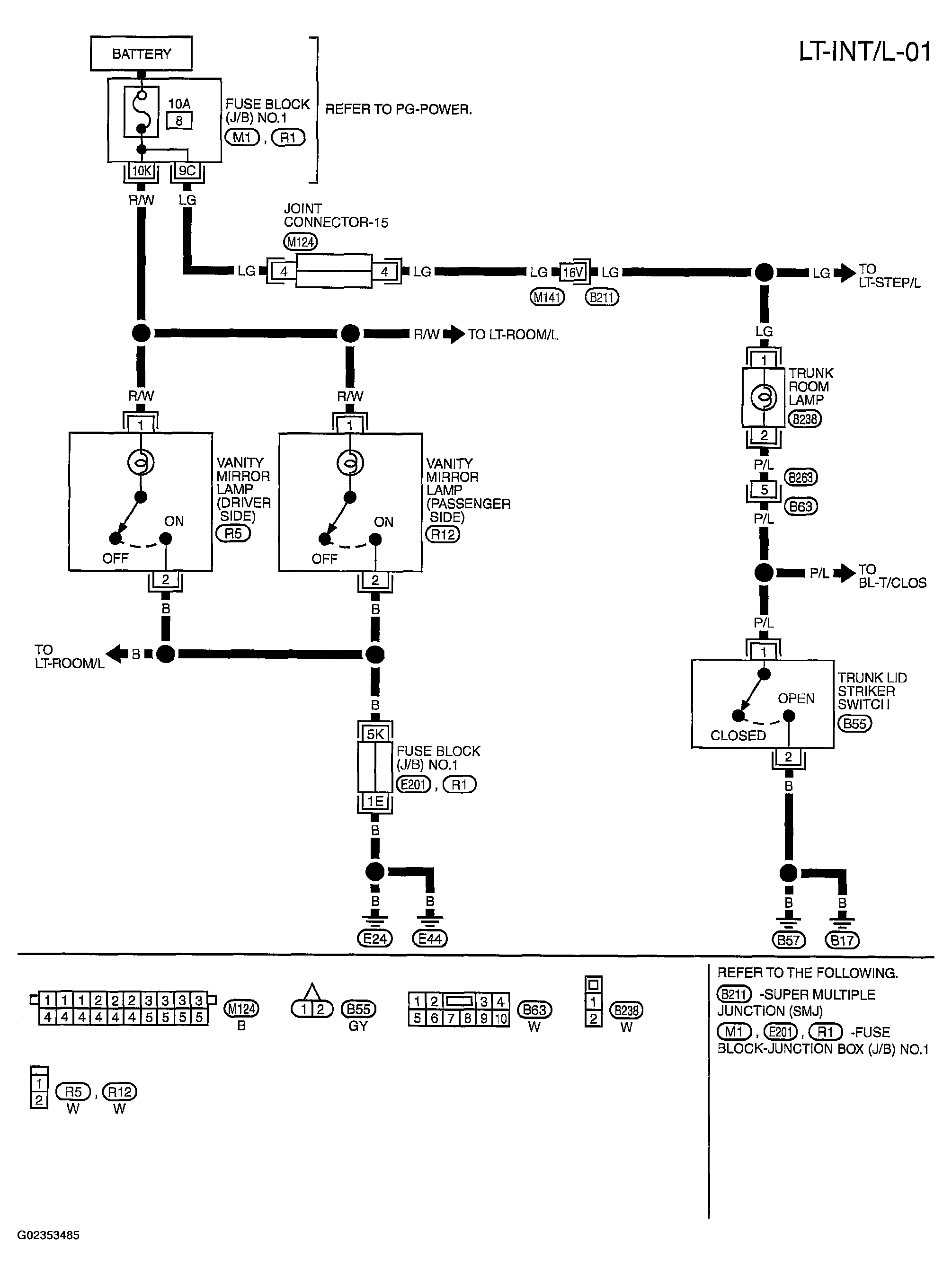

Fig 1: INT/L - Wiring Diagram - LT-INT/L-01

Courtesy of NISSAN MOTOR CO., U.S.A.
