Parking, License Plate And Tail Lamps: Schematic

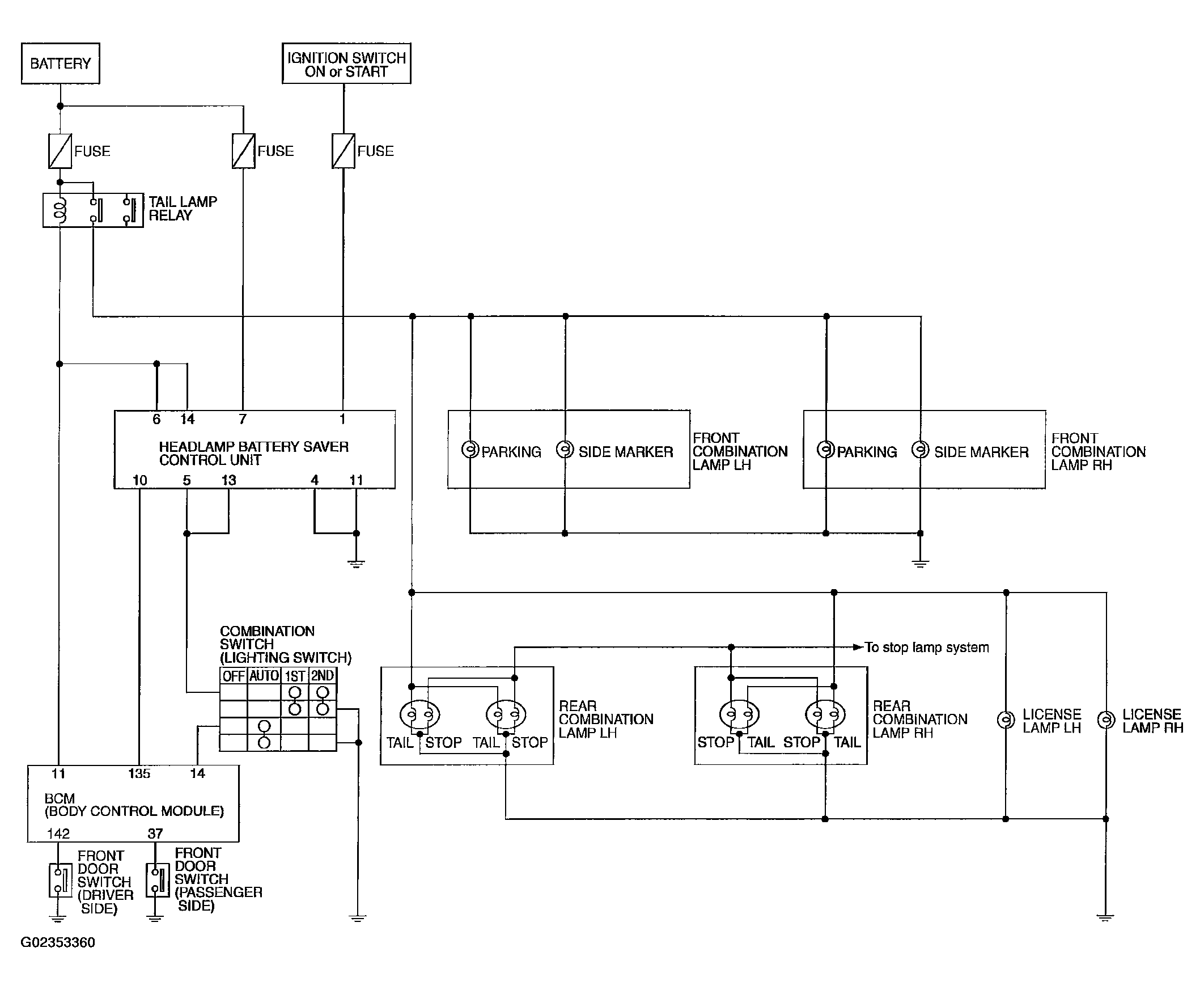

Fig 1: Schematic - Parking, License Plate And Tail Lamps

G02353360

Courtesy of NISSAN MOTOR CO., U.S.A.
