License Plate Lamp

  1. Open the trunk and remove the trunk lid finisher. Refer to "TRUNK ROOM TRIM & TRUNK LID FINISHER ".
  2. Disconnect the license plate lamp connector.
  3. Turn the bulb socket counterclockwise and unlock it.
  4. Remove the bulb from its socket.
    1. License plate lamp: 12V 5W
    2. License plate lamp mounting screw:
    3. : 2.4 N.m (0.24 kg-m, 21 in-lb)

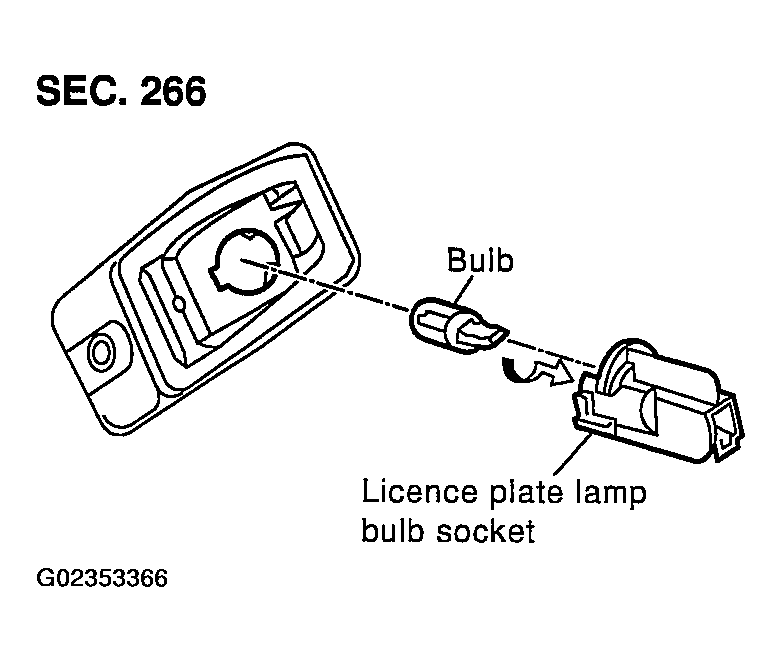

    Fig 1: Removing/Installing License Plate Lamp Bulb
    G02353366Courtesy of NISSAN MOTOR CO., U.S.A.
