Automatic Transmission
>>
Trouble Diagnosis
>>
Inspections Before Trouble Diagnosis
>>
Stall Test
>>
Judgement Stall Test
Judgement Stall Test

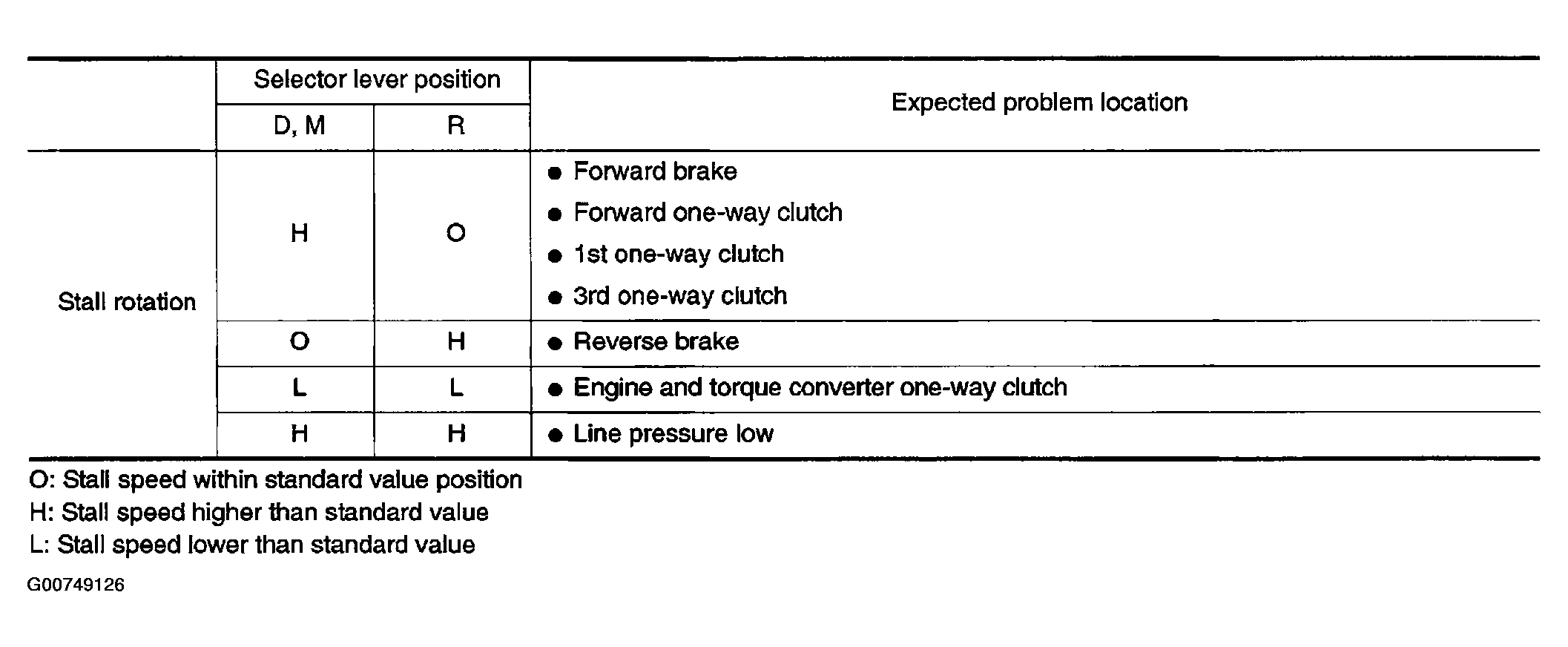

Fig 1: Using Stall Speed To Determine Transmission Failure Areas
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
