DTC P1772: Low Coast Brake Solenoid Valve
>>
Wiring Diagram - A/T - LC/B
Wiring Diagram - A/T - LC/B

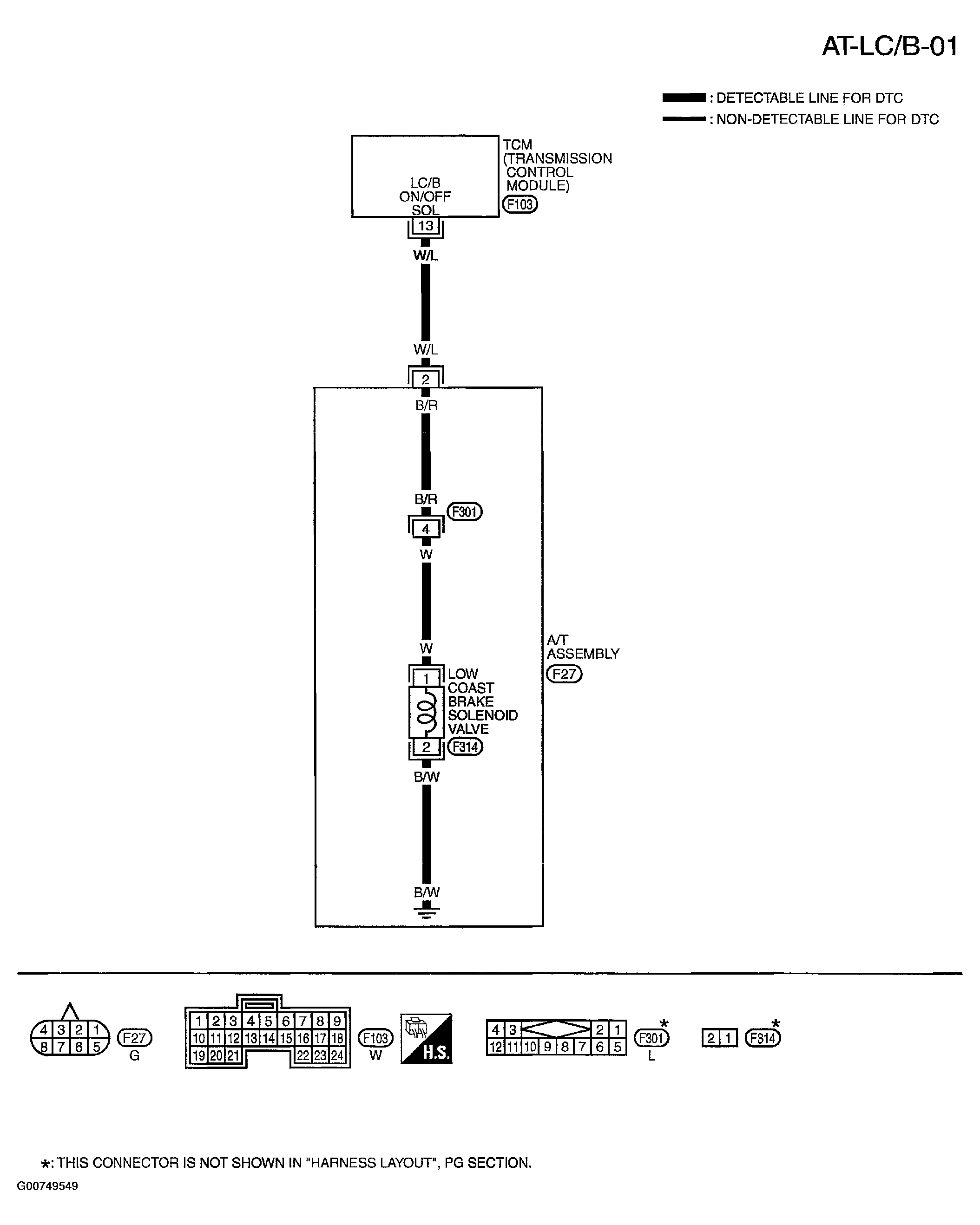

Fig 1: A/T - LC/B Wiring Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.

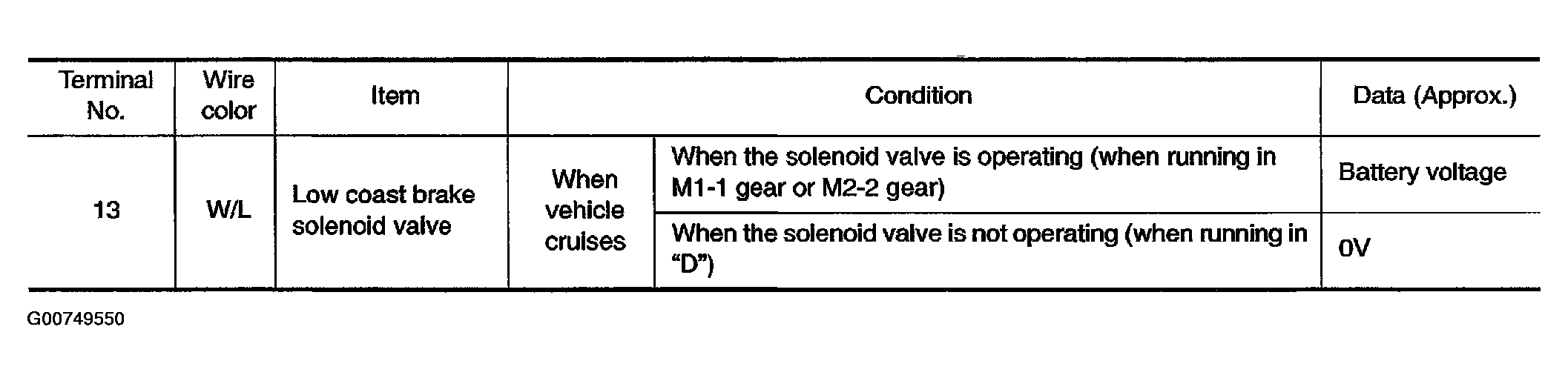

Fig 2: Identifying A/T - LC/B Wiring Diagram Terminal Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
