Wiring Diagram - A/T - HLR/C

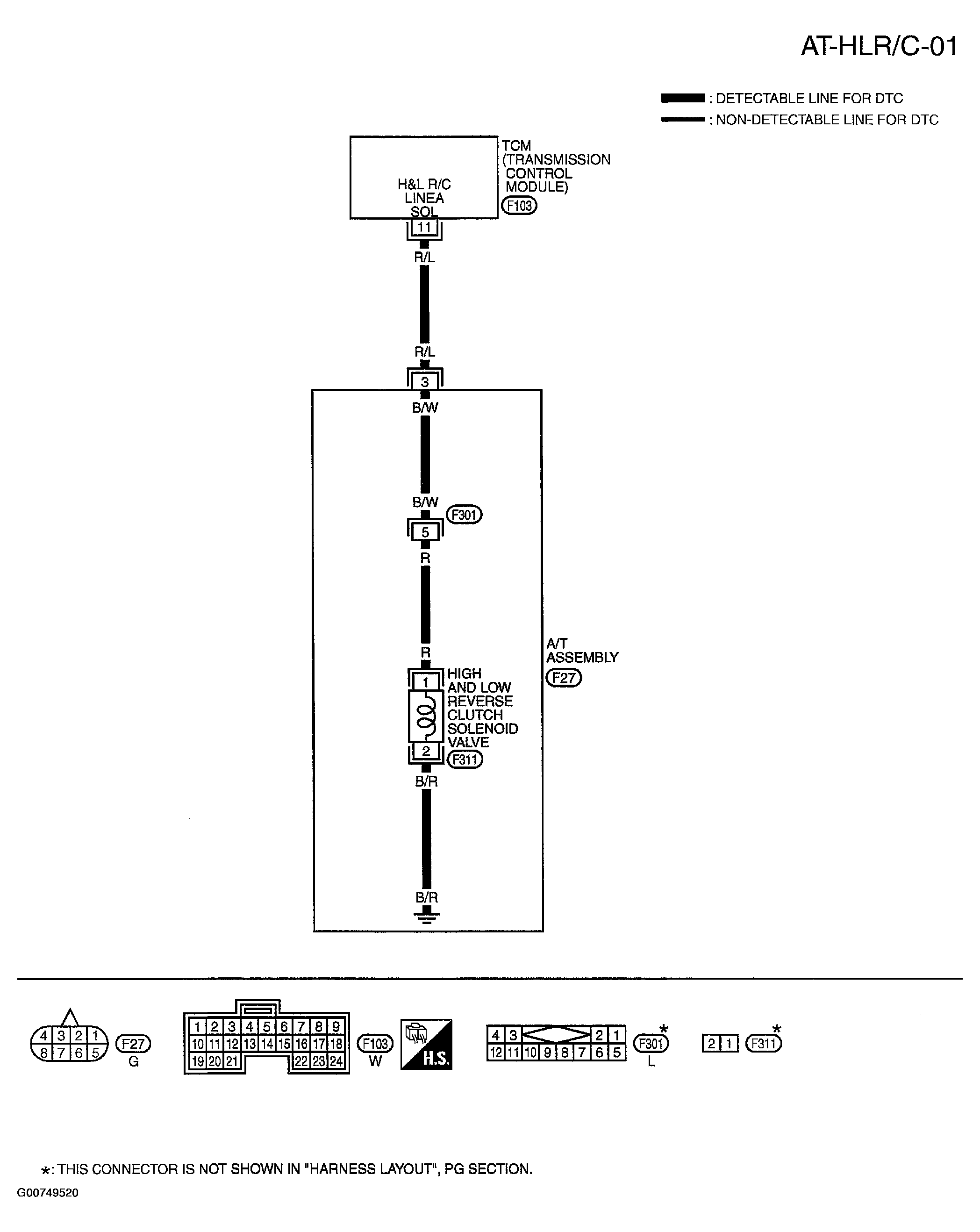

Fig 1: A/T - HLR/C Wiring Diagram
G00749520Courtesy of NISSAN MOTOR CO., U.S.A.

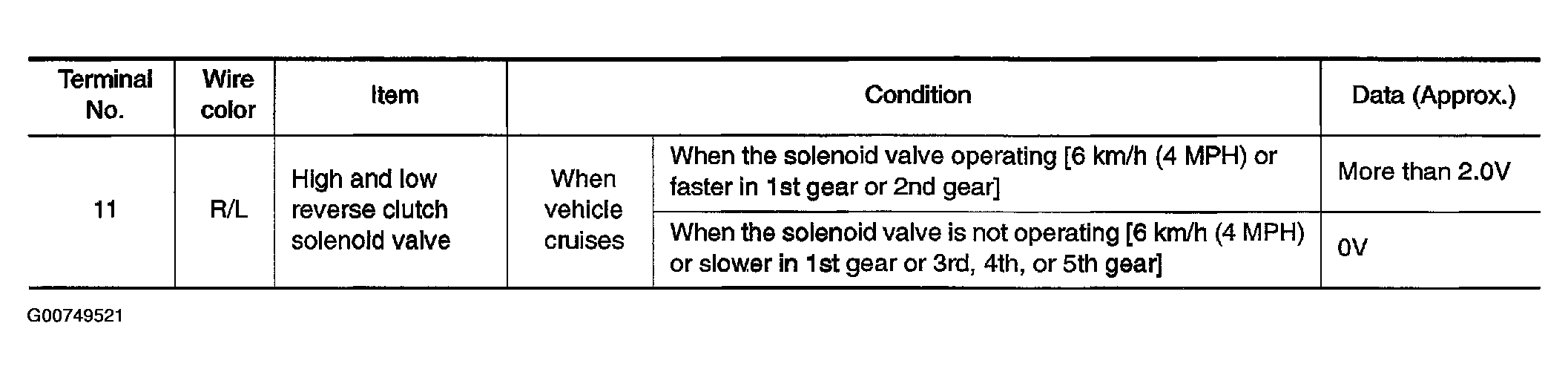

Fig 2: Identifying A/T - HLR/C Wiring Diagram Terminal Specifications
G00749521Courtesy of NISSAN MOTOR CO., U.S.A.
