Wiring Diagram - TAIL/L -

NOTE: For additional information, see SYSTEM WIRING DIAGRAMS article.

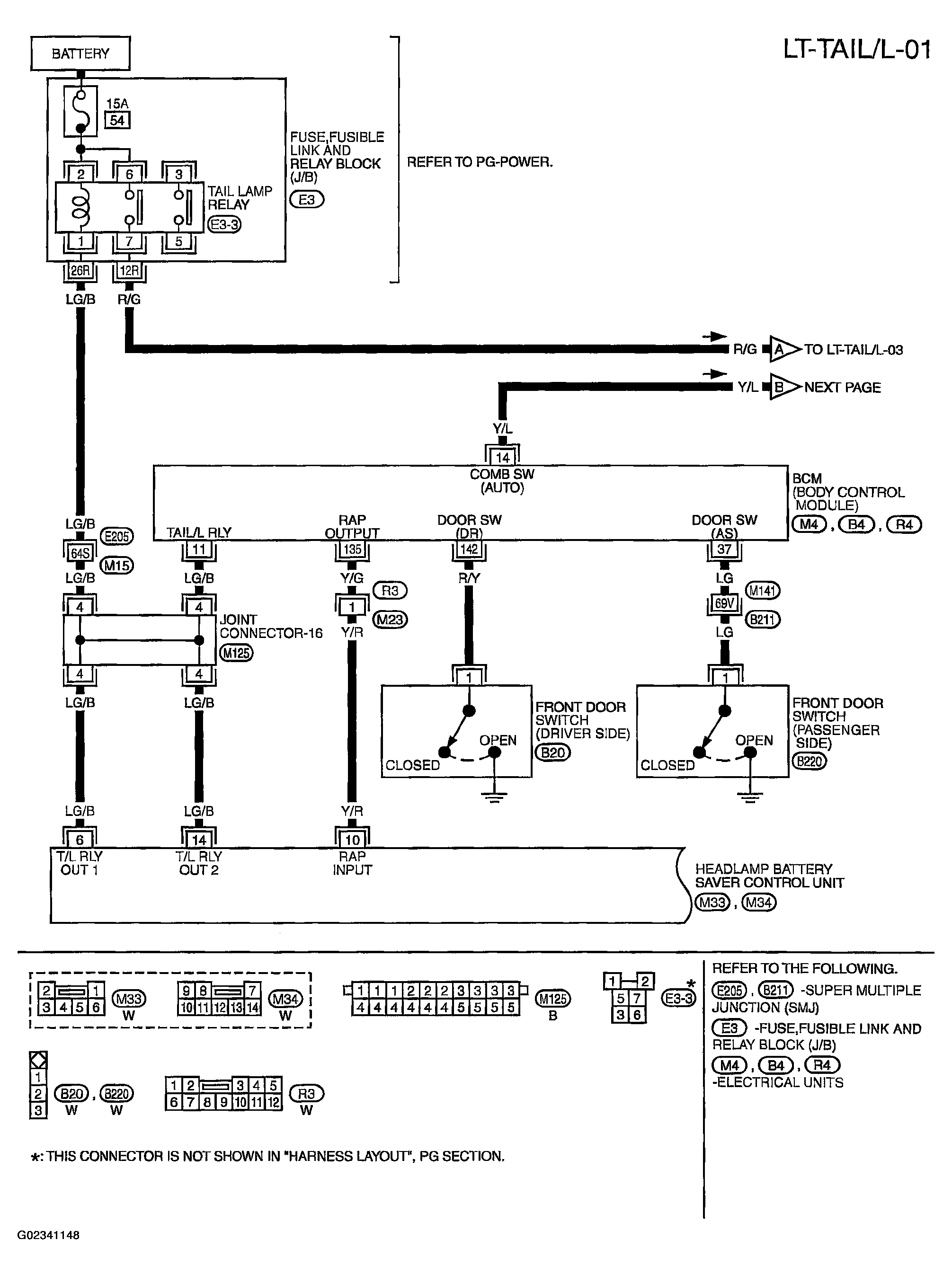

Fig 1: Wiring Diagram LT-TAIL/L (1 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.

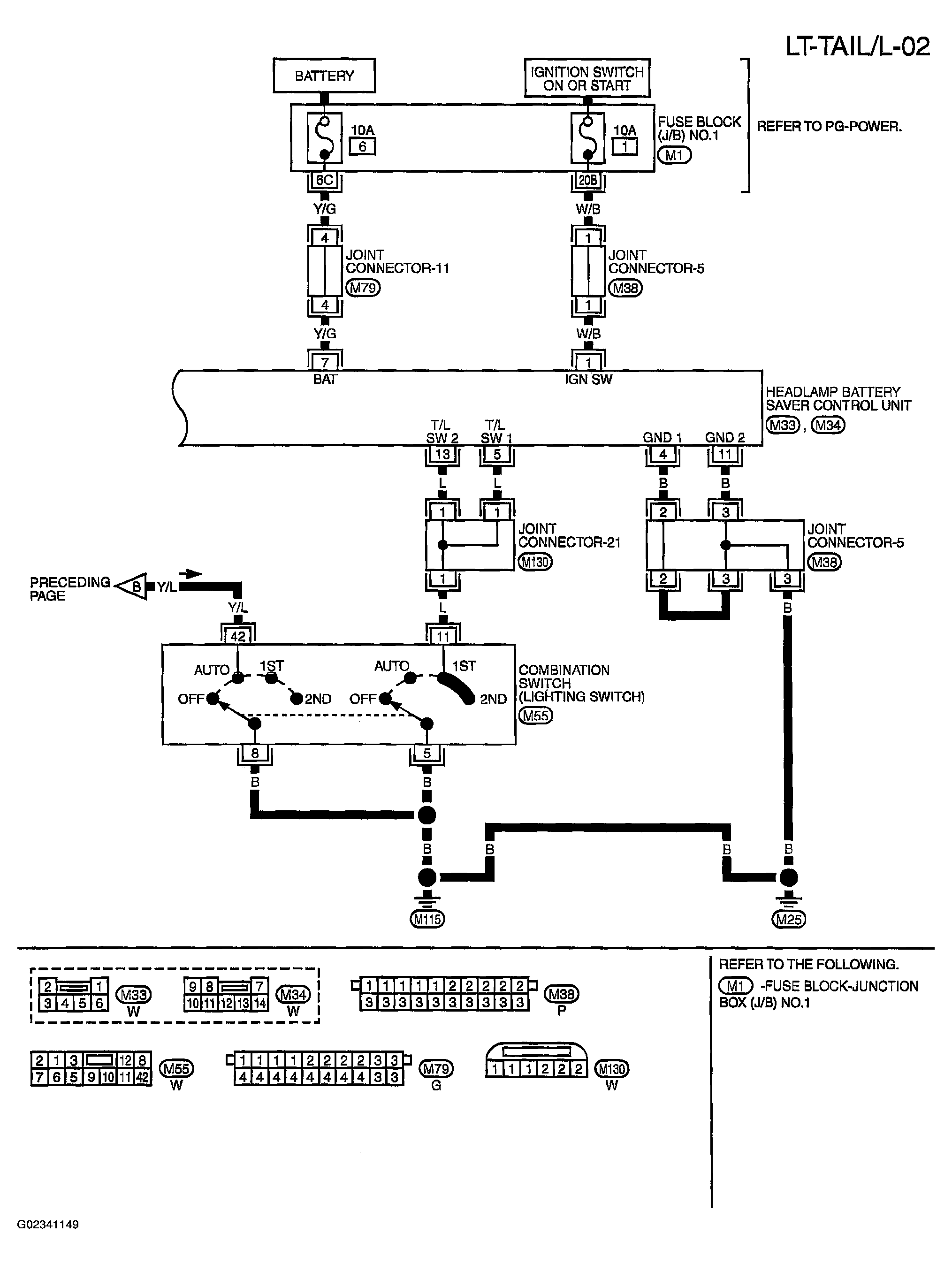

Fig 2: Wiring Diagram LT-TAIL/L (2 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.

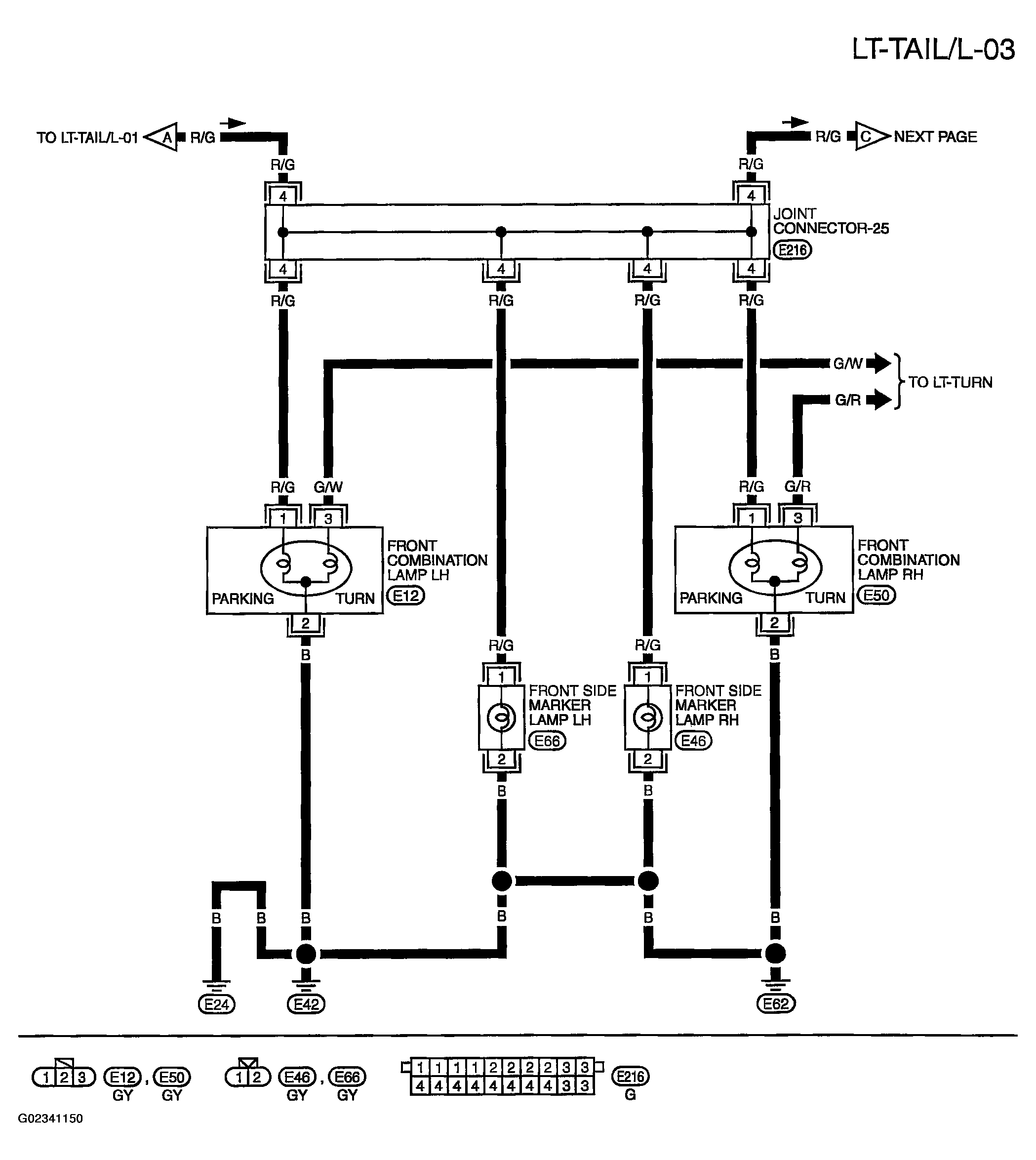

Fig 3: Wiring Diagram LT-TAIL/L (3 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.

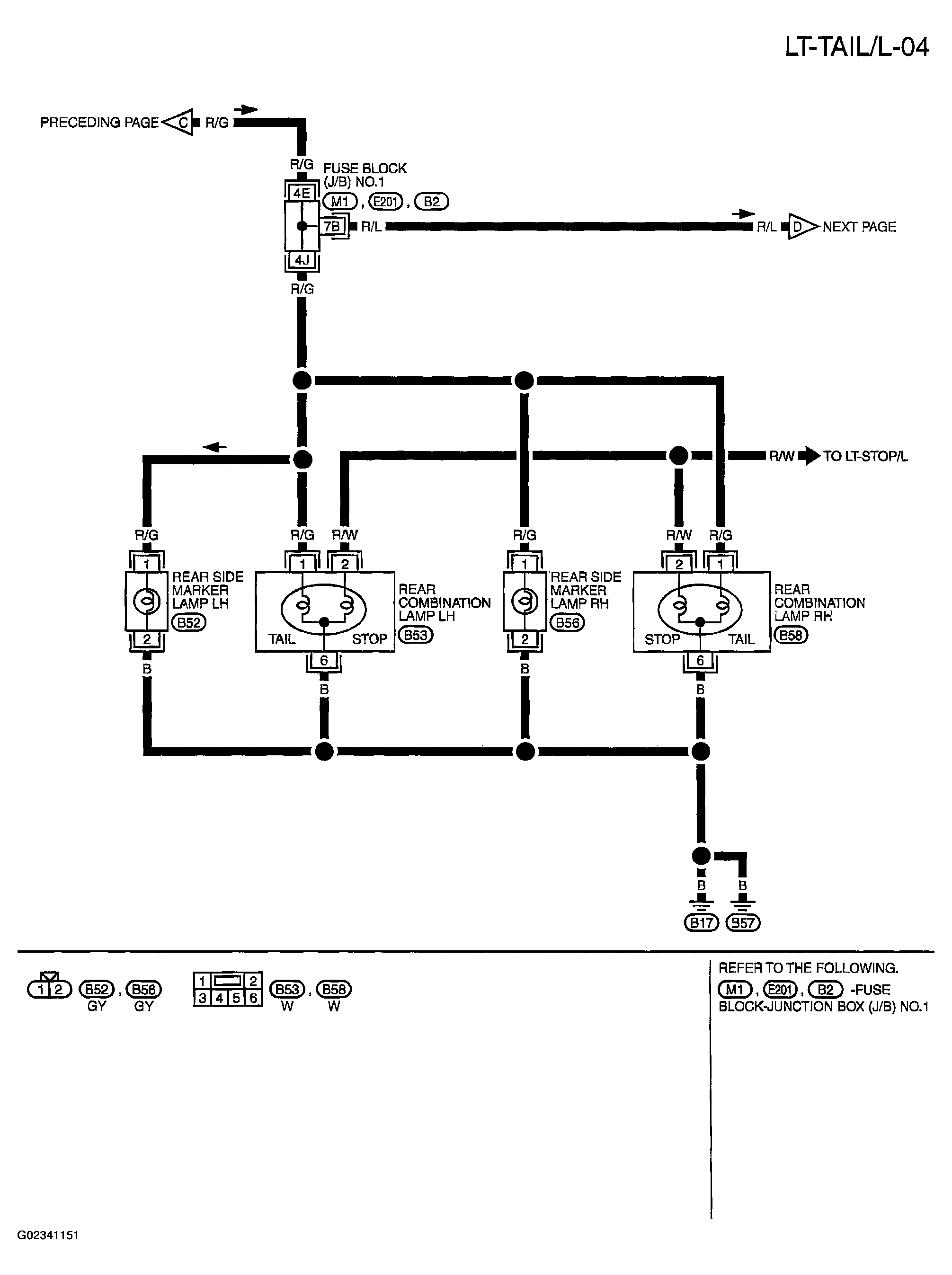

Fig 4: Wiring Diagram LT-TAIL/L (4 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.

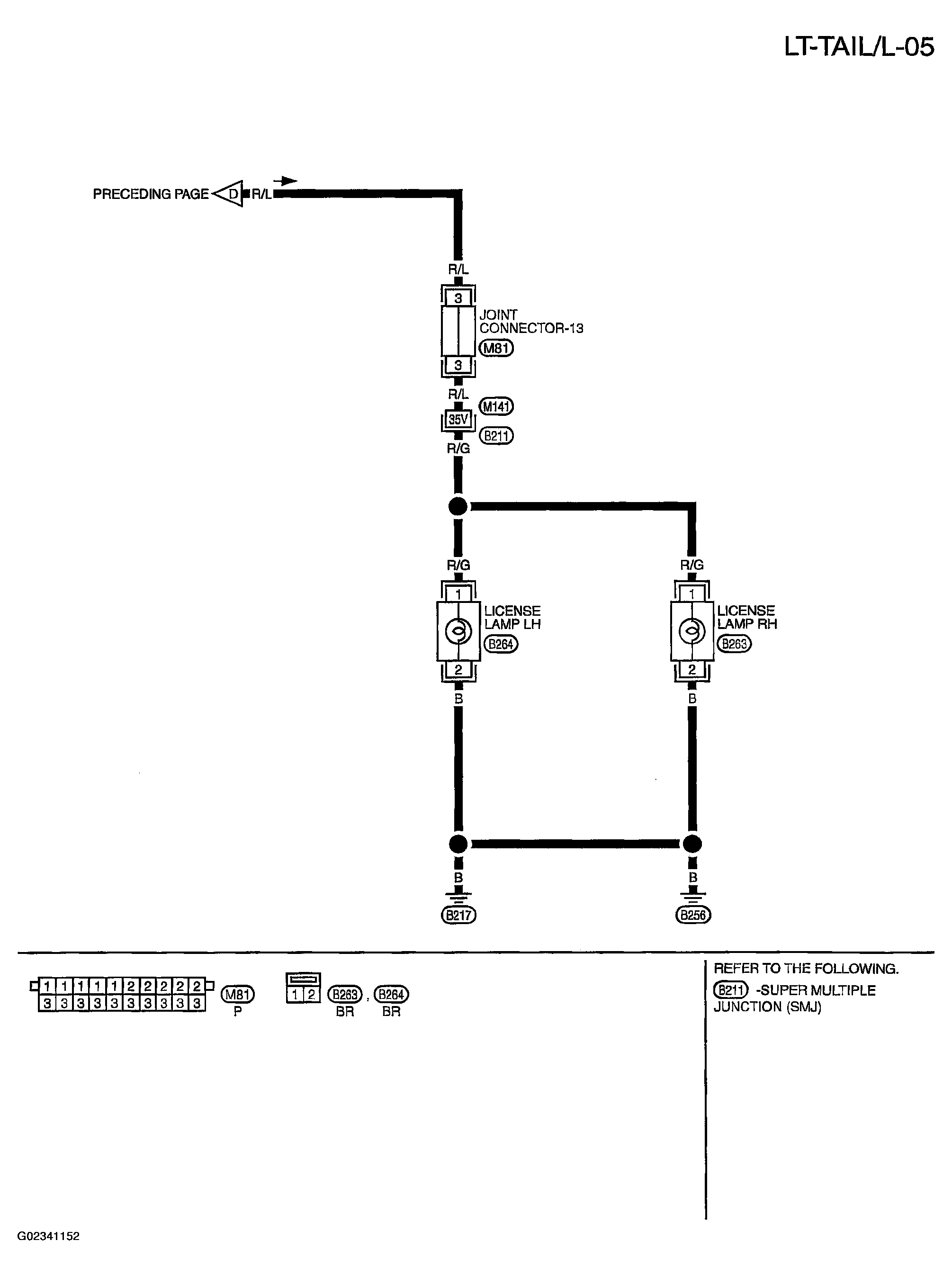

Fig 5: Wiring Diagram LT-TAIL/L (5 Of 5 )

Courtesy of NISSAN MOTOR CO., U.S.A.
