Parking, License Plate And Tail Lamps
>>
Terminals and Reference Value for Headlamp Battery Saver Control Unit
Terminals and Reference Value for Headlamp Battery Saver Control Unit

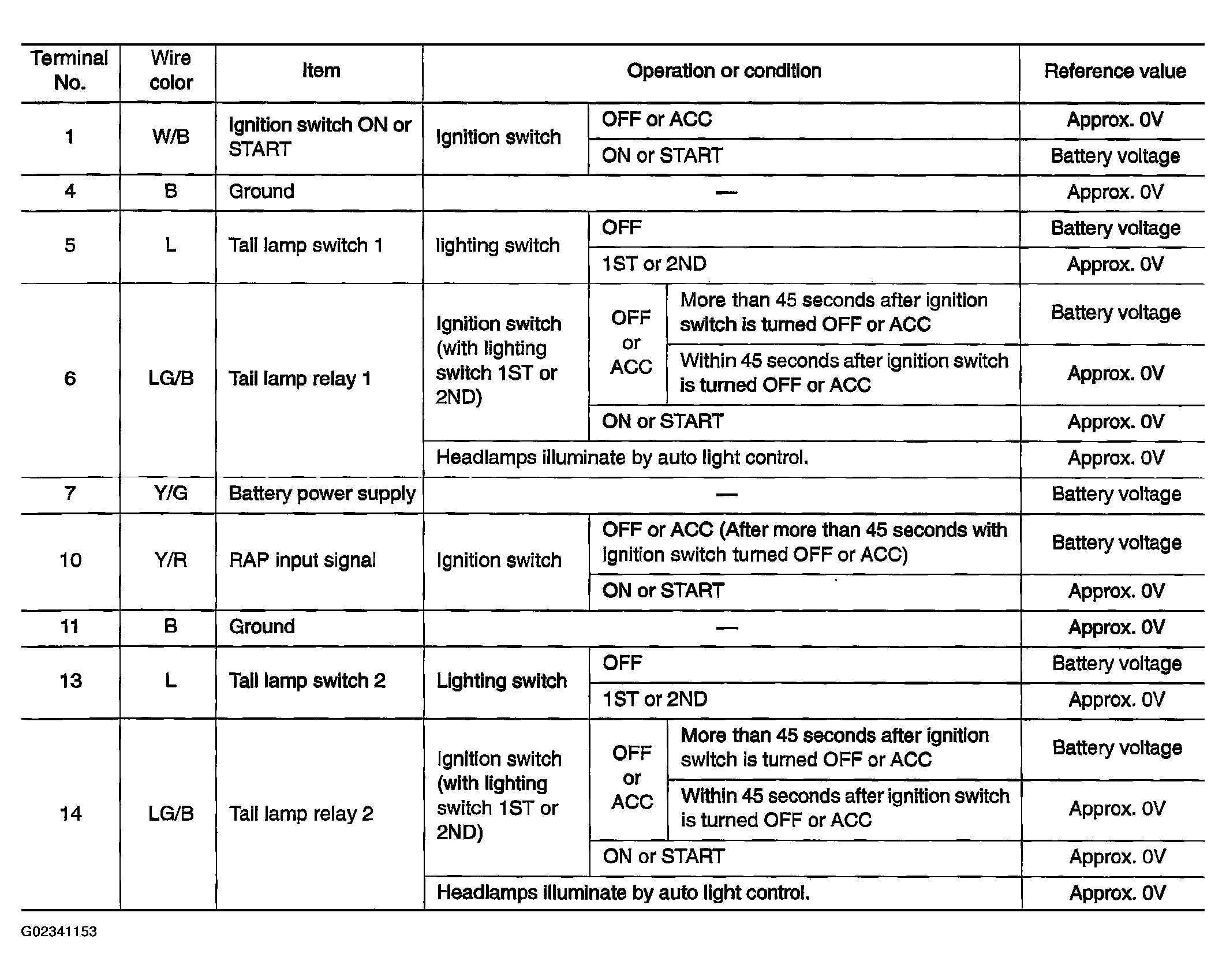

Fig 1: Headlamp Battery Saver Control Unit Terminals And Reference Value Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
