Terminals and Reference Value for BCM

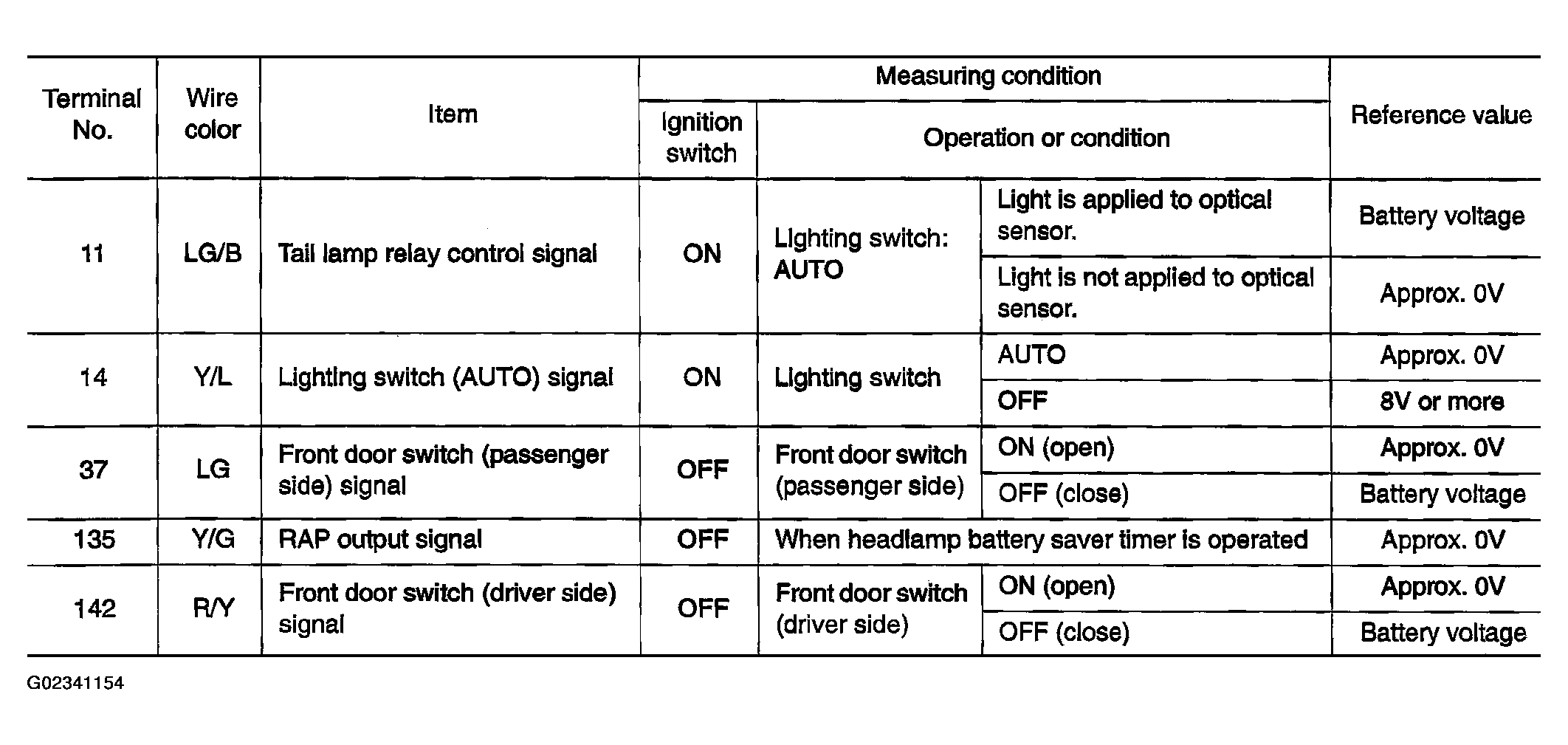

Fig 1: BCM Terminals And Reference Value Chart

G02341154

Courtesy of NISSAN MOTOR CO., U.S.A.
