Rear Side Marker Lamp

  1. Remove rear combination lamp. Refer to "REAR COMBINATION LAMP ".
  2. Turn bulb socket counterclockwise and unlock it.
  3. Remove bulb from bulb socket.
    1. Rear side marker lamp: 12V 3.8W

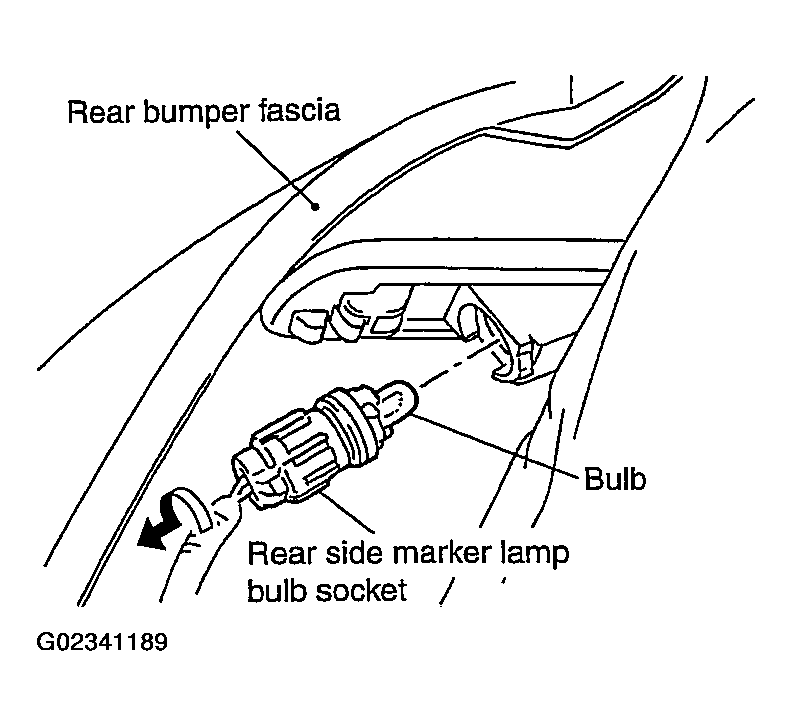

    Fig 1: Locating Rear Side Marker Lamp Bulb Socket
    G02341189Courtesy of NISSAN MOTOR CO., U.S.A.
