Rear Combination Lamp

  1. Remove trunk side finisher. Refer to "TRUNK ROOM TRIM & TRUNK LID FINISHER " in "EXTERIOR & INTERIOR".
  2. Turn bulb socket counterclockwise and unlock it.
  3. Remove bulb.
    1. Stop/Tail lamp (outer-inner side): 12V 21/5W
    2. Rear turn signal lamp: 12V 21W (amber)
    3. Buck-up lamp: 12V 18W

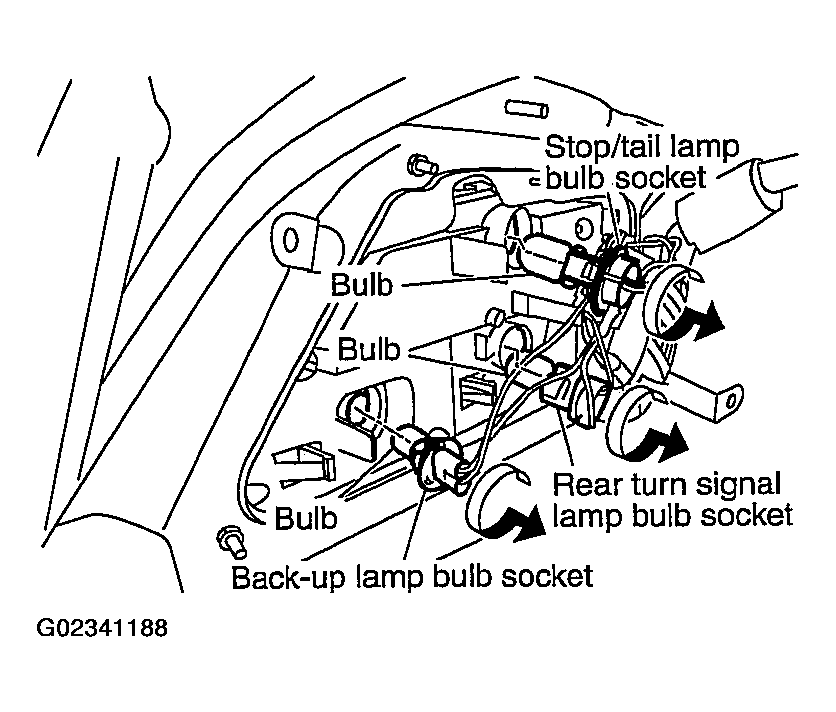

    Fig 1: Identifying Bulb Socket And Bulb
    G02341188Courtesy of NISSAN MOTOR CO., U.S.A.
