License Plate Lamp

  1. Remove trunk lid finisher. Refer to "TRUNK ROOM TRIM & TRUNK LID FINISHER " in "EXTERIOR & INTERIOR".
  2. Disconnect license plate lamp connector.
  3. Turn bulb socket counterclockwise and unlock it.
  4. Remove bulb from its socket.
    1. License plate lamp: 12V 5W

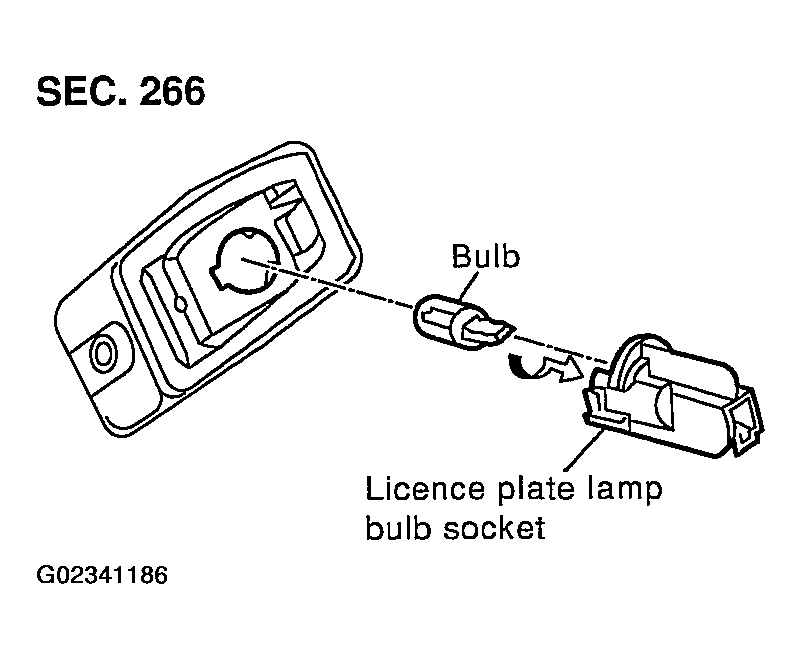

    Fig 1: Removing License Plate Lamp Bulb
    G02341186Courtesy of NISSAN MOTOR CO., U.S.A.
