Front Side Marker Lamp

  1. Remove fender protector (front). Refer to "FENDER PROTECTOR ".
  2. Turn bulb socket counterclockwise and unlock it.
  3. Remove bulb from its socket.
    1. Front side marker lamp: 12V 3.8W

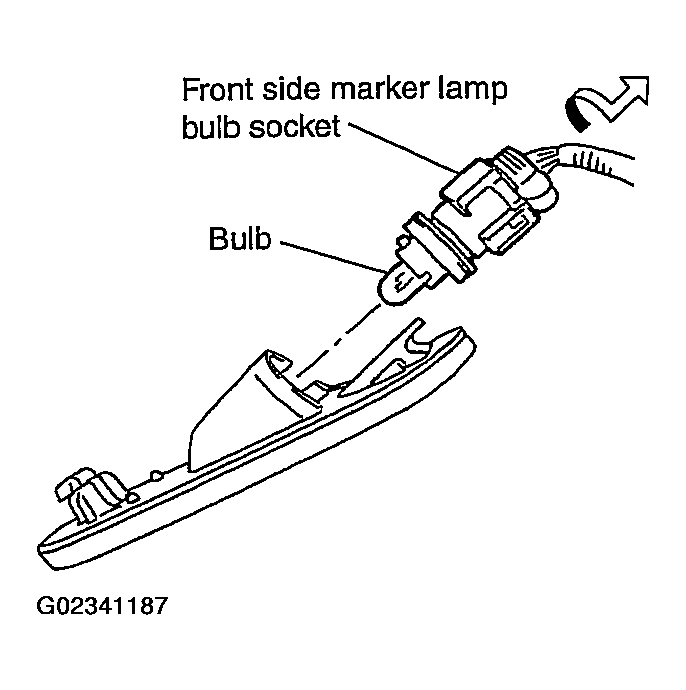

    Fig 1: Locating Front Side Marker Lamp Bulb Socket And Bulb
    G02341187Courtesy of NISSAN MOTOR CO., U.S.A.
