4 CHECK SHIFT UP (D to D ) AND ENGINE BRAKE

Release accelerator pedal after shifting from D₂ to D₃ .

Does A/T shift from D₃ to D₄ and does vehicle decelerate by engine brake?

Read gear position, throttle position and vehicle speed.

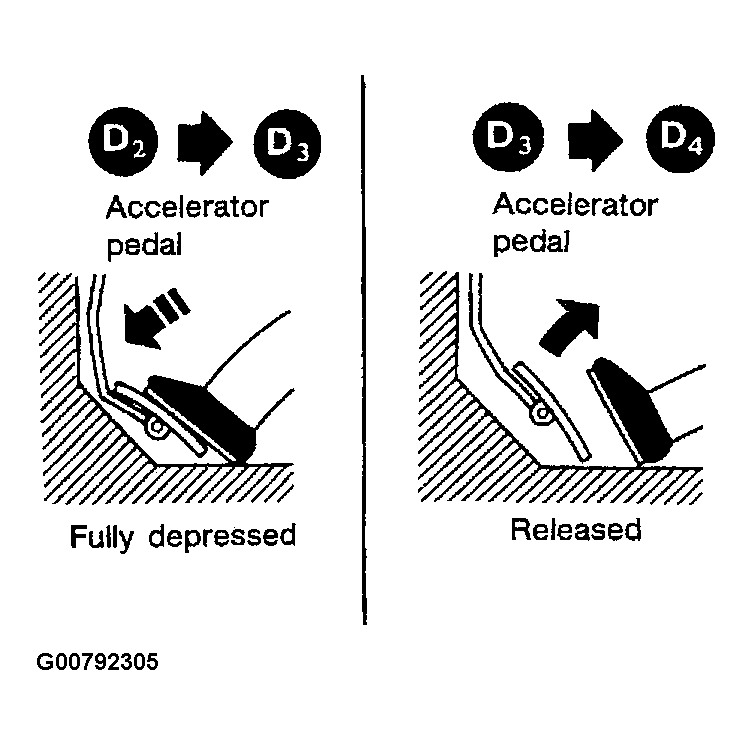

Fig 1: Checking Shift Up (D₃ To D₄ ) And Engine Brake

Courtesy of NISSAN MOTOR CO., U.S.A.

Yes or No

Yes:

1. Stop vehicle.
2. Go to "CRUISE TEST - PART 3 " .

No: Mark the box of "A/T Does Not Shift: D₃ --> D₄ " on the DIAGNOSTIC WORKSHEET. Continue ROAD TEST.
