Wiring Diagram - METER -

NOTE: For additional information, see SYSTEM WIRING DIAGRAMS article.

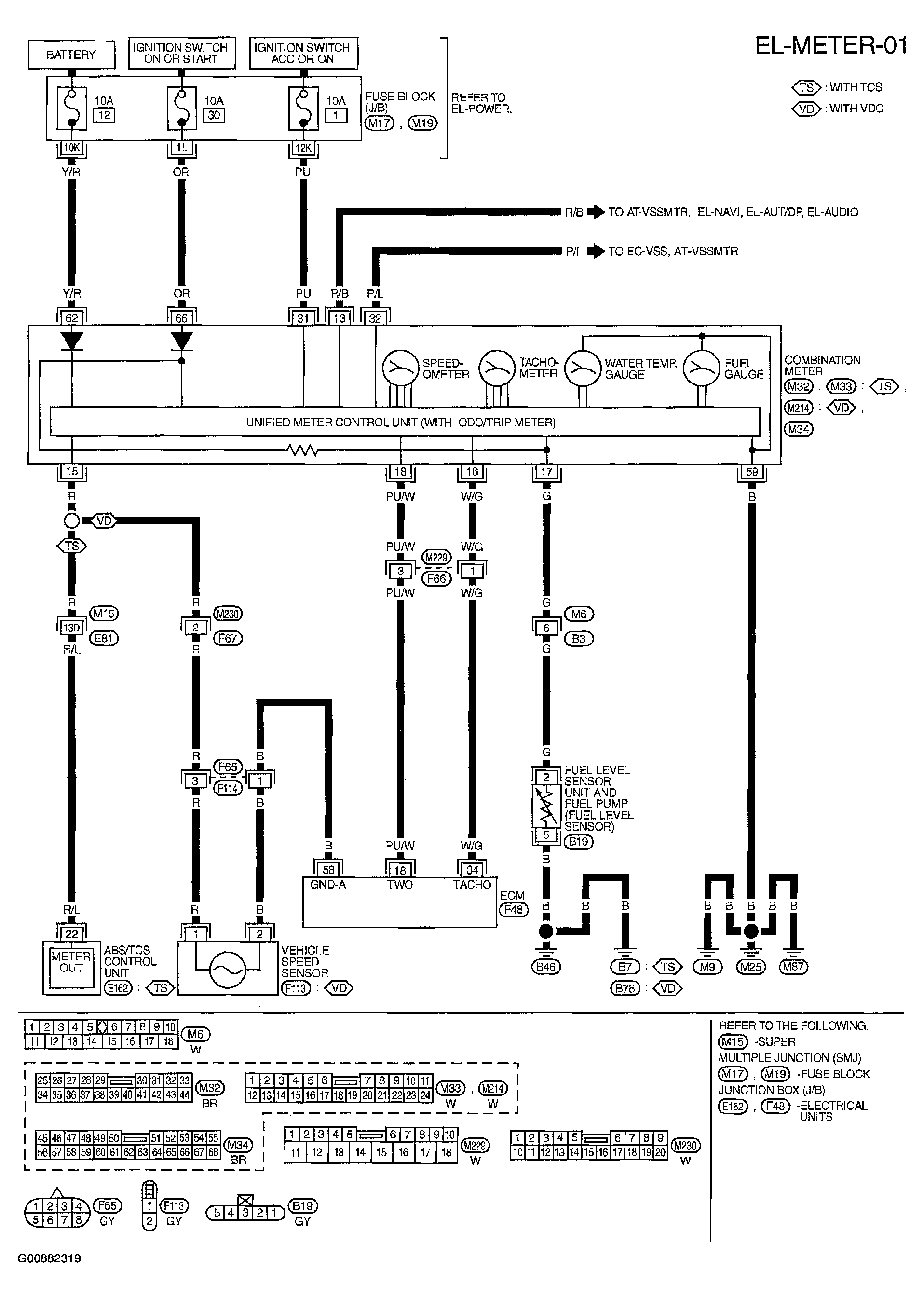

Fig 1: Meter Wiring Diagram - EL-METER-01

G00882319

Courtesy of NISSAN MOTOR CO., U.S.A.
