Wiring Diagram & Connector Identification - TAIL/L -

NOTE: For additional information, see SYSTEM WIRING DIAGRAMS article.

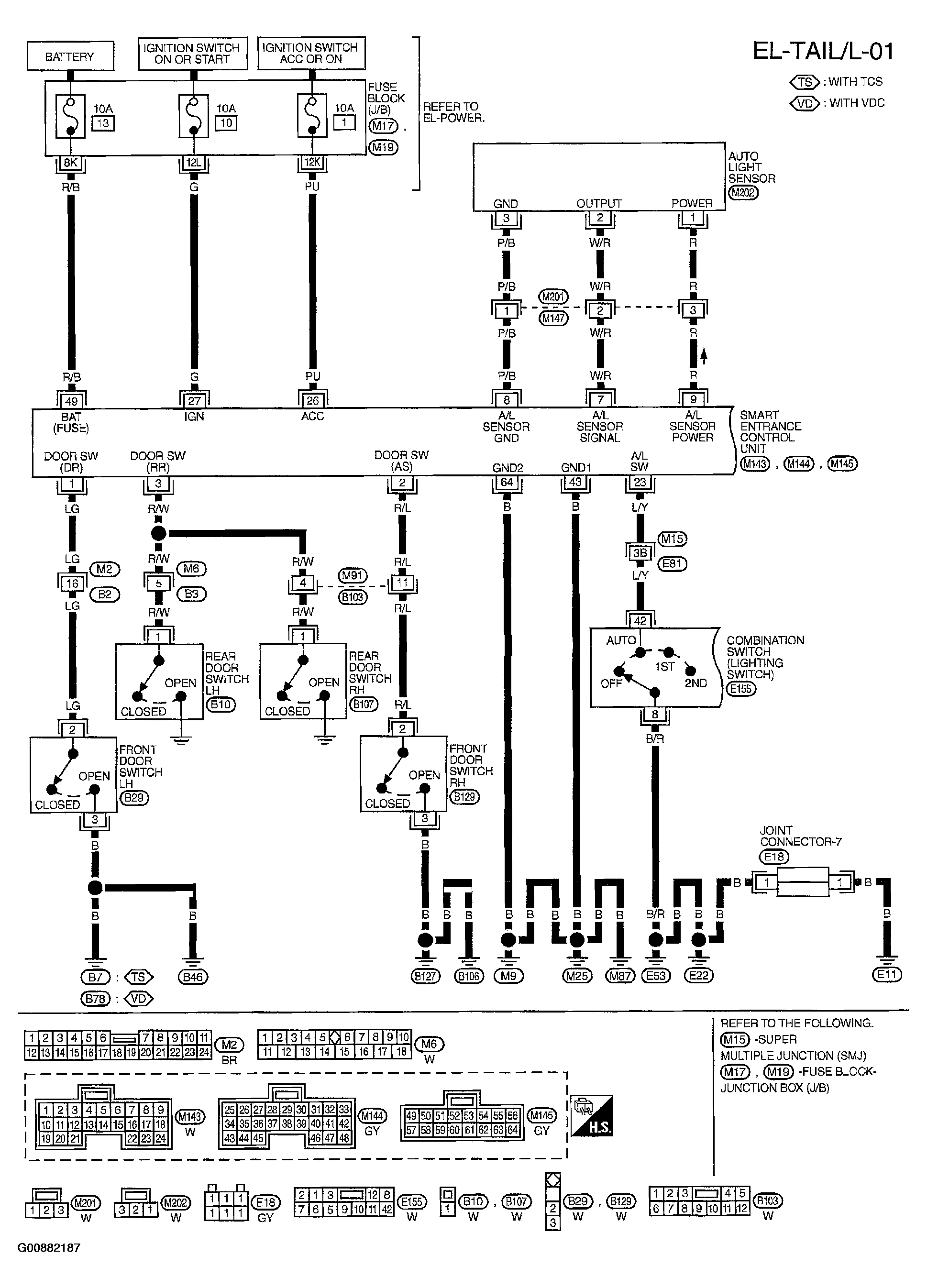

Fig 1: Wiring Diagram (1 of 4) - EL-TAIL/L-01

Courtesy of NISSAN MOTOR CO., U.S.A.

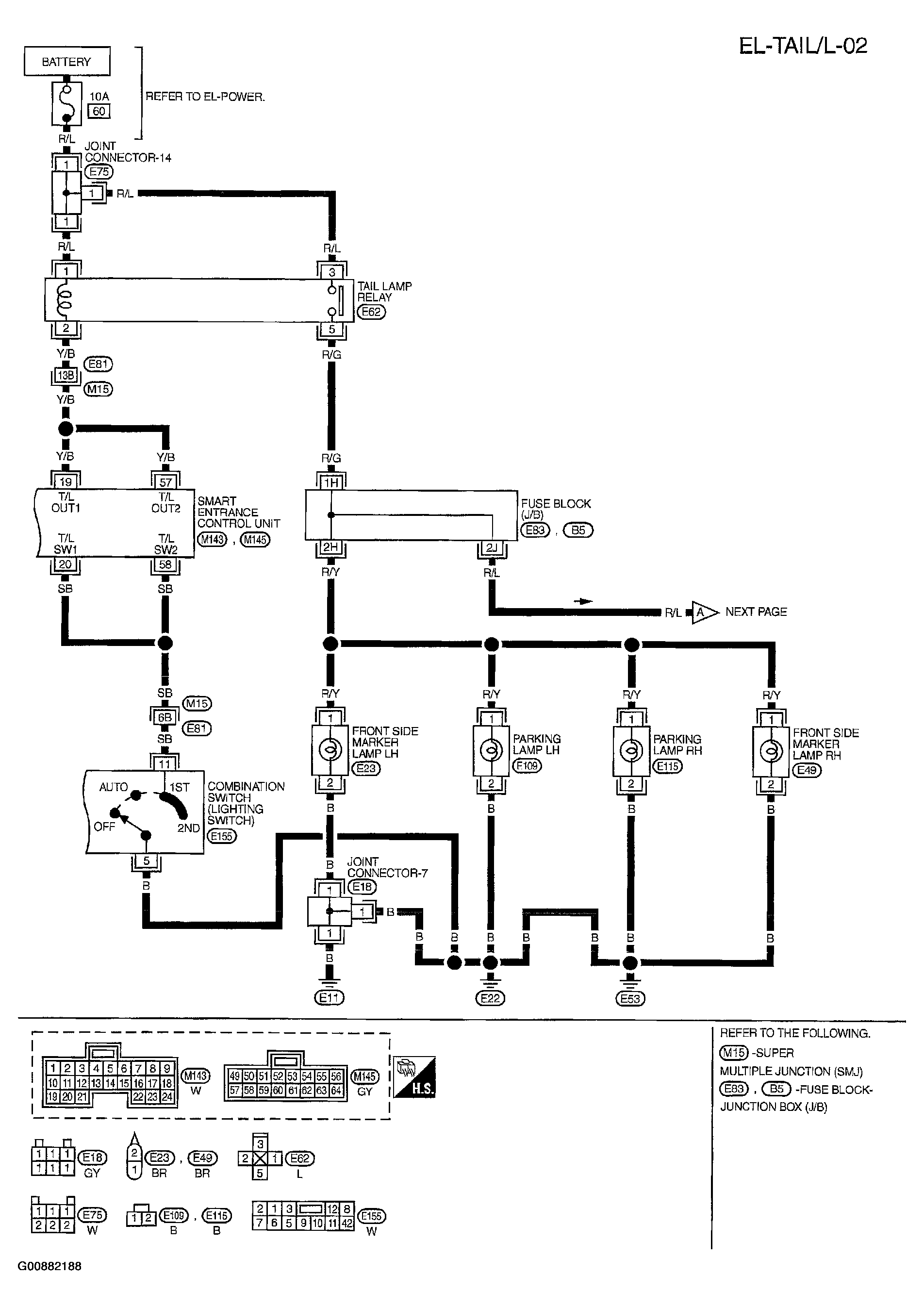

Fig 2: Wiring Diagram (2 of 4) - EL-TAIL/L-02

Courtesy of NISSAN MOTOR CO., U.S.A.

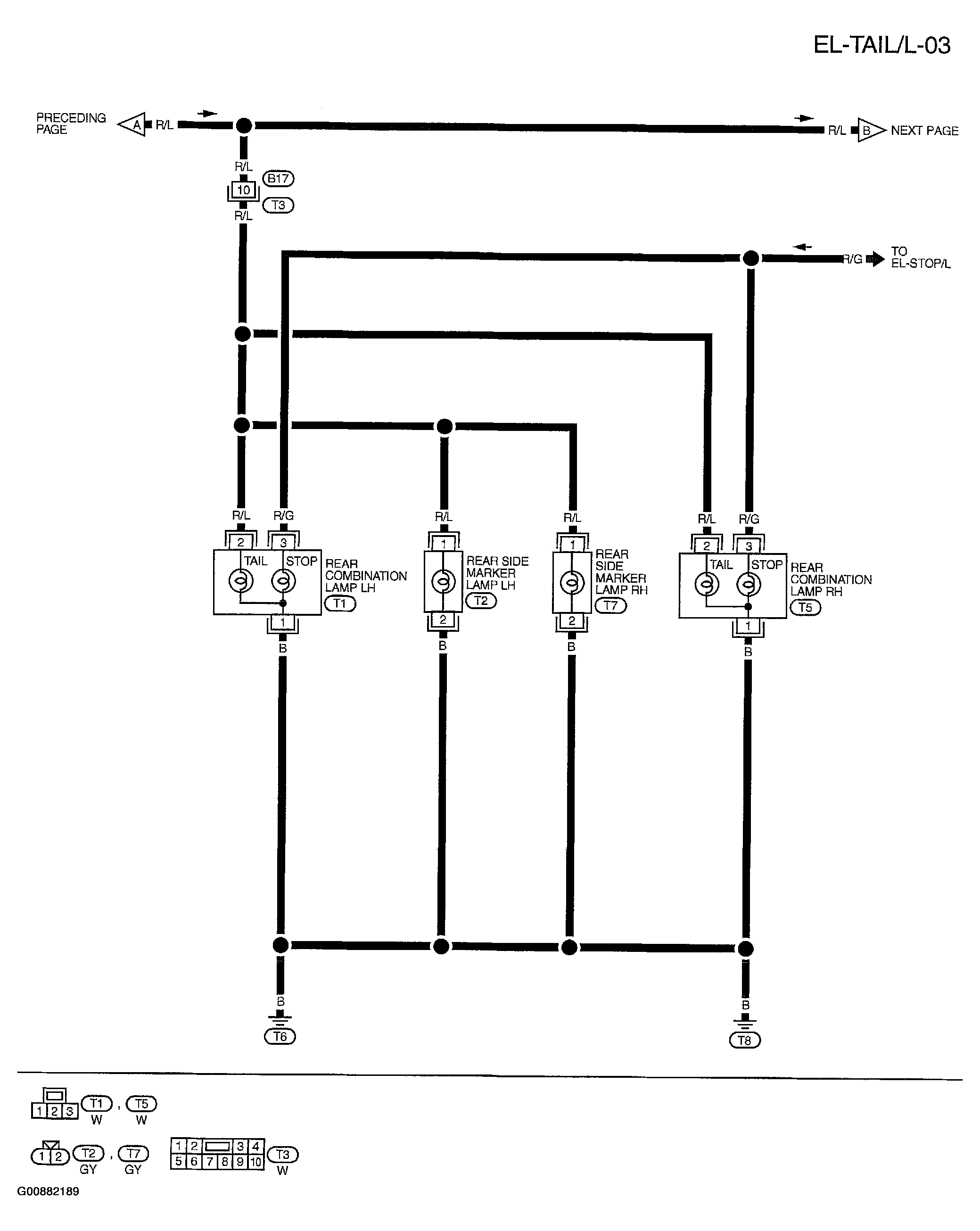

Fig 3: Wiring Diagram (3 of 4) - EL-TAIL/L-03

Courtesy of NISSAN MOTOR CO., U.S.A.

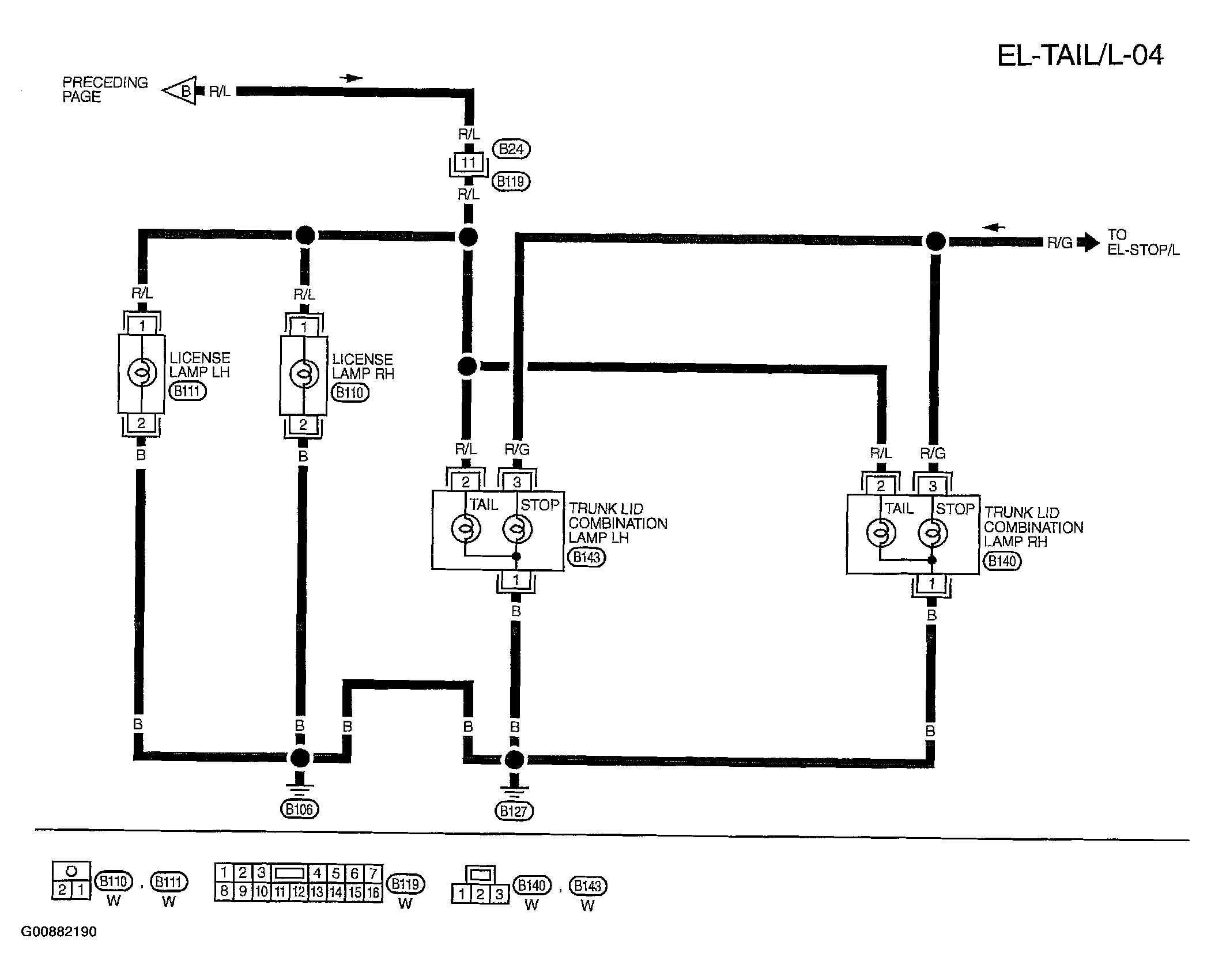

Fig 4: Wiring Diagram (4 of 4) - EL-TAIL/L-04

Courtesy of NISSAN MOTOR CO., U.S.A.

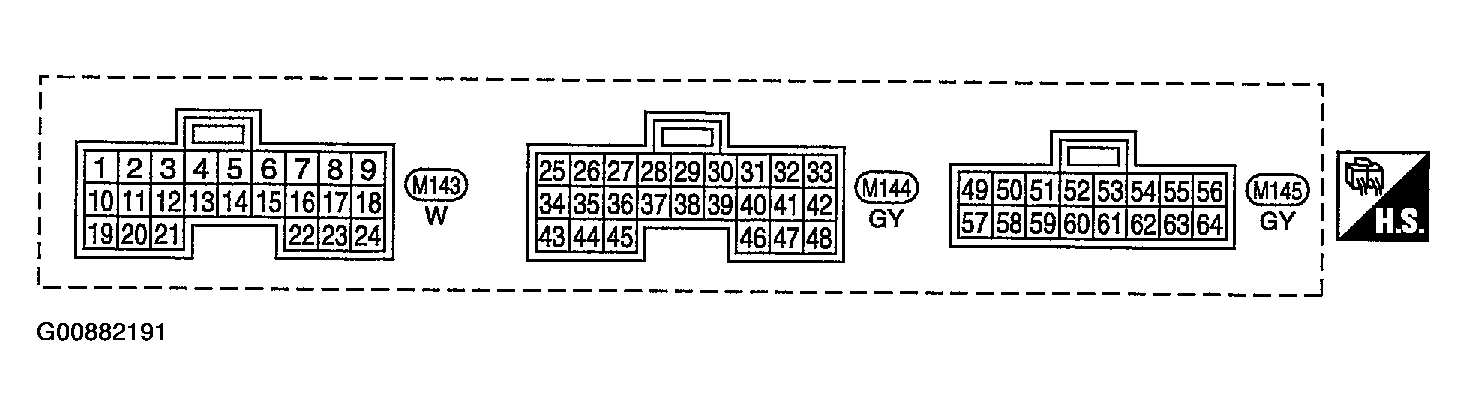

Fig 5: Identifying Smart Entrance Control Unit Connector

Courtesy of NISSAN MOTOR CO., U.S.A.

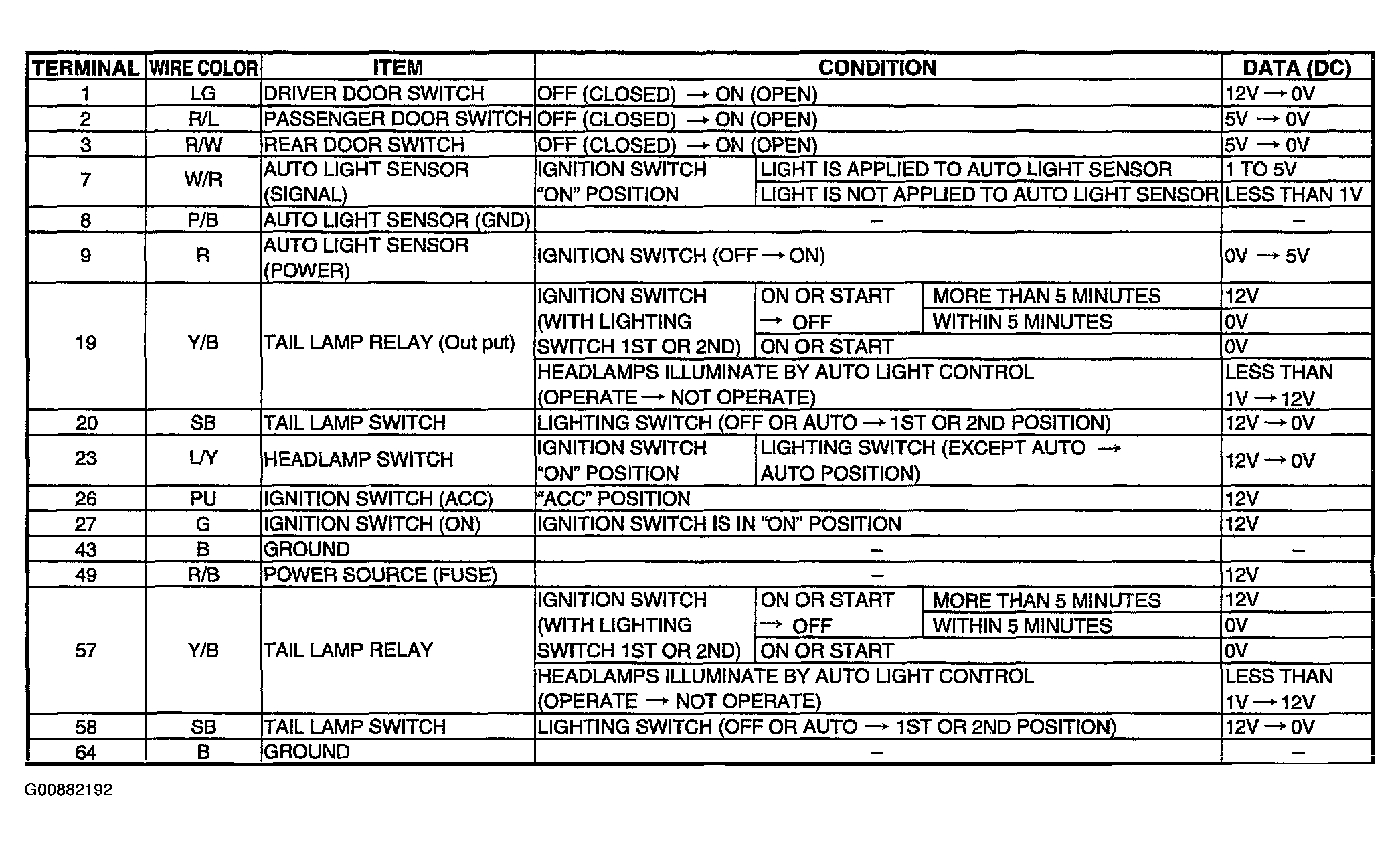

Fig 6: Identifying Smart Entrance Control Unit Terminals And Reference Value Chart

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE: For CONSULT-II Inspection Procedure, refer to "HEADLAMP (FOR U.S.A.) " .
For CONSULT-II Application Items, refer to "HEADLAMP (FOR U.S.A.) " .
