Swing Torque Inspection

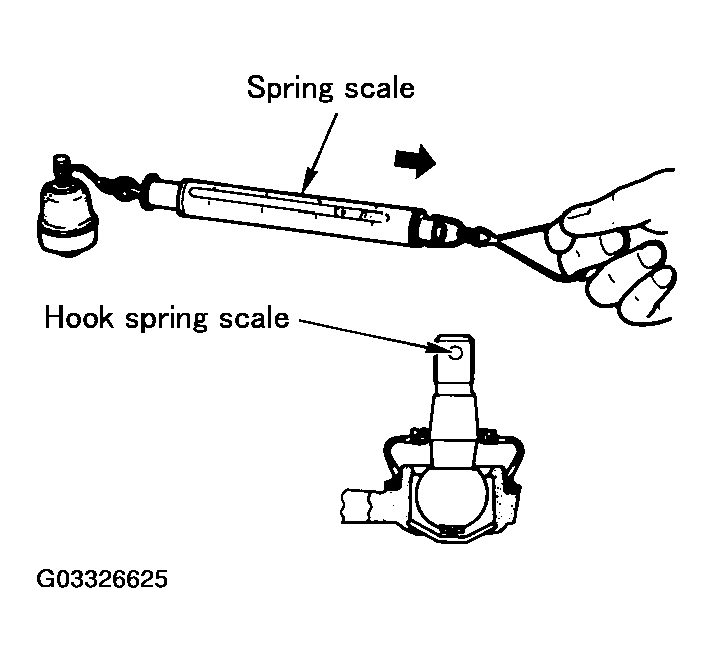

- Hook spring scale at cotter pin mounting hole. Confirm spring scale measurement value is within specifications when ball stud begins moving.
Standard value
Swing torque:
0.5 - 3.4 N.m (0.06 - 0.34 kg.m, 5 - 30 in.lb)
Measured value of spring scale:
8.06 - 54.8 N (0.82 - 5.5 kg, 1.81 - 12.32 lb)
- If it is outside the specified range, replace suspension arm assembly.
