Rotating Torque Inspection

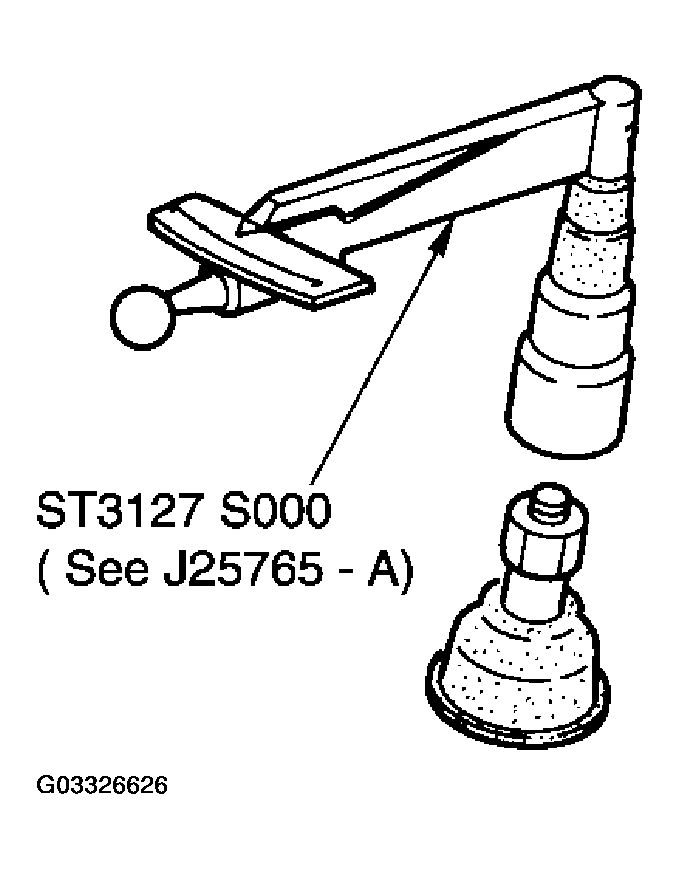

- Attach mounting nut to ball stud. Make sure that rotating torque is within the specifications with a preload gauge (SST)
Standard value
Rotating torque:
0.5 - 3.4 N.m (0.06 - 0.34 kg.m, 5 - 30 in.lb)
- If it is outside the specified range, replace suspension arm assembly.
