Inspection Of Suspension Arm Ball Joint End Play

Measure axial end play by installing and moving up/down with an iron pry bar or something similar between suspension arm and axle.
Standard value

Axial end play: 0 mm (0 in)

CAUTION: Be careful not to damage ball joint boot.

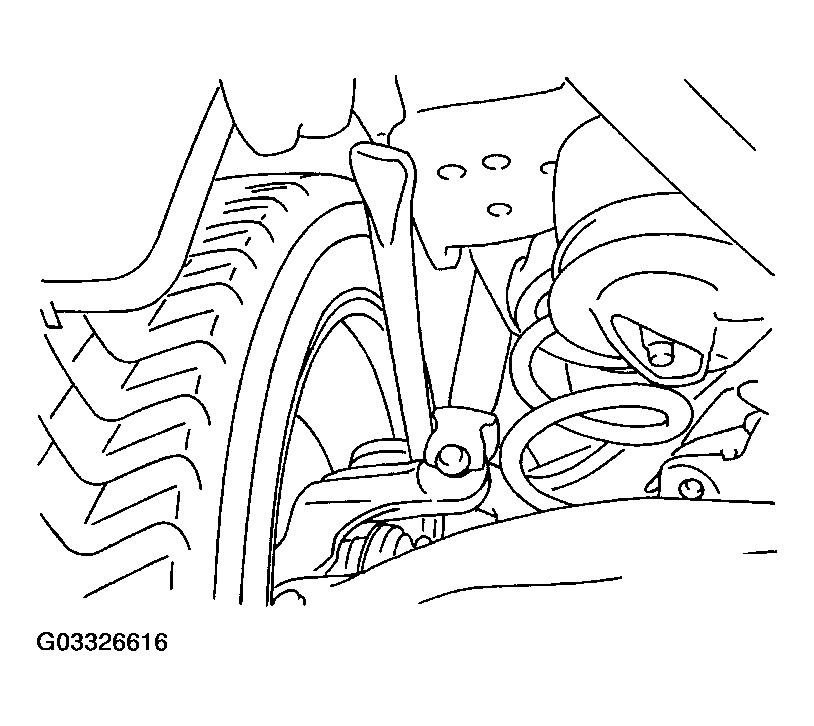

Fig 1: Installing Iron Pry Bar Between Suspension Arm & Axle
Courtesy of NISSAN MOTOR CO., U.S.A.
