Rear Suspension Assembly: Components

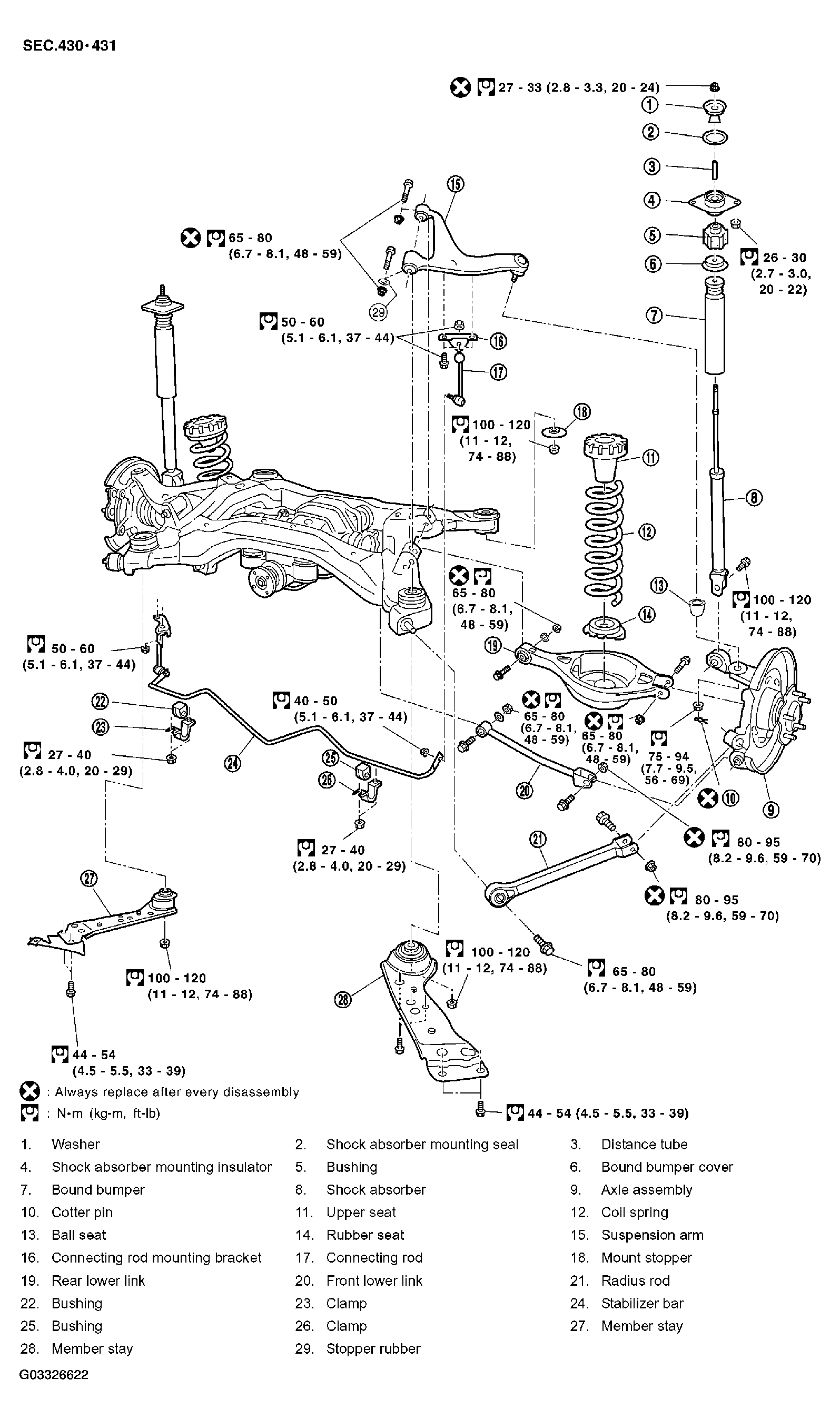

Fig 1: Exploded View Of Rear Suspension Assembly Components With Torque Specifications

G03326622

Courtesy of NISSAN MOTOR CO., U.S.A.
