Rotating Torque Inspection

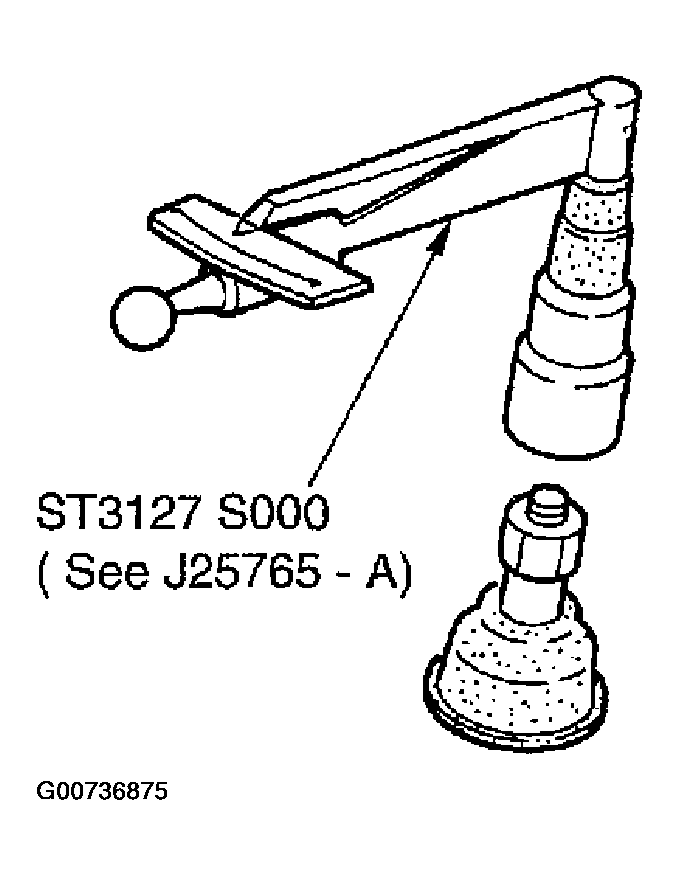

- Attach mounting nut to ball stud. Make sure that rotating torque is within the specifications with a preload gauge (SST)
- Standard value
- Rotating torque: 0.5 - 3.4 N.m (0.06 - 0.34 kg-m, 5 - 30 in-lb)
- If it is outside the specified range, replace suspension arm assembly.
