Rear Suspension Assembly: Components

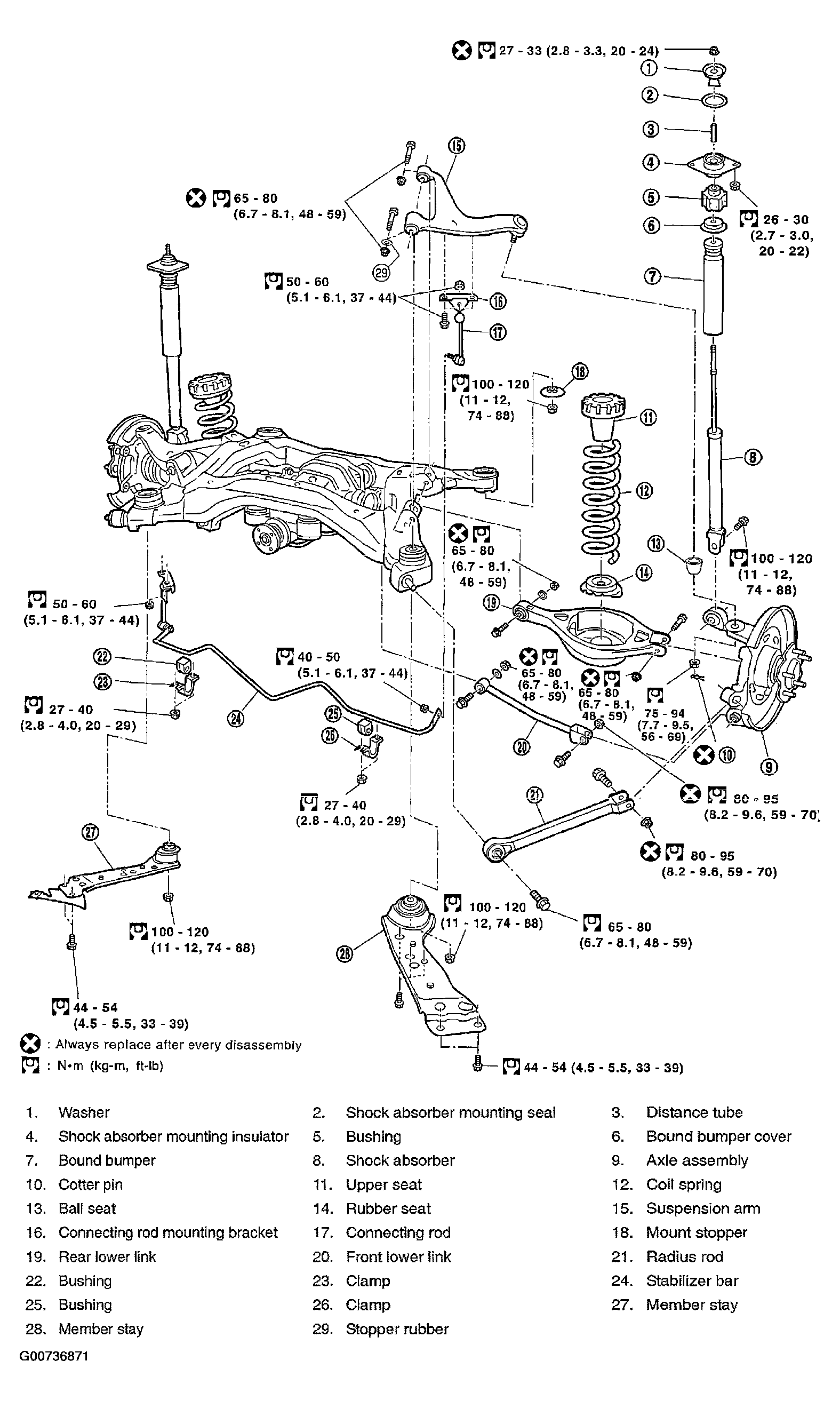

Fig 1: Exploded View Of Rear Suspension Assembly Components With Tightening Torques

G00736871

Courtesy of NISSAN MOTOR CO., U.S.A.
