Sunload Sensor

Measure voltage between display and A/C auto amp. harness connector M31 terminal 12 (LG) and ground. If NG, replace sunload sensor.

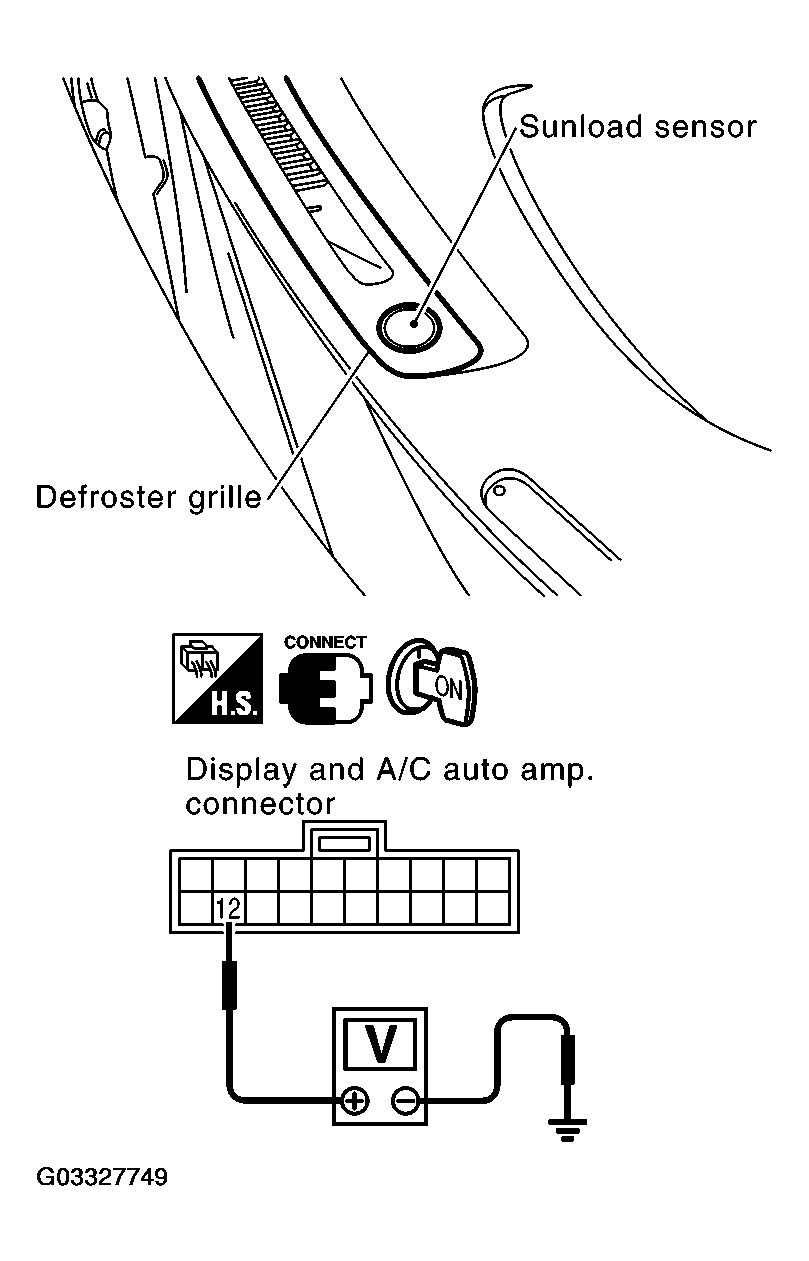

Fig 1: Measuring Voltage Between Display And A/C Auto Amp. Harness Connector M31 Terminal 12 (Lg) And Ground

Courtesy of NISSAN MOTOR CO., U.S.A.

• When checking sunload sensor, select a place where sun shines directly on it.

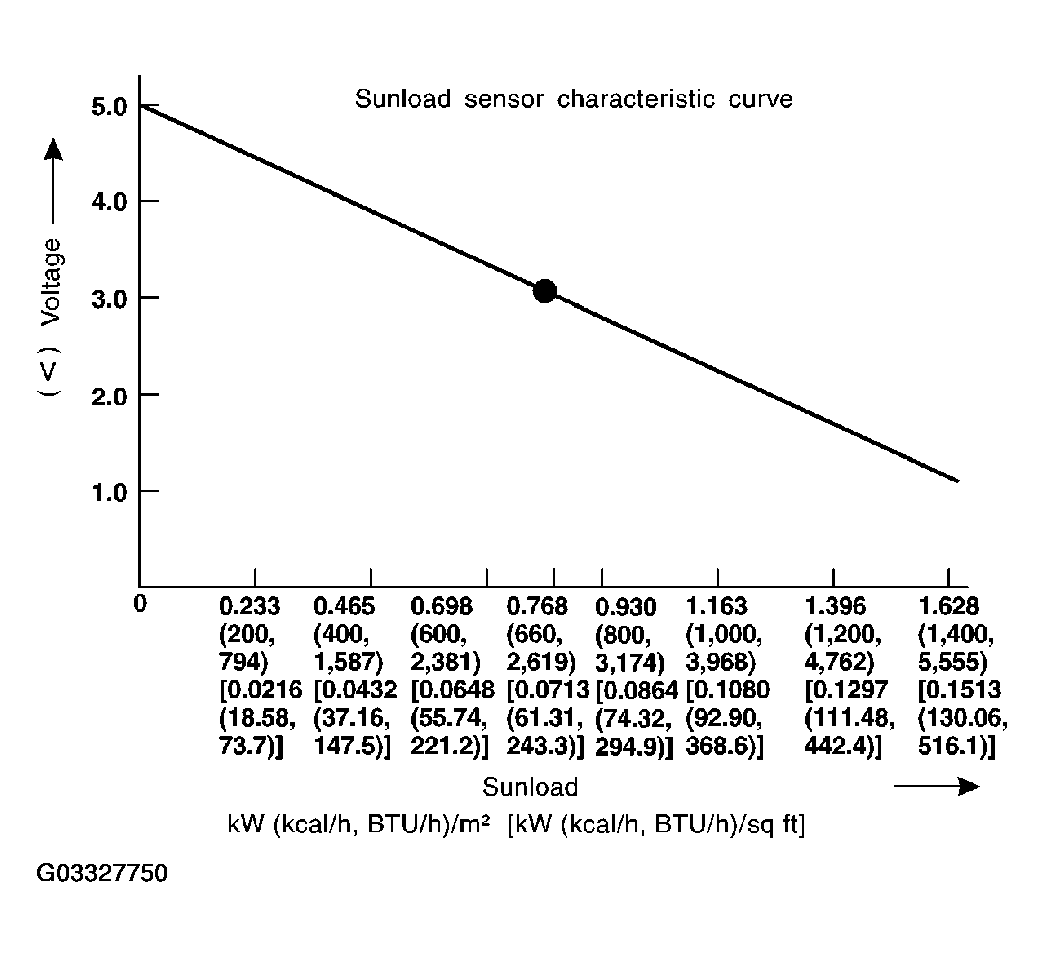

  Fig 2: Sunload Sensor Curving Graph

  Courtesy of NISSAN MOTOR CO., U.S.A.
