Intake Sensor

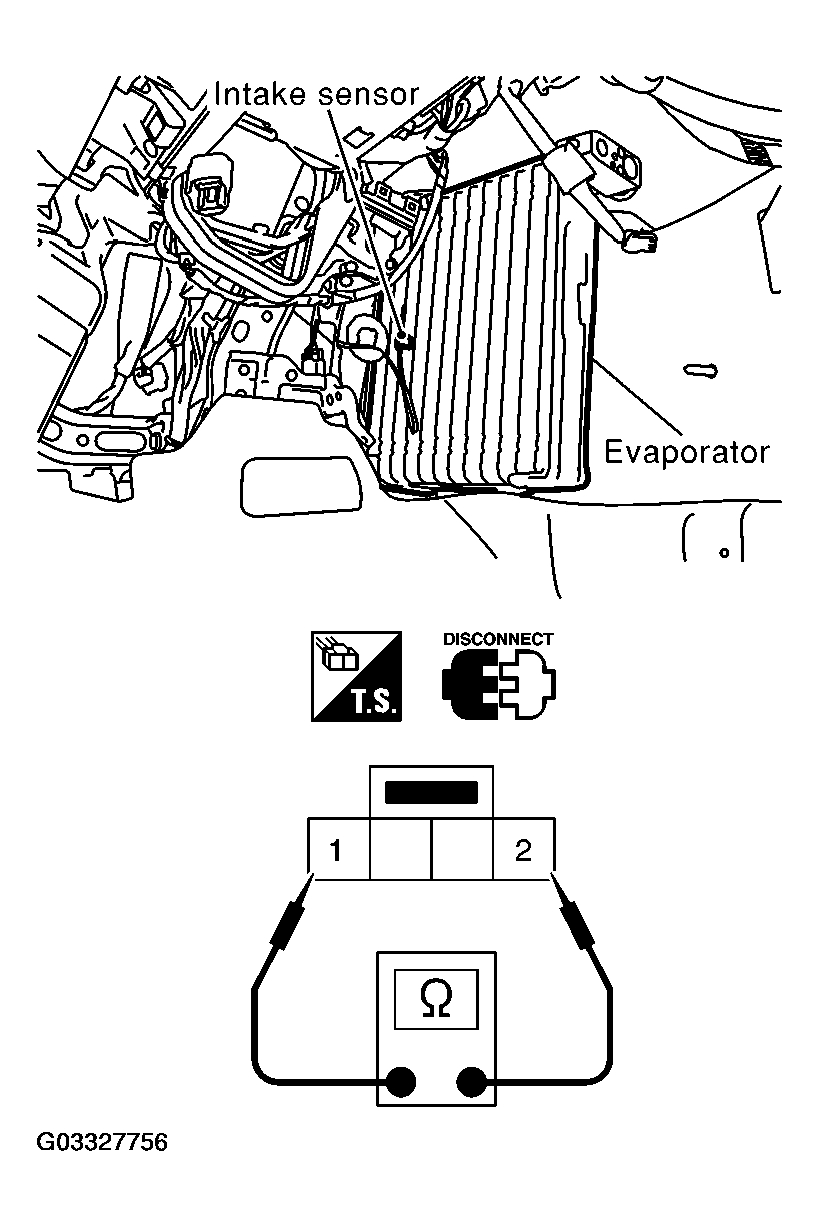

After disconnecting intake sensor connector M61, measure resistance between terminals 1 and 2 at sensor side, using the table below.
RESISTANCE SPECIFICATION
| Temperature °C (°F) | Resistance kΩ |
|---|---|
| -15 (5) | 12.34 |
| -10 (14) | 9.62 |
| -5 (23) | 7.56 |
| 0 (32) | 6.00 |
| 5 (41) | 4.80 |
| 10 (50) | 3.87 |
| 15 (59) | 3.15 |
| 20 (68) | 2.57 |
| 25 (77) | 2.12 |
| 30 (86) | 1.76 |
| 35 (95) | 1.47 |
| 40 (104) | 1.23 |
| 45 (113) | 1.04 |
If NG, replace intake sensor.
