Removal Of Side Ventilator Grille

  1. Remove center box assembly. Refer to "REMOVAL AND INSTALLATION ".
  2. Remove mounting screw and clips, and then remove side ventilator grille (passenger side).
  3. Remove instrument lower driver panel. Refer to "REMOVAL AND INSTALLATION ".
  4. Remove side ventilator grille (driver side).

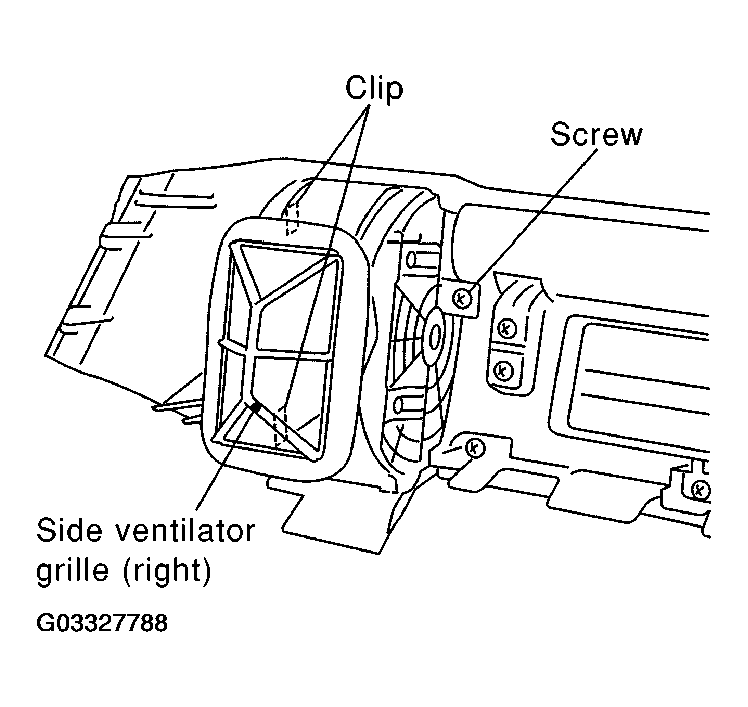

    Fig 1: Removing Side Ventilator Grille
    G03327788Courtesy of NISSAN MOTOR CO., U.S.A.
