Removal Of Center Ventilator Grille

  1. Remove cluster lid C. Refer to "REMOVAL AND INSTALLATION ".
  2. Remove instrument pocket. (Without navigation system)
  3. Remove display unit. (With navigation system)
  4. Remove mounting clips, and then remove center ventilator grille.

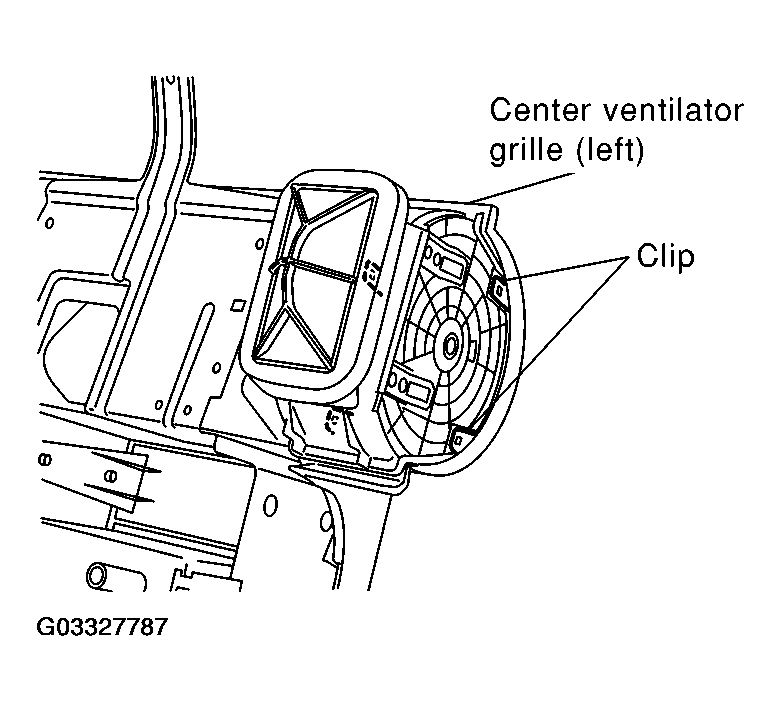

    Fig 1: Removing Center Ventilator Grille
    G03327787Courtesy of NISSAN MOTOR CO., U.S.A.
