2004.5 - Illumination - Sedan: Illumination: Schematic

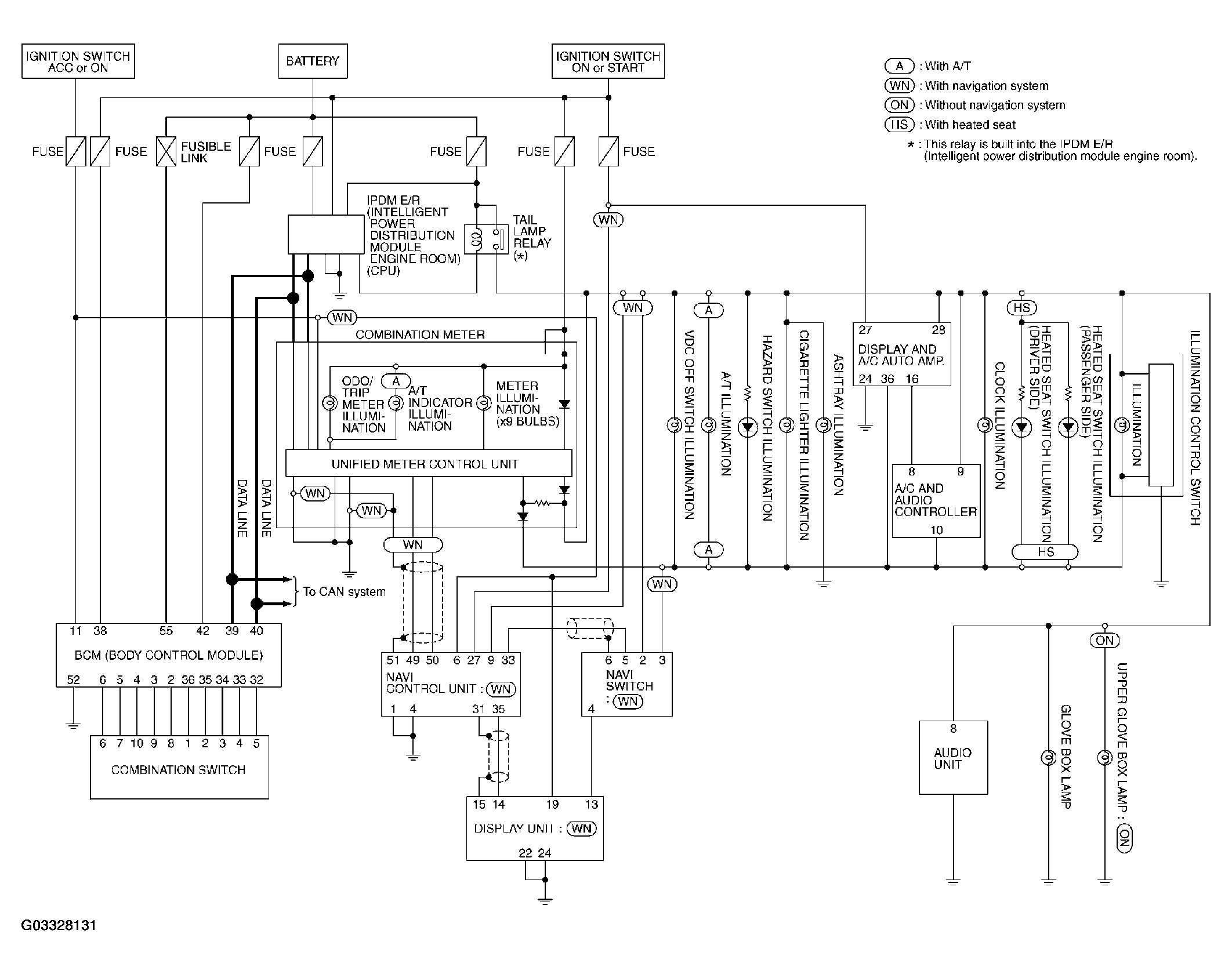

Fig 1: Identifying Illumination Schematic

G03328131

Courtesy of NISSAN MOTOR CO., U.S.A.
