Bulb Replacement, Removal and Installation (M/T)

  1. Remove console boot. Refer to "INSTRUMENT PANEL ASSEMBLY ".
  2. Turn bulb socket counterclockwise to undo lock and remove bulb socket.

    Ashtray illumination: 12V - 1.4W

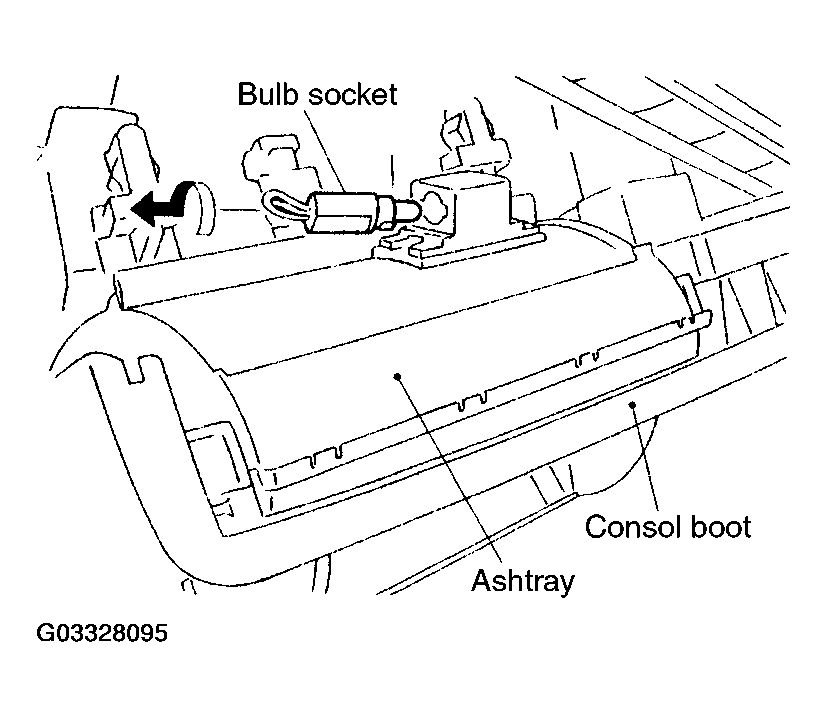

    Fig 1: Removing Ashtray Bulb (M/T)
    G03328095Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Install in the reverse order of removal.
