Bulb Replacement, Removal and Installation (A/T)

  1. Remove console finisher (A/T). Refer to "INSTRUMENT PANEL ASSEMBLY ".
  2. Remove instrument panel ashtray. Refer to "INSTRUMENT PANEL ASSEMBLY ".
  3. Use a screwdriver to undo ashtray finisher hooks.
  4. Turn bulb socket on circuit board to left to undo lock. Remove bulb socket.

    Ashtray illumination: 12V - 1.4W

  5. Install in the reverse order of removal.

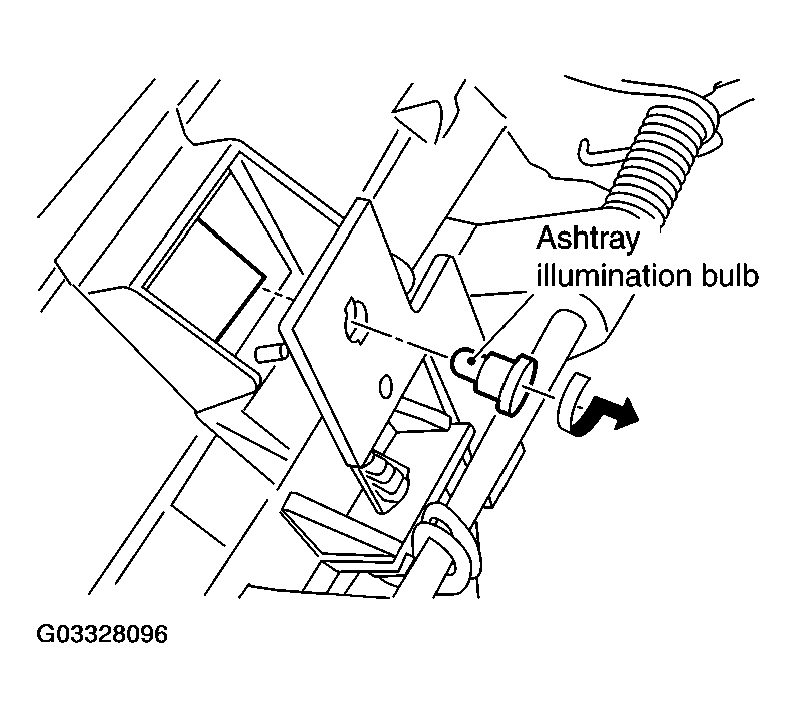

    Fig 1: Turning Ashtray Bulb to Left
    G03328096Courtesy of NISSAN MOTOR CO., U.S.A.

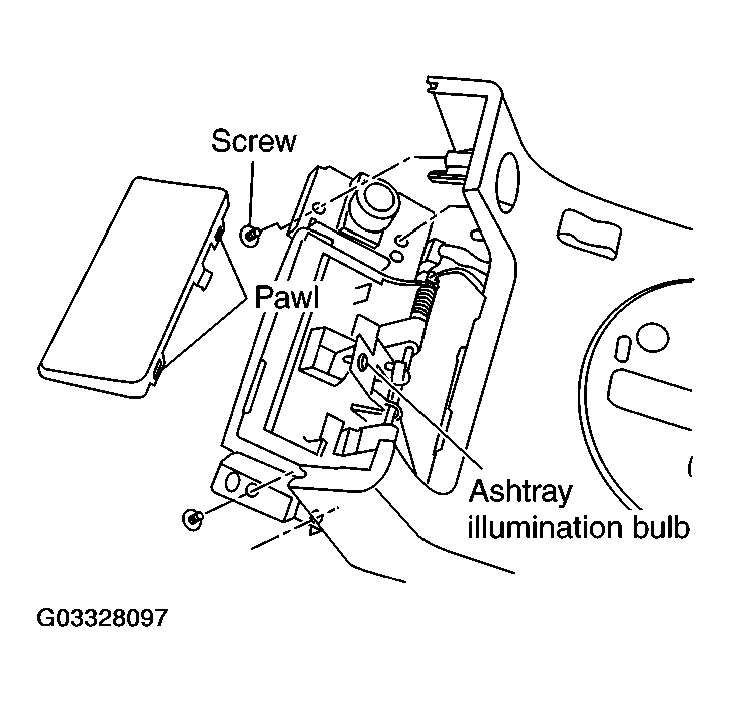

    Fig 2: Removing Ashtray Bulb (A/T)
    G03328097Courtesy of NISSAN MOTOR CO., U.S.A.
