Home >> Infiniti >> 2004 >> G35 x >> Repair and Diagnosis >> Accessories & Equipment >> Interior/Illumination Lights >> 2004 - Illumination - Sedan >> Illumination >> Schematic

2004 - Illumination - Sedan: Illumination: Schematic

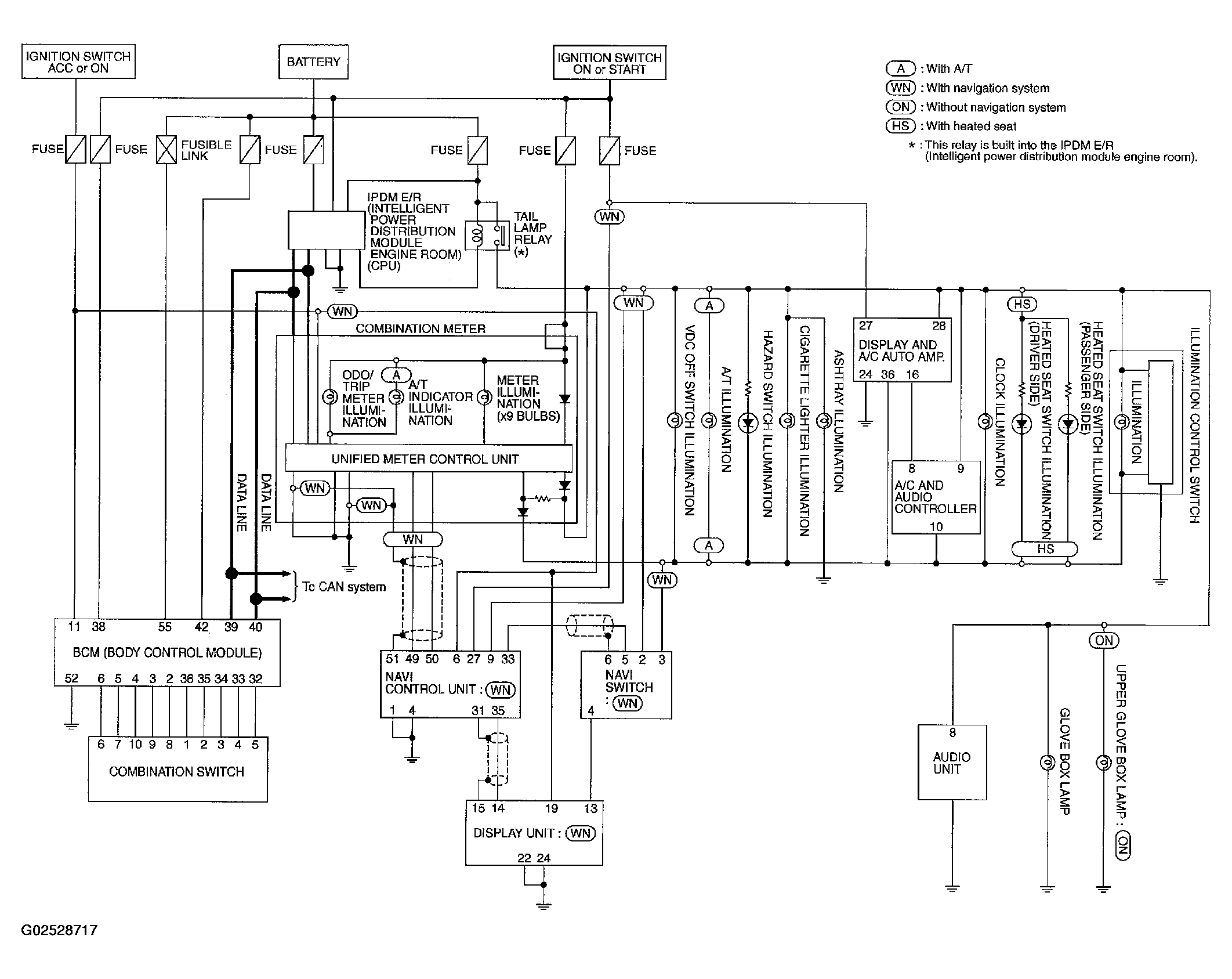

Fig 1: Schematic

G02528717

Courtesy of NISSAN MOTOR CO., U.S.A.
