Removal and Installation

  1. Remove instrument lower passenger panel. Refer to INSTRUMENT PANEL ASSEMBLY .
  2. Turn bulb socket left to release lock and remove it.
    1. Glove box lamp: 12V - 1.4W

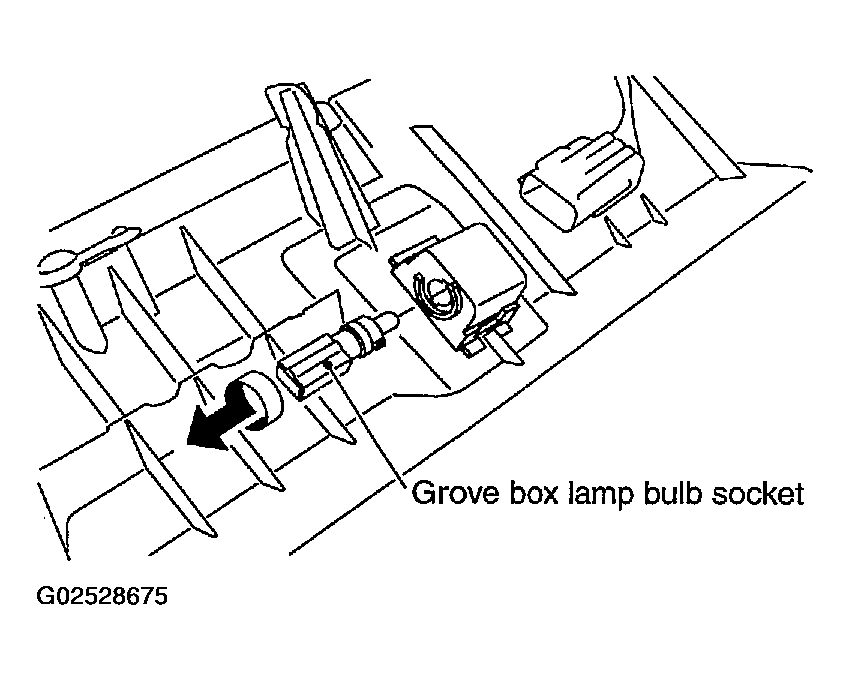

    Fig 1: Turning Bulb Socket Left To Release Lock
    G02528675Courtesy of NISSAN MOTOR CO., U.S.A.
