Bulb Replacement, Removal and Installation (M/T)

  1. Remove console boot. Refer to console boot under REMOVAL .
  2. Turn bulb socket counterclockwise to undo lock and remove bulb socket.
    1. Ashtray illumination: 12V - 1.4W
  3. Install in the reverse order of removal.

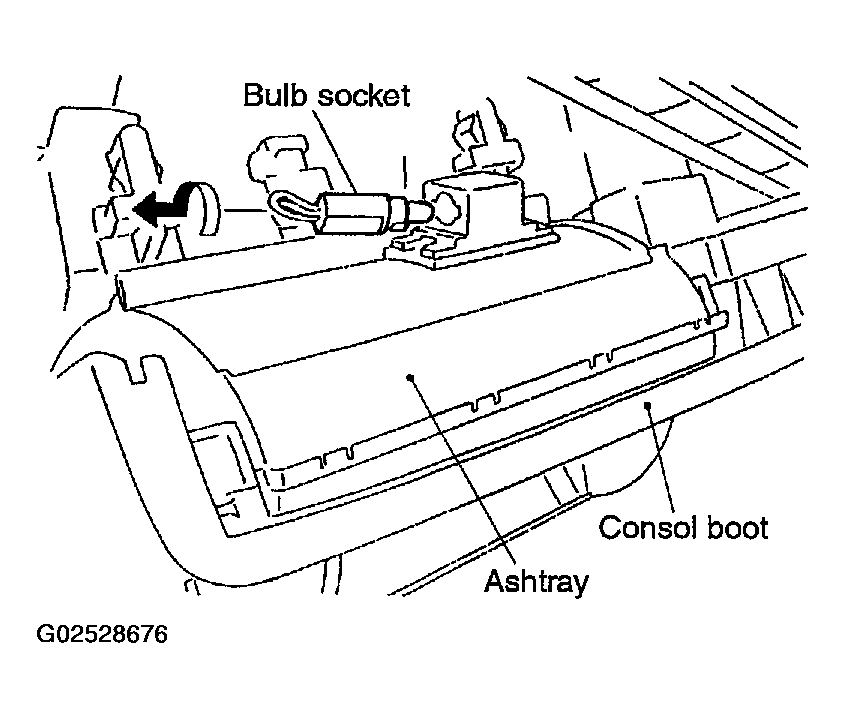

    Fig 1: Turning Bulb Socket Counterclockwise To Undo Lock
    G02528676Courtesy of NISSAN MOTOR CO., U.S.A.
