Removal and Installation of NAVI Control Unit

  1. Remove center box assembly. Refer to INSTRUMENT PANEL ASSEMBLY .
  2. Remove screws (4), and remove NAVI control unit.

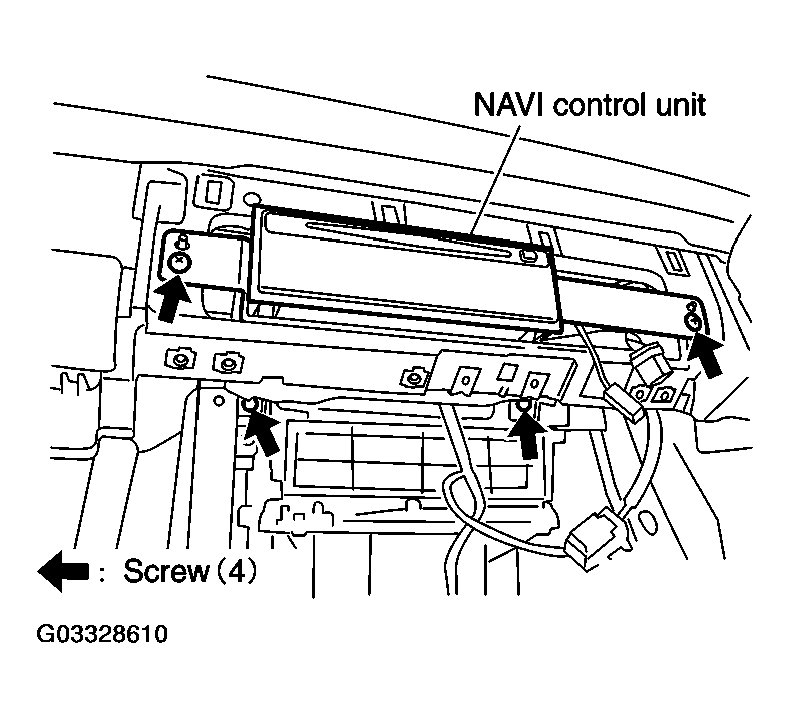

    Fig 1: Removing Screws And NAVI Control Unit
    G03328610Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Remove screws (4), and remove bracket.
    Fig 2: Removing Bracket And Screw
    G03328611Courtesy of NISSAN MOTOR CO., U.S.A.
