Removal and Installation of Audio Unit

Perform damper lock operation. Refer to LOCKING CD AUTO-CHANGER MECHANISM .
Remove cluster lid C. Refer to INSTRUMENT PANEL ASSEMBLY .
Unlock FPC (Flexible Print Circuit) connector lock on A/C and audio controller side.
Pull off flexible printed circuit from connector.

Fig 1: Pulling Off Flexible Printed Circuit From Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove screws (top: 2).

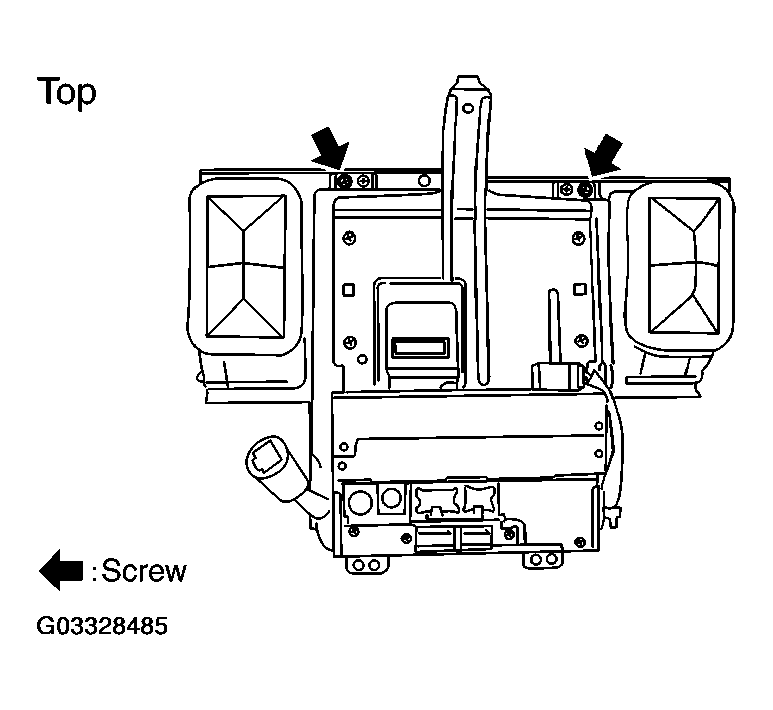

Fig 2: Removing Screws (Top)
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove screws (bottom: 4). Remove audio unit and display unit assembly (with navigation system) from cluster lid C.

Fig 3: Removing Screws (Bottom)
Courtesy of NISSAN MOTOR CO., U.S.A.
Separate audio unit from display unit assembly (with navigation system).

Fig 4: Separating Audio Unit From Display Unit Assembly (With Navigation System)
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove 8 screws, and then bracket.
CAUTION:
- When carrying audio unit body, do not touch internal mechanism access from cassette tape slot.
- Be careful not to allow foreign material to enter from cassette tape slot.
- Removal and Installation of A/C and Audio Controller.

  Fig 5: Removing Screws And Bracket
  Courtesy of NISSAN MOTOR CO., U.S.A.
