Disassembly and Assembly of A/C and Audio Controller

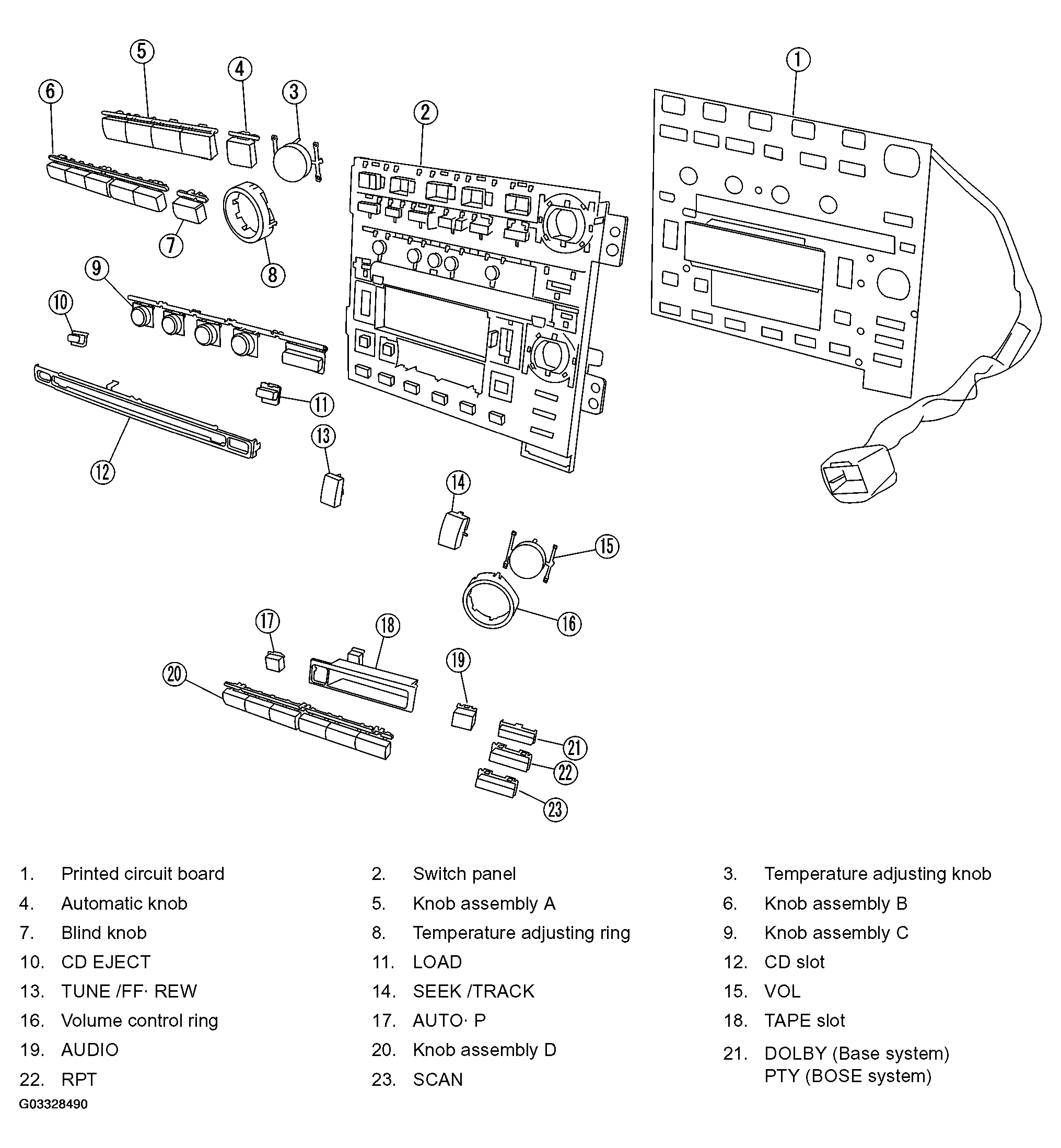

Fig 1: Exploded View Of A/C And Audio Controller

Courtesy of NISSAN MOTOR CO., U.S.A.

1. Printed circuit board
2. Switch panel
3. Temperature adjusting knob
4. Automatic knob
5. Knob assembly A
6. Knob assembly B
7. Blind knob
8. Temperature adjusting ring
9. Knob assembly C
10. CD EJECT
11. LOAD
12. CD slot
13. TUNE/FF. REW
14. SEEK/TRACK
15. VOL
16. Volume control ring
17. AUTO. P
18. TAPE slot
19. AUDIO
20. Knob assembly D
21. DOLBY (Base system) PTY (BOSE system)
22. RPT
23. SCAN

1. Remove screws (12), and remove printed circuit board.
   CAUTION:

   • Be sure not to damage printed circuit board by exposure.

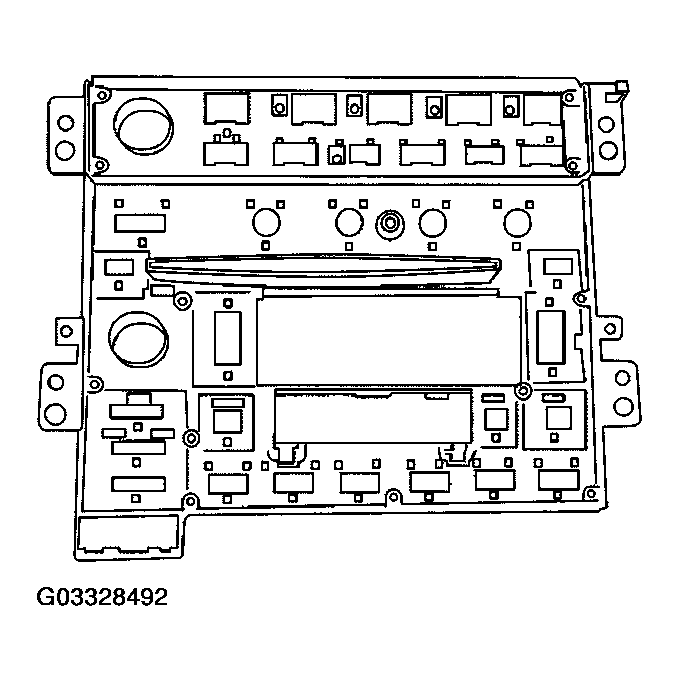

     Fig 2: Removing Screws And Printed Circuit Board

     Courtesy of NISSAN MOTOR CO., U.S.A.
2. Remove switches from back surface of switch panel using.
   Fig 3: Removing Switches From Back Surface Of Switch Panel

   Courtesy of NISSAN MOTOR CO., U.S.A.
