Removal And Installation

  1. Remove headlamps. Refer to "REMOVAL AND INSTALLATION ".
  2. Cut damaged section of installation part, then shape with sandpaper.
  3. Attach each correction bracket to headlamp housing boss with 2 screws.

    RH headlamp Outer side 26040 AL510

    Inner side 26040 AL500

    LH headlamp Outer side 26040 AL510

    Inner side 26090 AL500

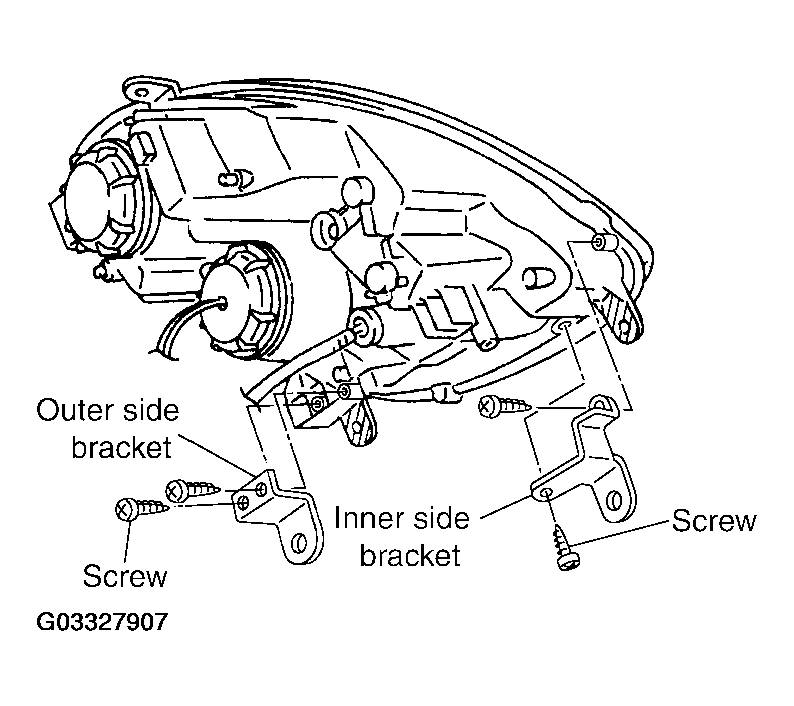

    Fig 1: Removing Headlamps
    G03327907Courtesy of NISSAN MOTOR CO., U.S.A.
