Terminals and Reference Values for BCM

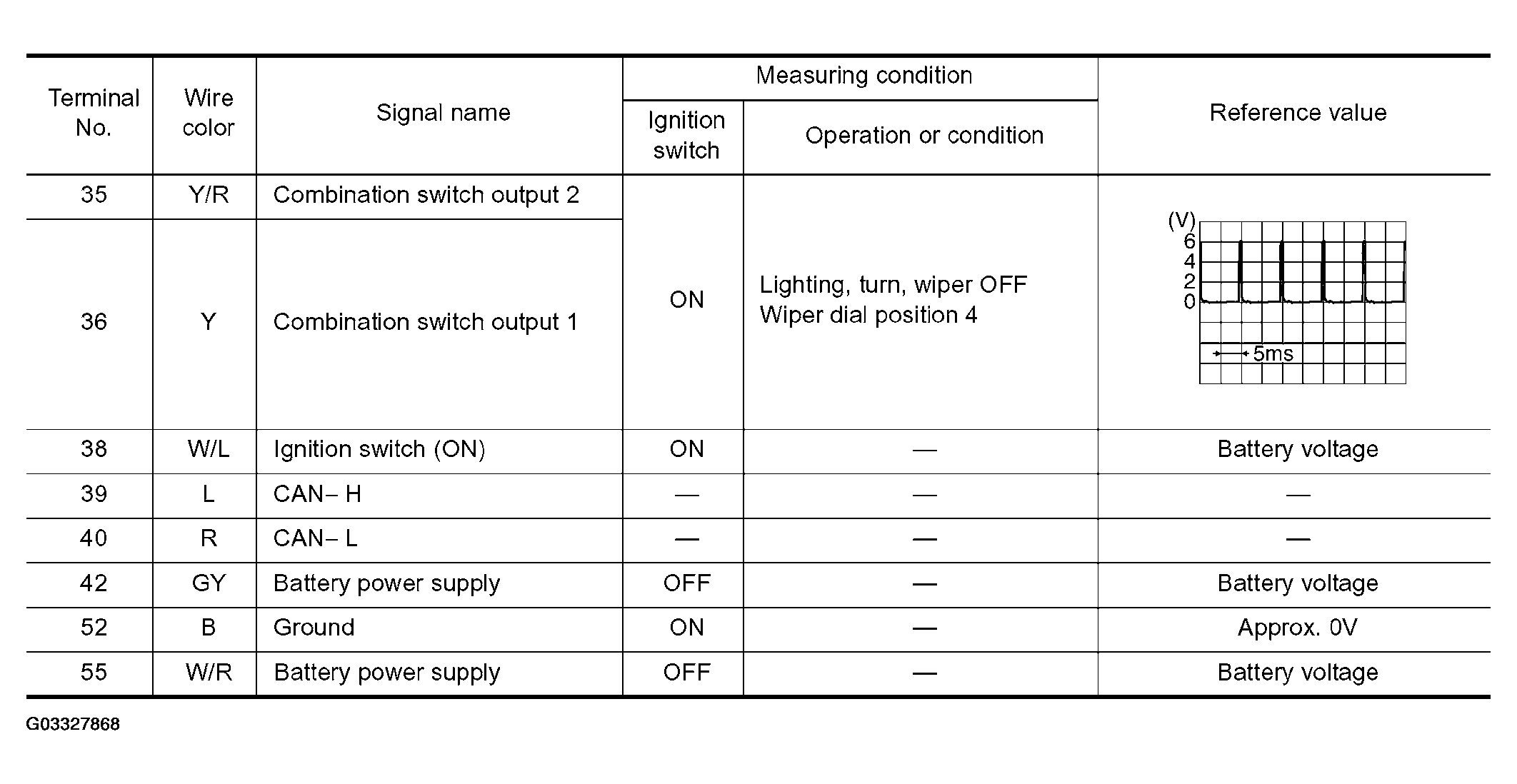

Fig 1: Terminals And Reference Values For BCM Specification (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

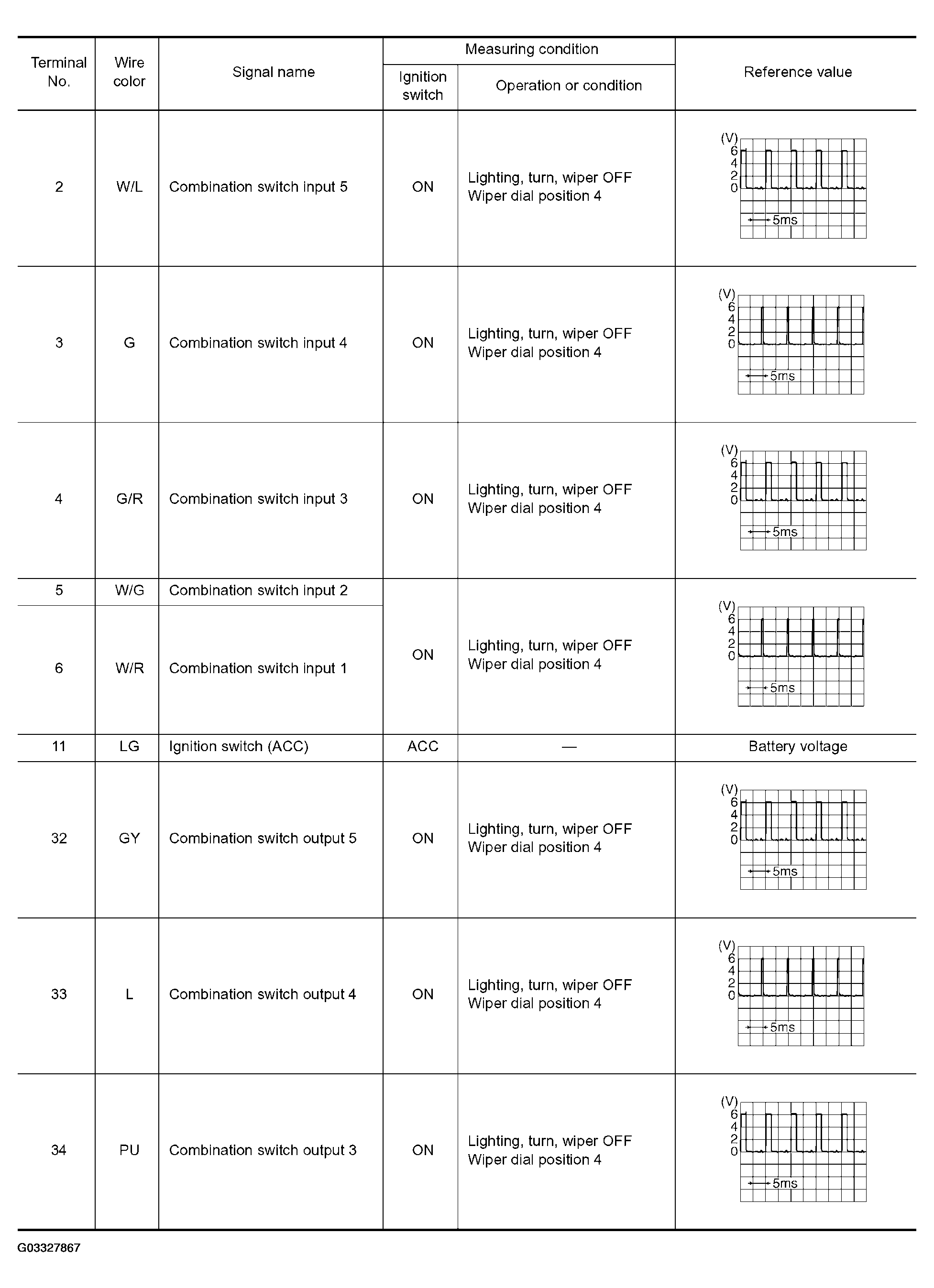

Fig 2: Terminals and Reference Values for BCM specification (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
