Headlamp (For USA): Schematic

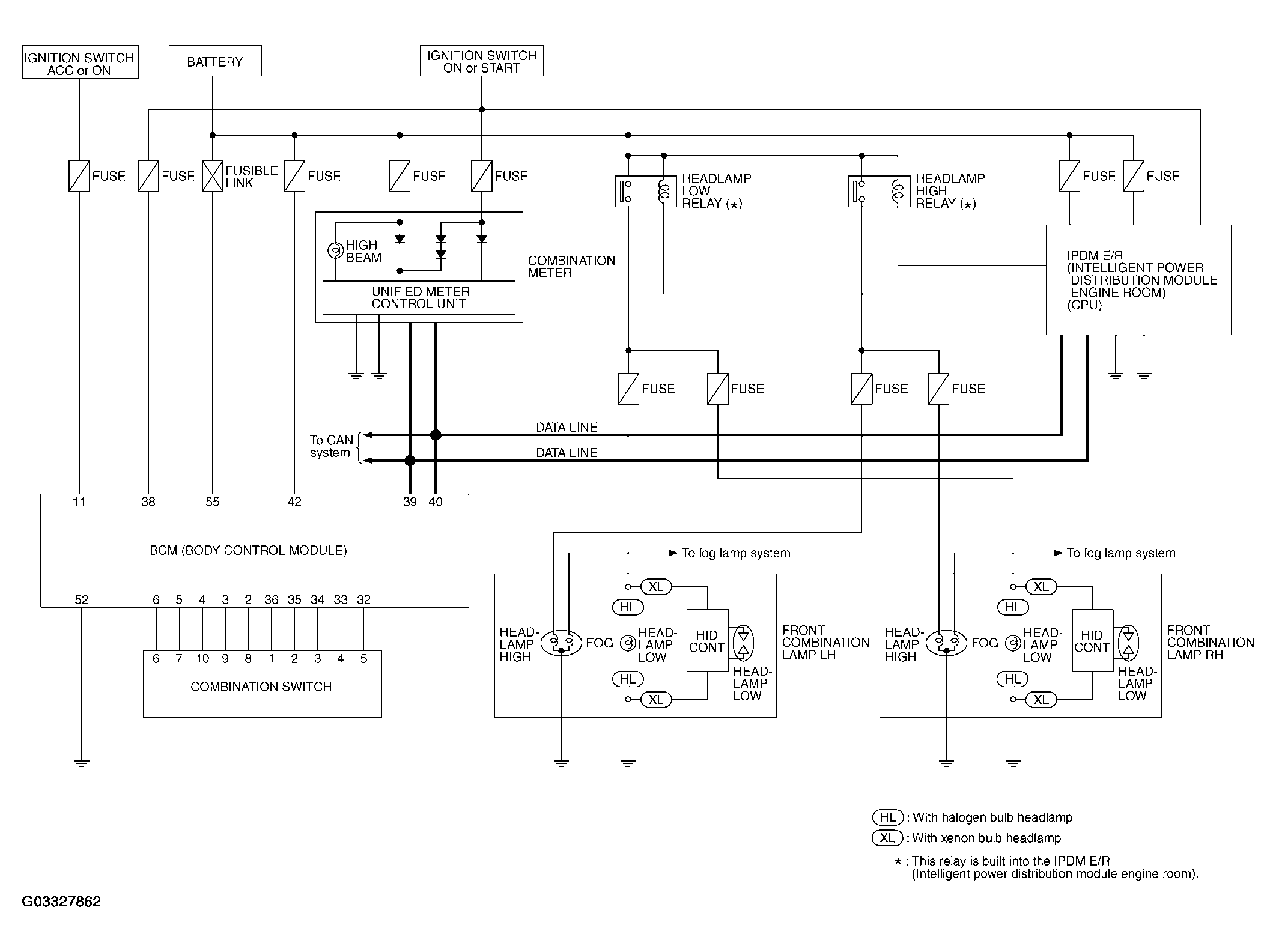

Fig 1: Headlamp Schematic

G03327862

Courtesy of NISSAN MOTOR CO., U.S.A.
