Headlamps Do Not Turn OFF

Make sure that lighting switch is OFF. And make sure is headlamp turns off when ignition switch is turned OFF.

OK or NG

1. OK: GO TO  3.
2. NG: GO TO 2.

Select "BCM" on CONSULT-II. With "HEAD LAMP" data monitor, make sure "HEAD LAMP SW 1" and "HEAD LAMP SW 2" turns ON-OFF linked with operation of lighting switch.

When lighting switch is except HEADLAMP position: HEAD LAMP SW 1 OFF

: HEAD LAMP SW 2 OFF

When lighting switch is HEADLAMP position: HEAD LAMP SW 1 ON

: HEAD LAMP SW 2 ON

OK or NG

1. OK: Replace IPDM E/R.
2. NG: Check lighting switch. Refer to "COMBINATION SWITCH INSPECTION ".

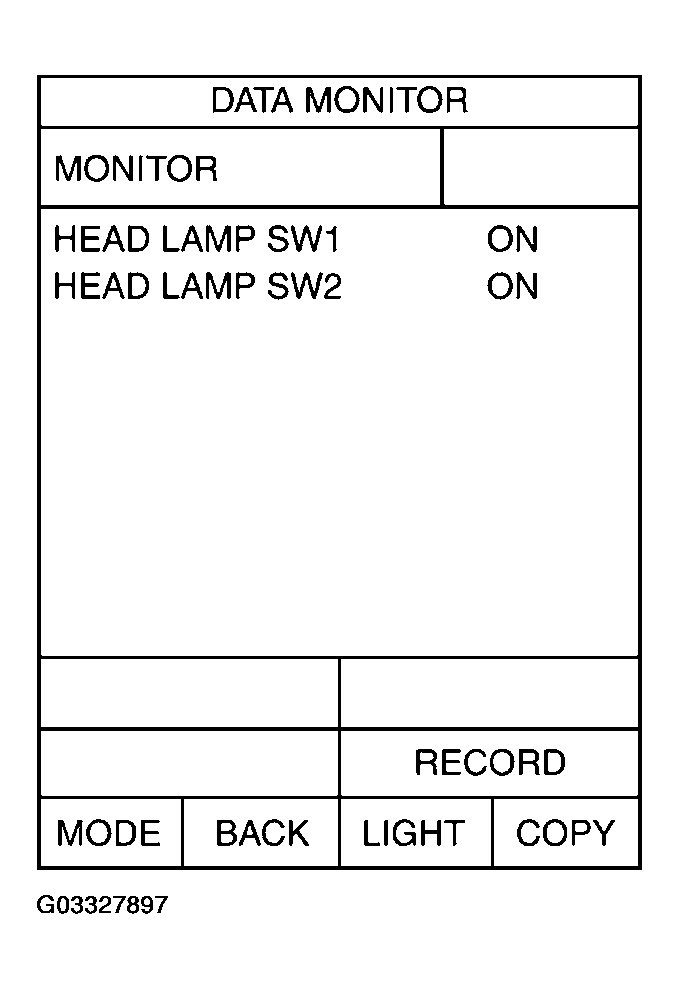

   Fig 1: Displaying DATA MONITOR Chart

   Courtesy of NISSAN MOTOR CO., U.S.A.

Select "BCM" on CONSULT-II, and perform self-diagnosis for "BCM".

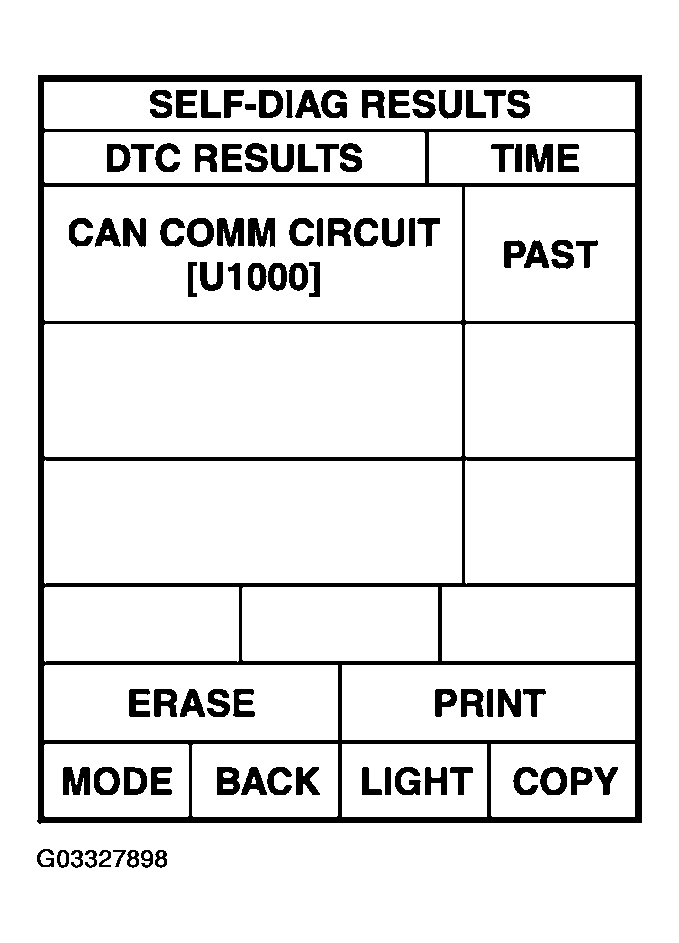

Display of self-diagnosis results

1. NO DTC: Replace IPDM E/R.
2. CAN COMM CIRCUIT: Refer to "CAN COMMUNICATION INSPECTION USING CONSULT-II (SELF-DIAGNOSIS) ".
