Consult-II Operation

CAUTION: If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be detected in self-diagnosis depending on control unit which carry out CAN communication.

With ignition switch OFF, connect CONSULT-II and CON-SULTII CONVERTER to data link connector, then turn ignition switch ON.

Fig 1: Identifying Hood Opener Handle & Data Link Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "START (NISSAN BASED VHCL)".

Fig 2: Displaying CONSULT II Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "IPDM E/R" on "SELECT SYSTEM" screen.
If "IPDM E/R" is not displayed, print "SELECT SYSTEM" screen, then refer to "CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT ".

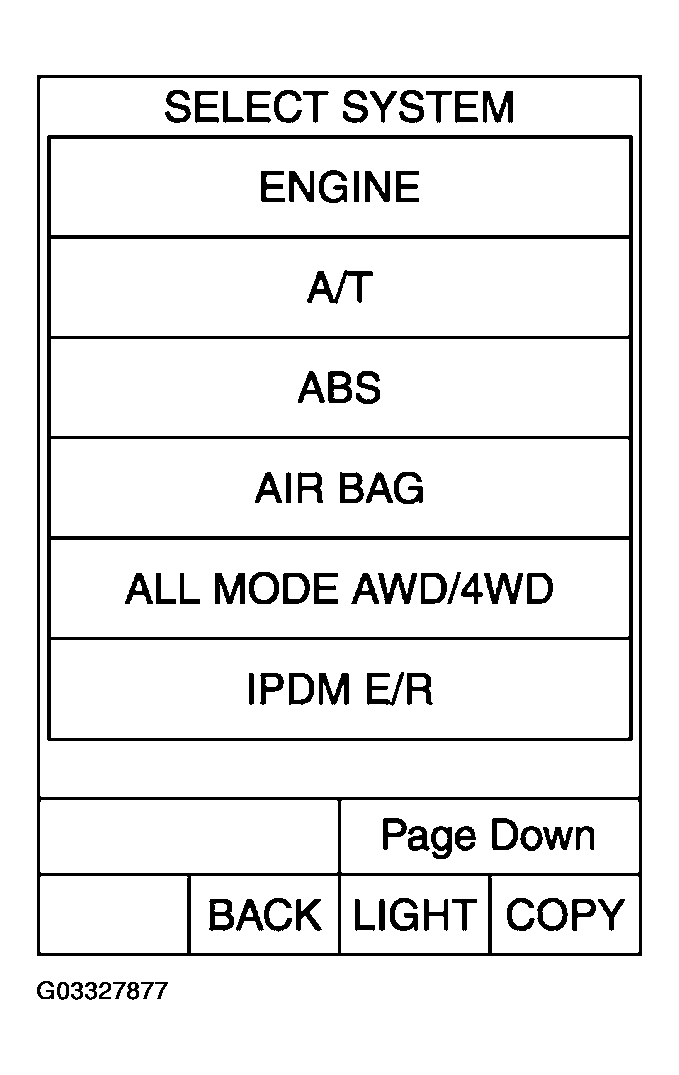

Fig 3: Displaying ENGINE in SELECT SYSTEM Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
Select desired part to be diagnosed on "SELECT DIAG MODE" screen.

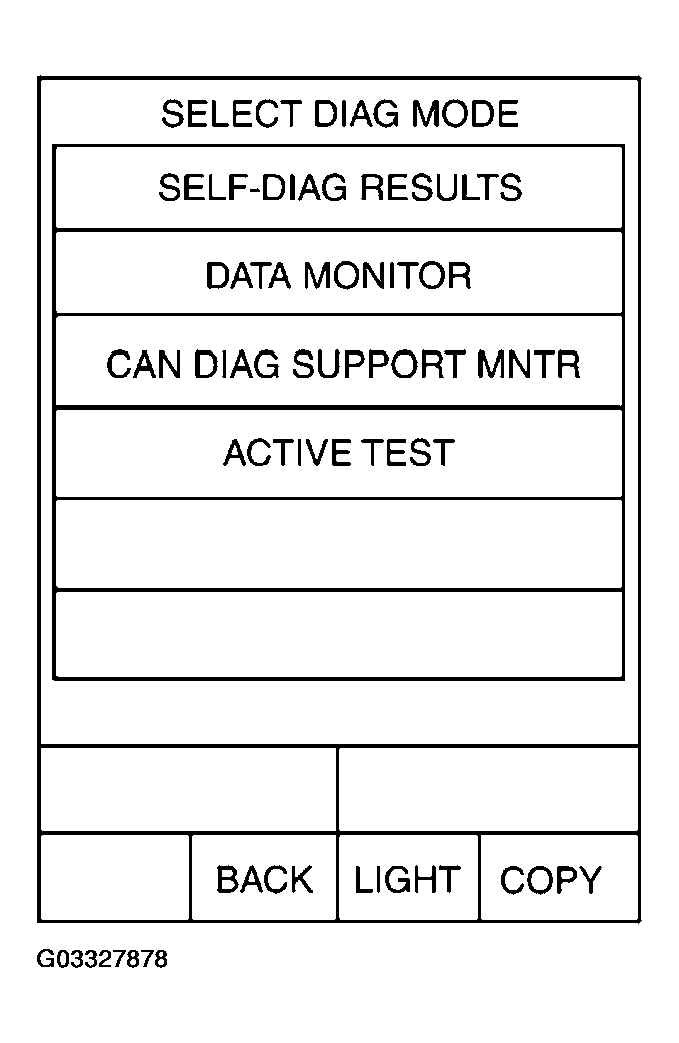

Fig 4: Displaying SELECT DIAG MODE Screen
