Consult-II Basic Operation

CAUTION: If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be detected in self-diagnosis depending on control unit which carry out CAN communication.

With ignition switch OFF, connect CONSULT-II and CONSULT-II CONVERTER to data link connector, then turn ignition switch ON.

Fig 1: Identifying Hood Opener Handle & Data Link Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "START (NISSAN BASED VHCL)".

Fig 2: Displaying CONSULT II Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "BCM" on "SELECT SYSTEM" screen.
If "BCM" is not indicated, refer to "CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT ".

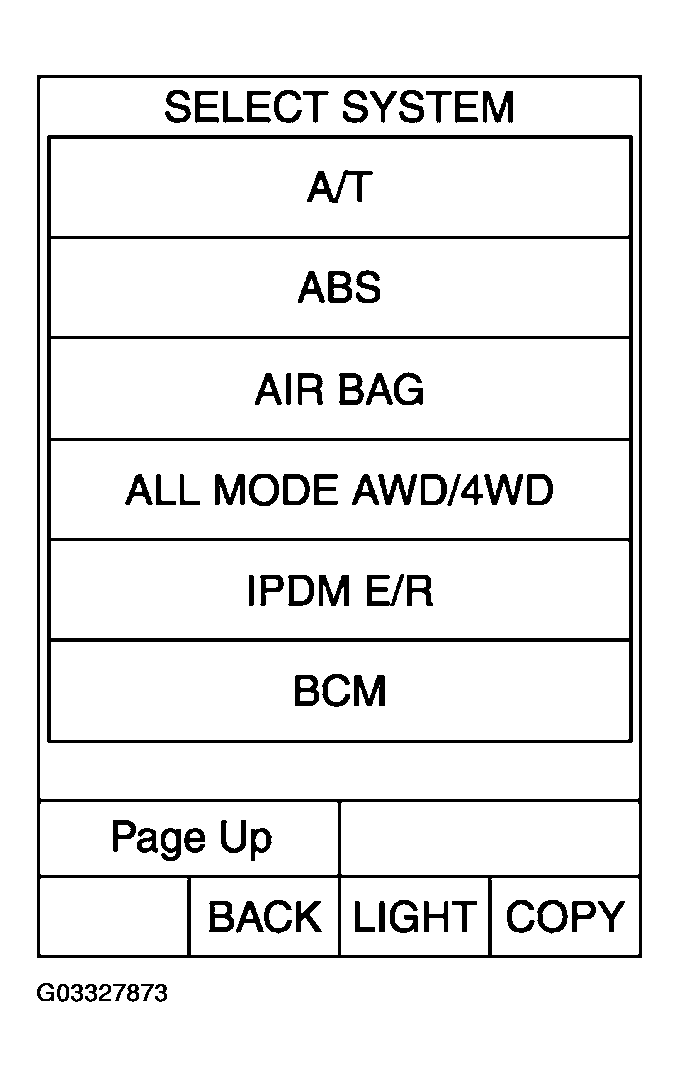

Fig 3: Displaying SELECT SYSTEM Screen On CONSULT II
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "HEAD LAMP" on "SELECT DIAG MODE" screen.

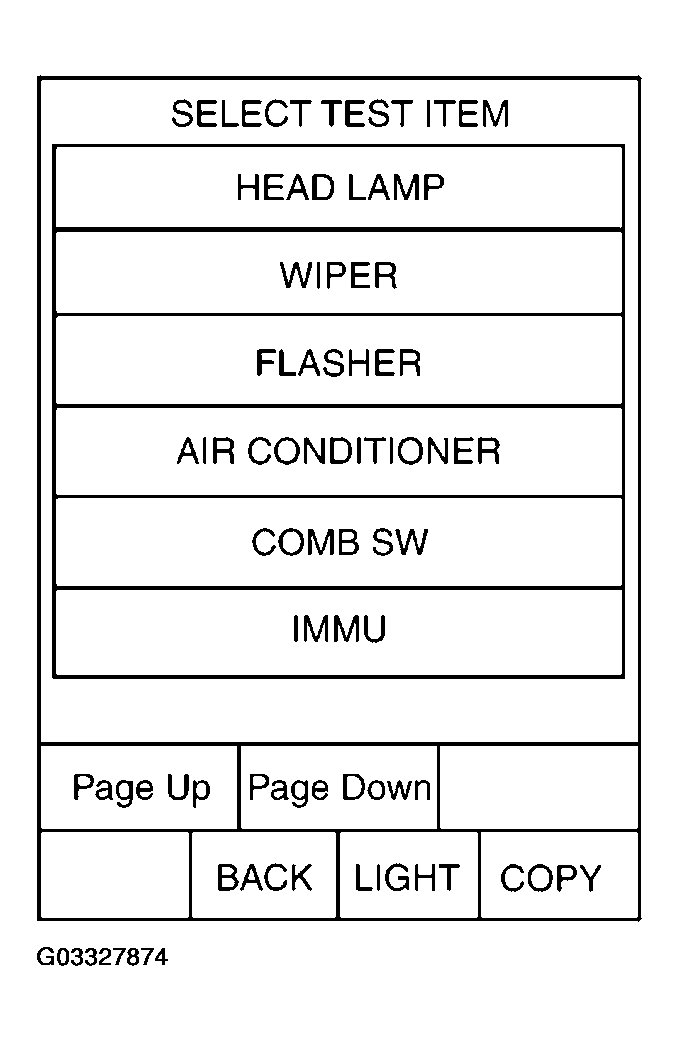

Fig 4: Displaying SELECT TEST ITEM Screen On CONSULT II
Courtesy of NISSAN MOTOR CO., U.S.A.
