Adjustment Using An Adjustment Screen (Light/Dark Borderline)

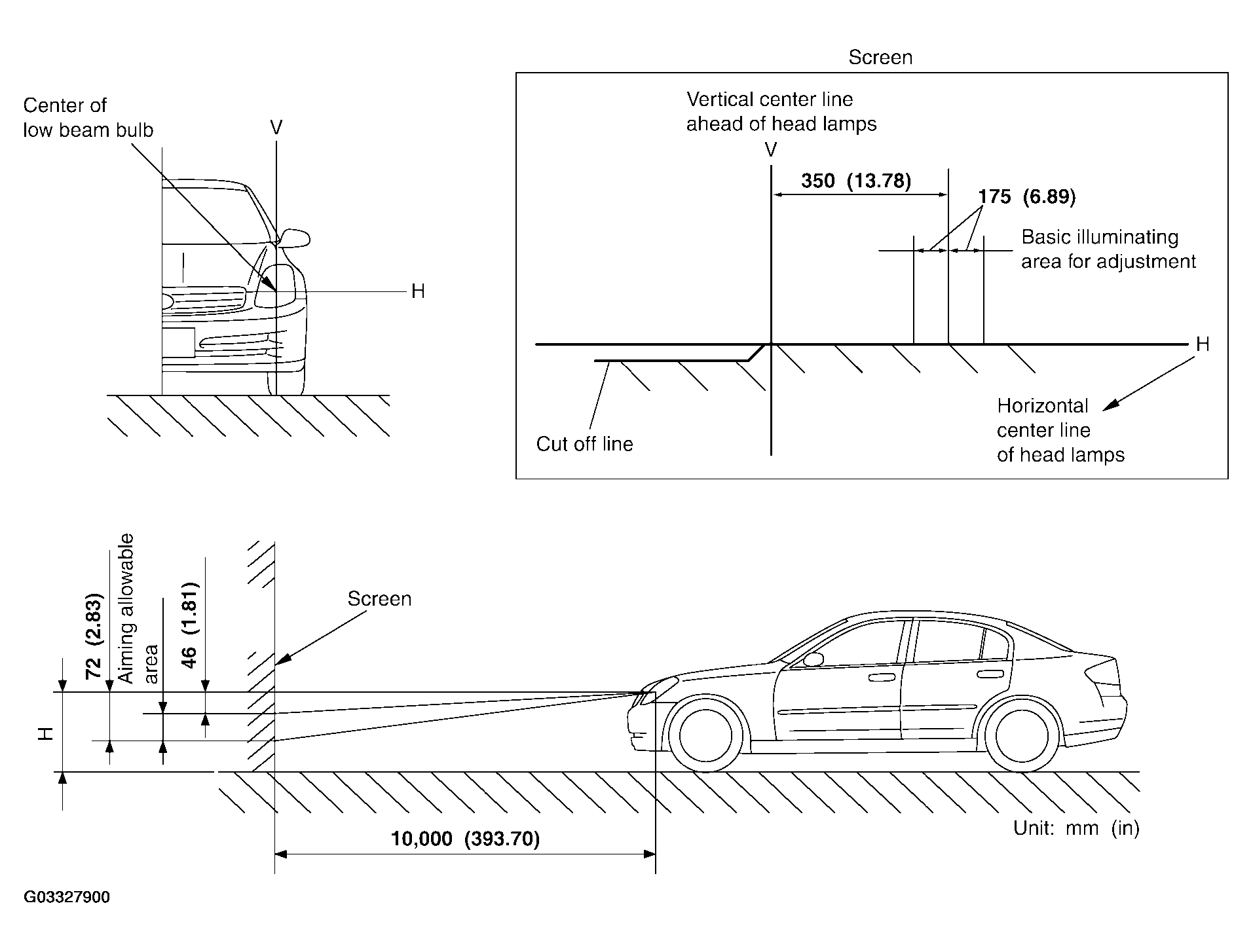

Fig 1: Using An Adjustment Screen (Light/Dark Borderline)

Courtesy of NISSAN MOTOR CO., U.S.A.

If vehicle front body has been repaired and/or headlamp assembly has been replaced, check aiming. Use aiming chart shown in the figure.

• Basic illumination area for adjustment should be within the range shown on the aiming chart. Adjust headlamp accordingly.
