2004.5 - Headlamp (For USA) - Sedan: Disassembly

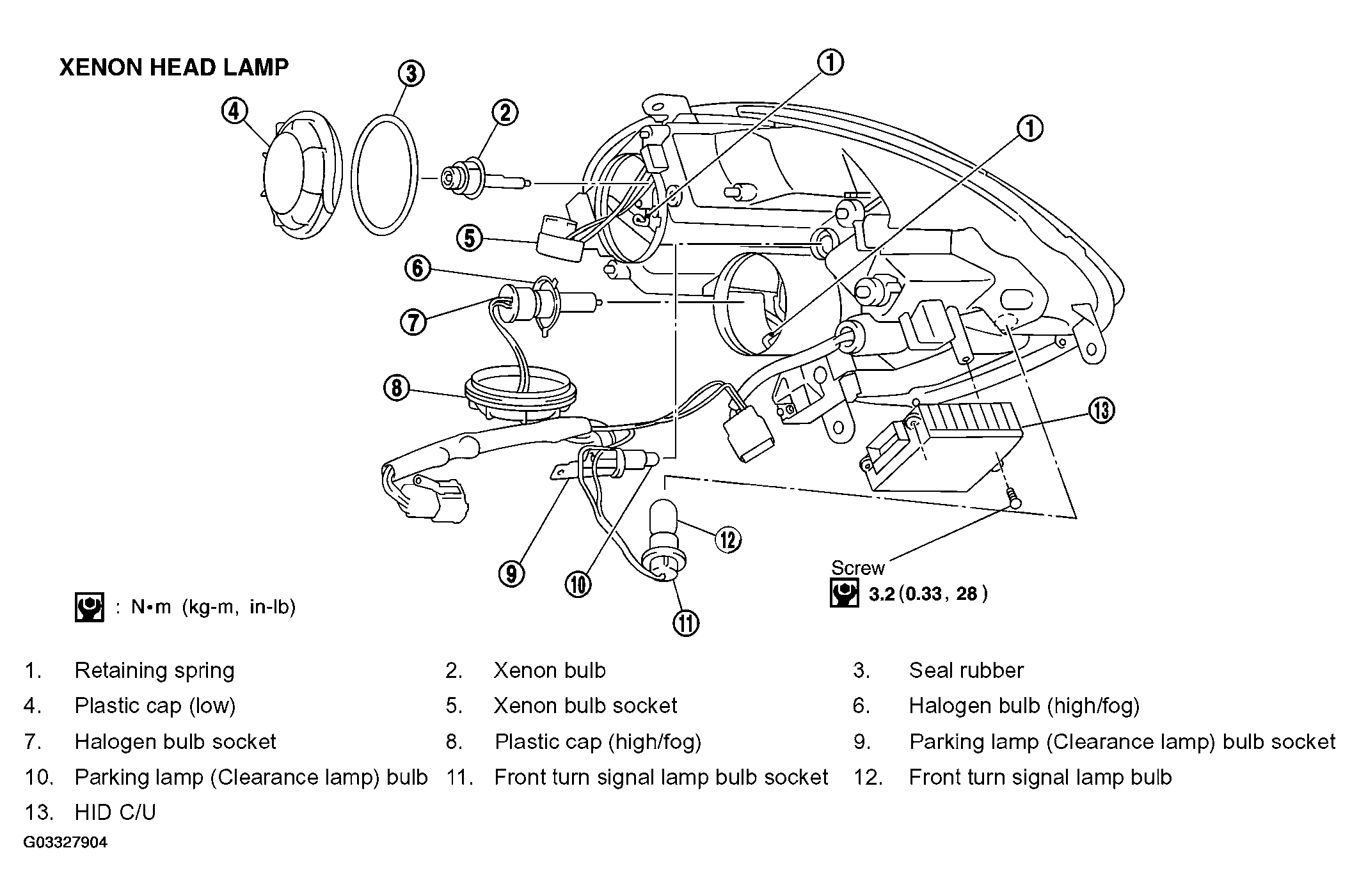

Fig 1: Headlamp Mounting Replacement Components With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.

1. Retaining spring
2. Xenon bulb
3. Seal rubber
4. Plastic cap (low)
5. Xenon bulb socket
6. Halogen bulb (high/fog)
7. Halogen bulb socket
8. Plastic cap (high/fog)
9. Parking lamp (Clearance lamp) bulb socket
10. Parking lamp (Clearance lamp) bulb
11. Front turn signal lamp bulb socket
12. Front turn signal lamp bulb
13. HID C/U

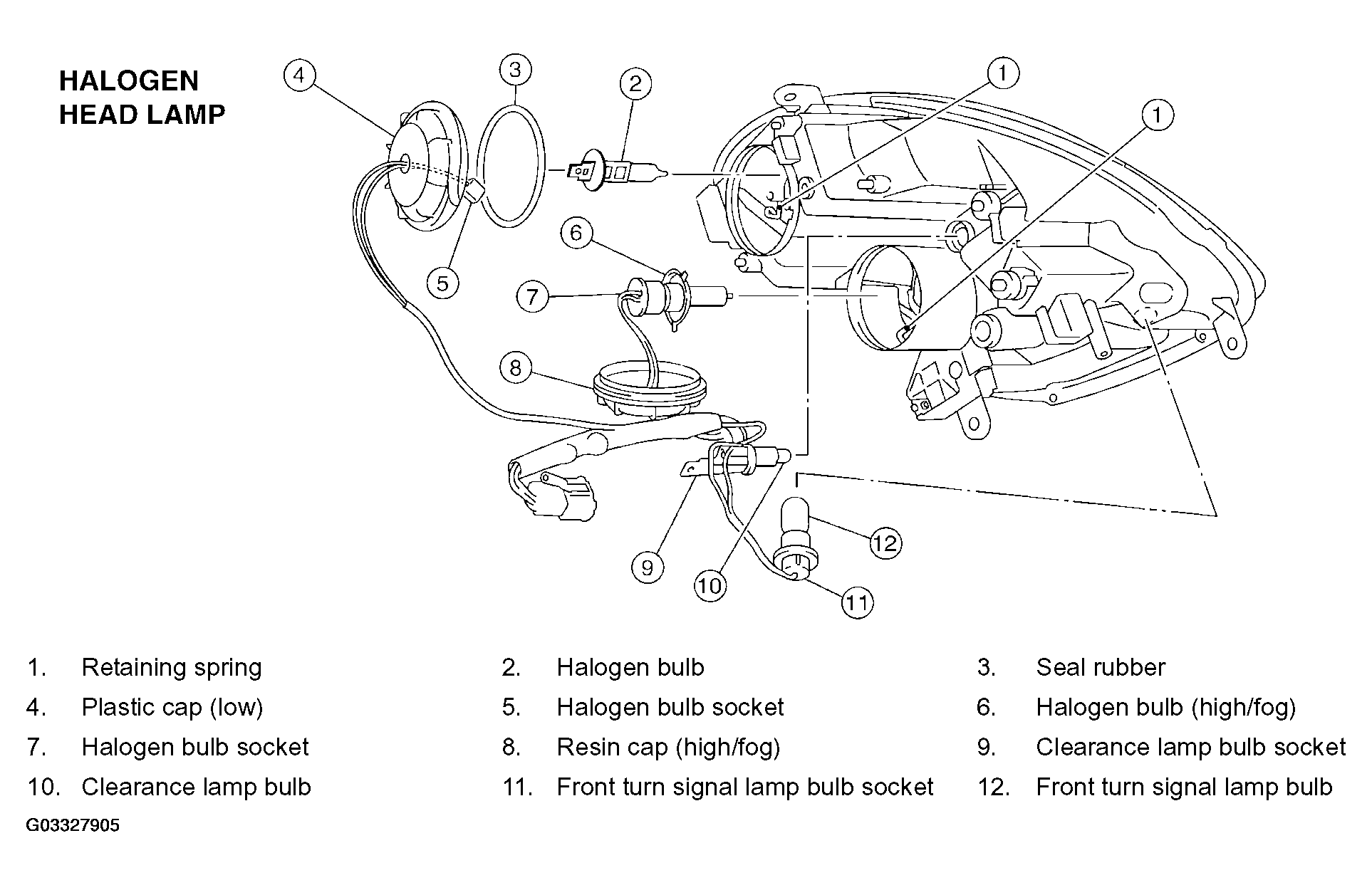

    Fig 2: Identifying Halogen Head Lamp Components

    Courtesy of NISSAN MOTOR CO., U.S.A.

1. Retaining spring
2. Halogen bulb
3. Seal rubber
4. Plastic cap (low)
5. Halogen bulb socket
6. Halogen bulb (high/fog)
7. Halogen bulb socket
8. Resin cap (high/fog)
9. Clearance lamp bulb socket
10. Clearance lamp bulb
11. Front turn signal lamp bulb socket
12. Front turn signal lamp bulb

1. Turn plastic cap (low) counterclockwise and unlock it.
2. Turn xenon bulb socket counterclockwise, and unlock it. (Xenon)
3. Unlock retaining spring, and remove xenon bulb (low). (Xenon)
4. Unlock retaining spring, and remove halogen bulb (low). (Halogen)
5. Disconnect HID control unit connector, and remove HID control unit screws. (Xenon)
6. Turn plastic cap (high/fog) counterclockwise, and unlock it.
7. Disconnect the terminal connected to the halogen bulb.
8. Unlock retaining spring, and remove halogen bulb (high/fog).
9. Turn clearance lamp bulb socket counterclockwise and unlock it.
10. Remove clearance lamp bulb from its socket.
11. Turn front turn signal lamp bulb socket counterclockwise and unlock it.
12. Remove front turn signal lamp bulb from its socket.
