Headlamp (Upper) Low Beam (Xenon)

  1. Turn lighting switch OFF.
  2. Disconnect negative battery cable or remove power fuse.
  3. Remove headlamp. Refer to "REMOVAL AND INSTALLATION ".
  4. Turn plastic cap counterclockwise and unlock it.
  5. Turn bulb socket counterclockwise and unlock it.
  6. Unlock retaining spring and remove bulb from headlamp.
  7. Install in reverse order of removal.

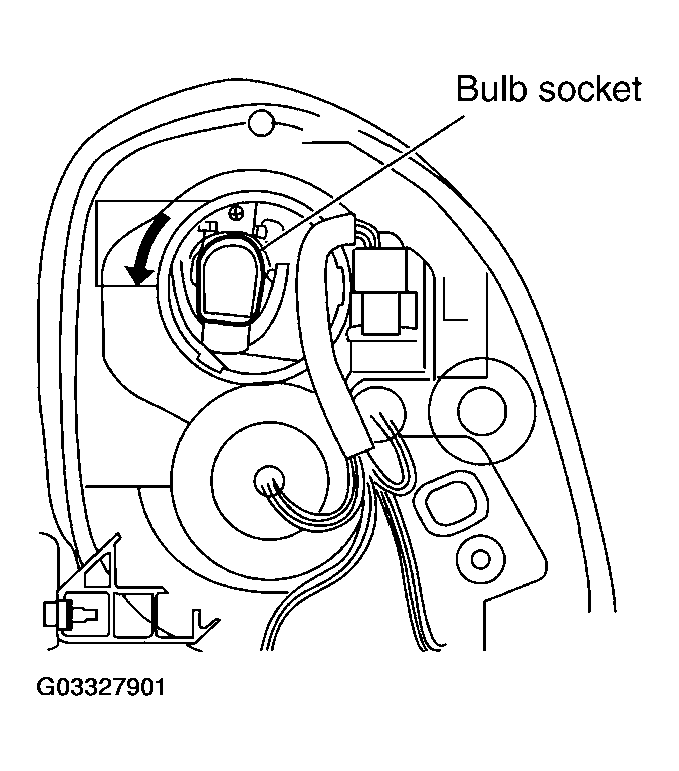

    Fig 1: Removing Bulb From Headlamp
    G03327901Courtesy of NISSAN MOTOR CO., U.S.A.
