2004 - Headlamp (For USA) - Sedan
>>
Headlamp (For USA)
>>
Terminals and Reference Values for IPDM E/R
Terminals and Reference Values for IPDM E/R

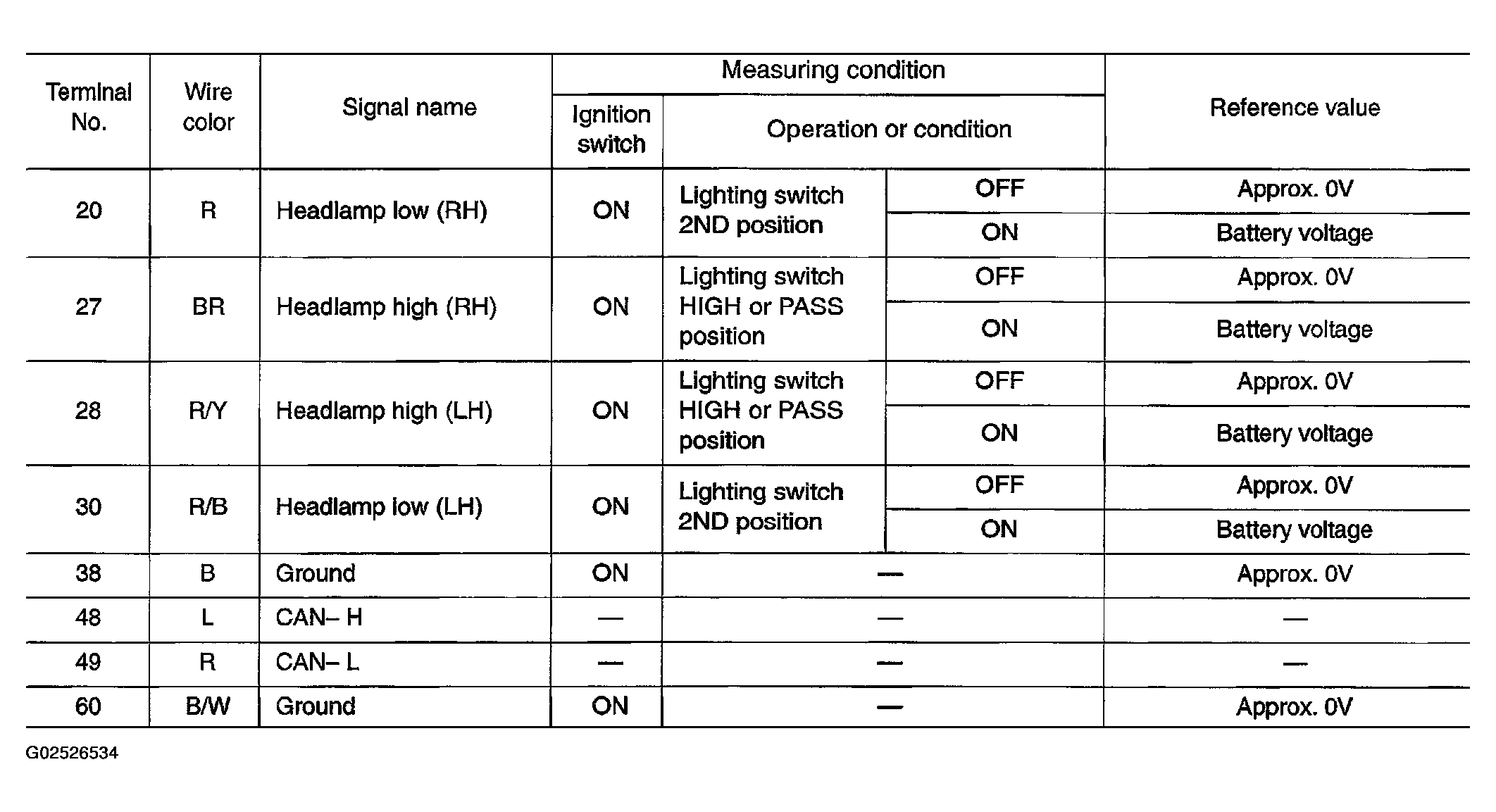

Fig 1: IPDM E/R Terminals And Reference Values Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
