Terminals and Reference Values for BCM

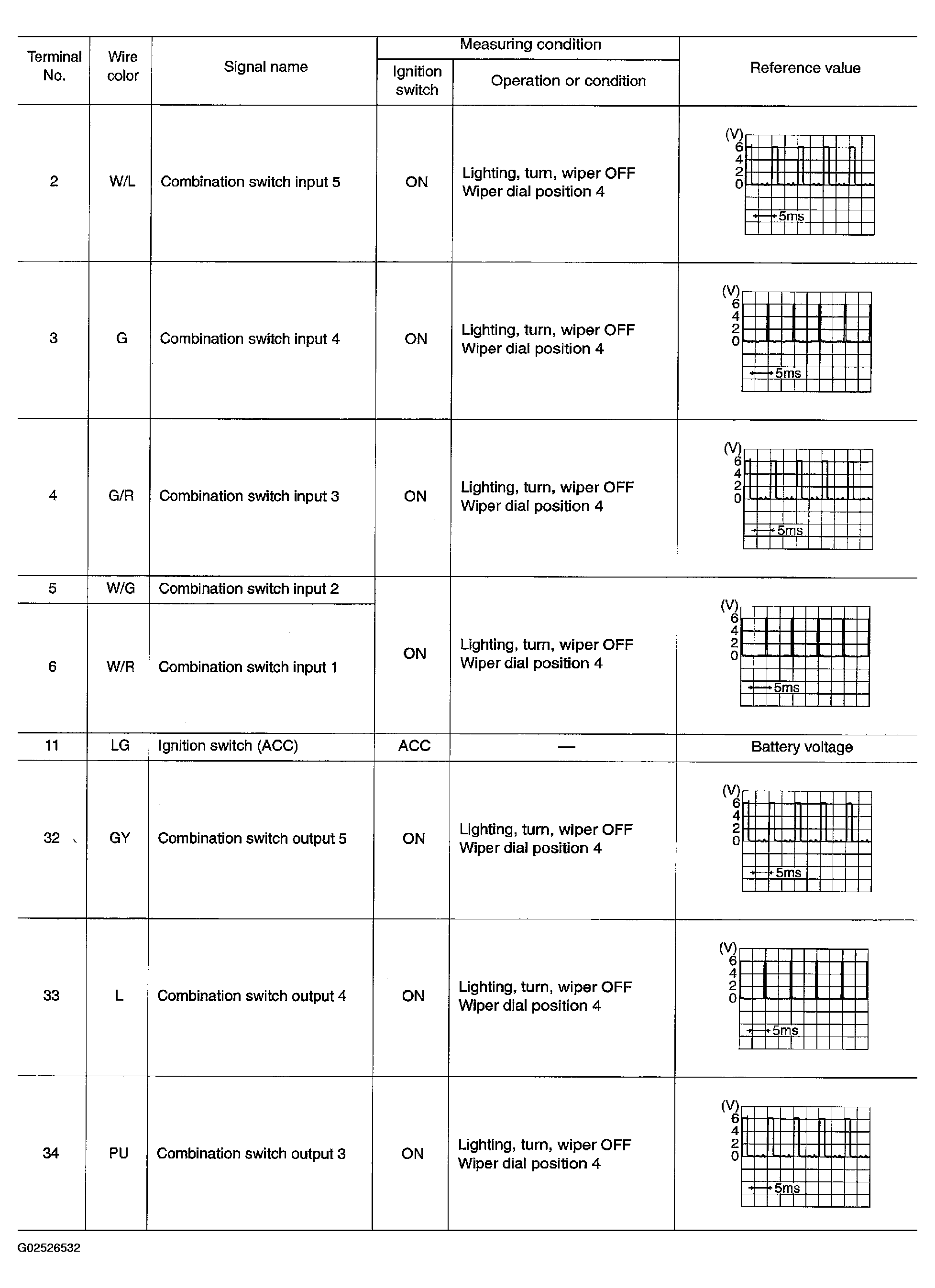

Fig 1: BCM Terminals And Reference Values Chart (1 of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

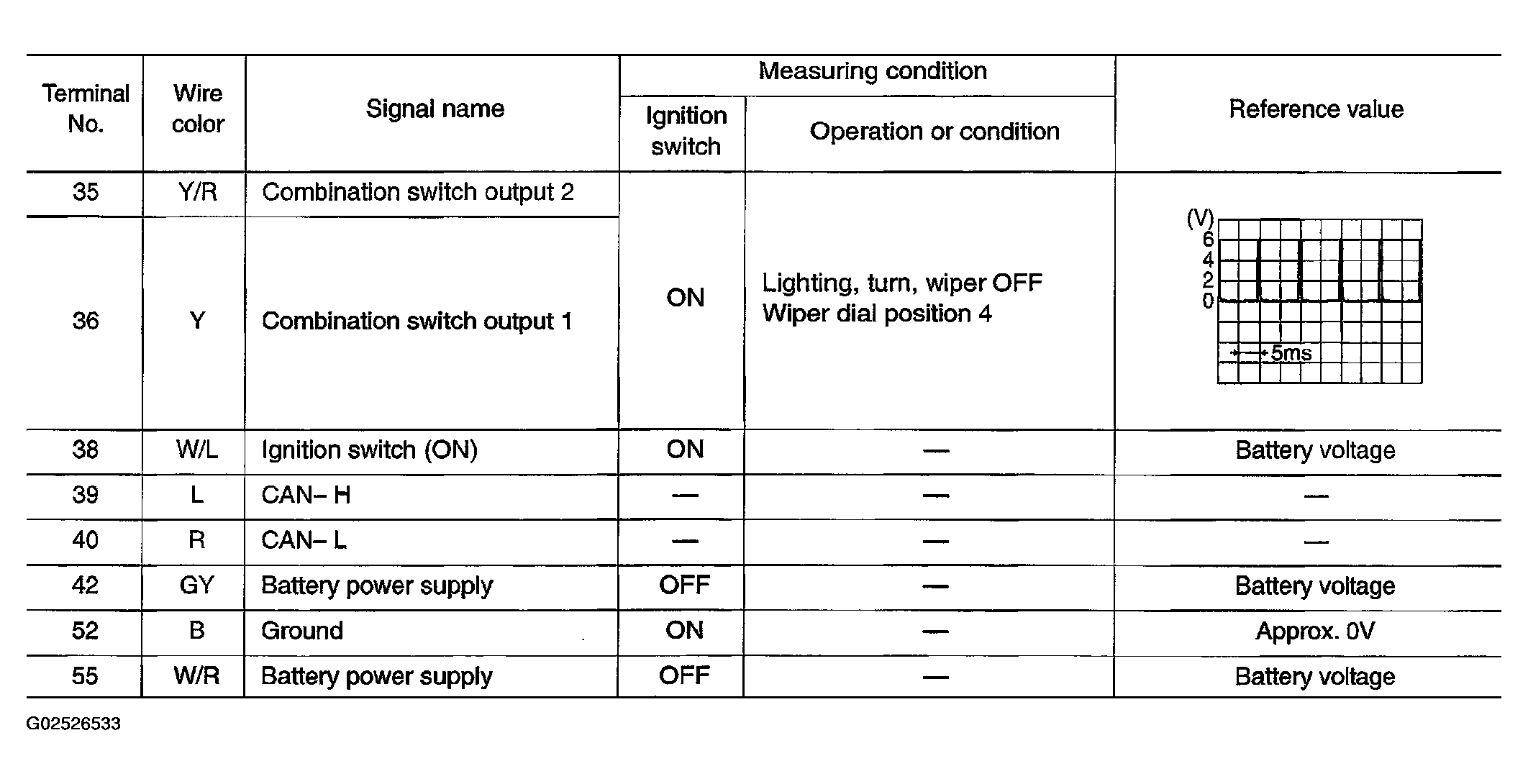

Fig 2: BCM Terminals And Reference Values Chart (2 of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
