Check Power Supply And Ground Circuit

CHECK FUSE
- Check fuses for blown-out.

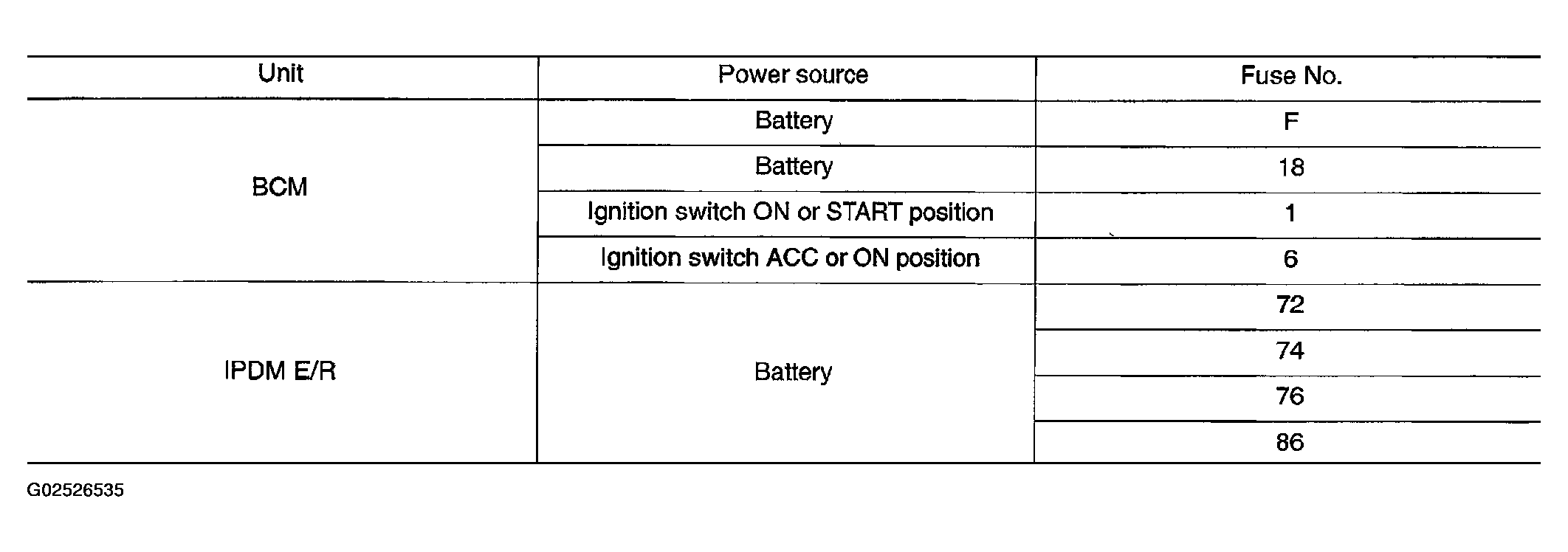

  Fig 1: Power Source Unit Table
  Courtesy of NISSAN MOTOR CO., U.S.A.
Refer to "Wiring Diagram - H/LAMP - ".

OK or NG
1. OK: GO TO 2.
2. NG: If fuse is blown, be sure to eliminate cause of malfunction before installing new fuse. Refer to SYSTEM WIRING DIAGRAMS .
CHECK POWER SUPPLY CIRCUIT
1. Disconnect BCM connector.
2. Check voltage between BCM harness connector and ground.

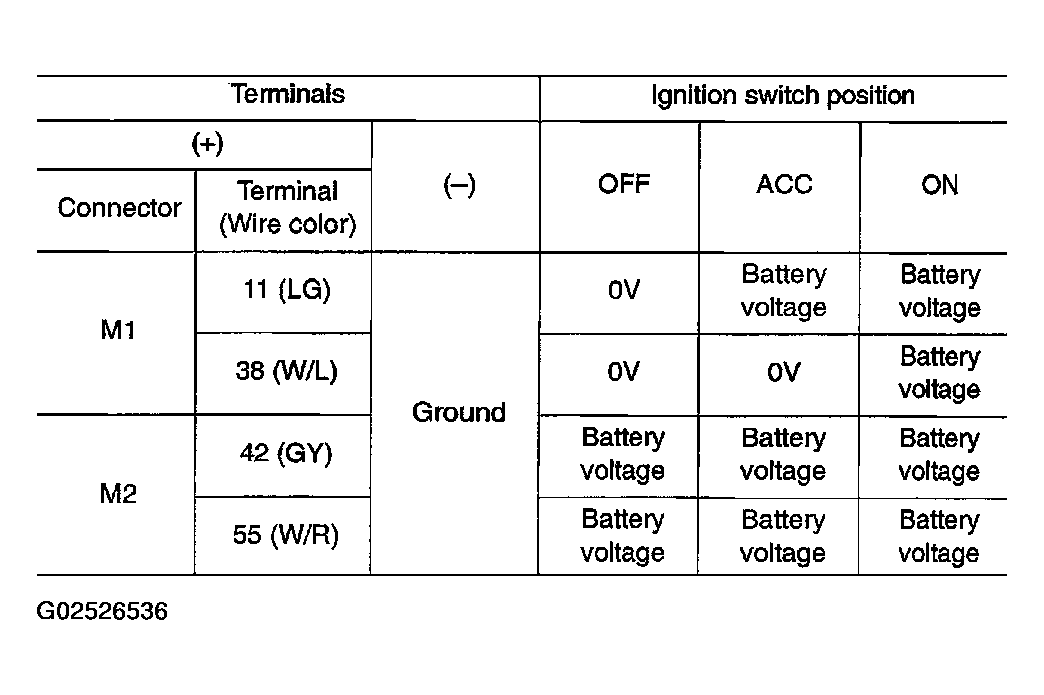

  Fig 2: Terminals Voltage Specification Chart
  Courtesy of NISSAN MOTOR CO., U.S.A.

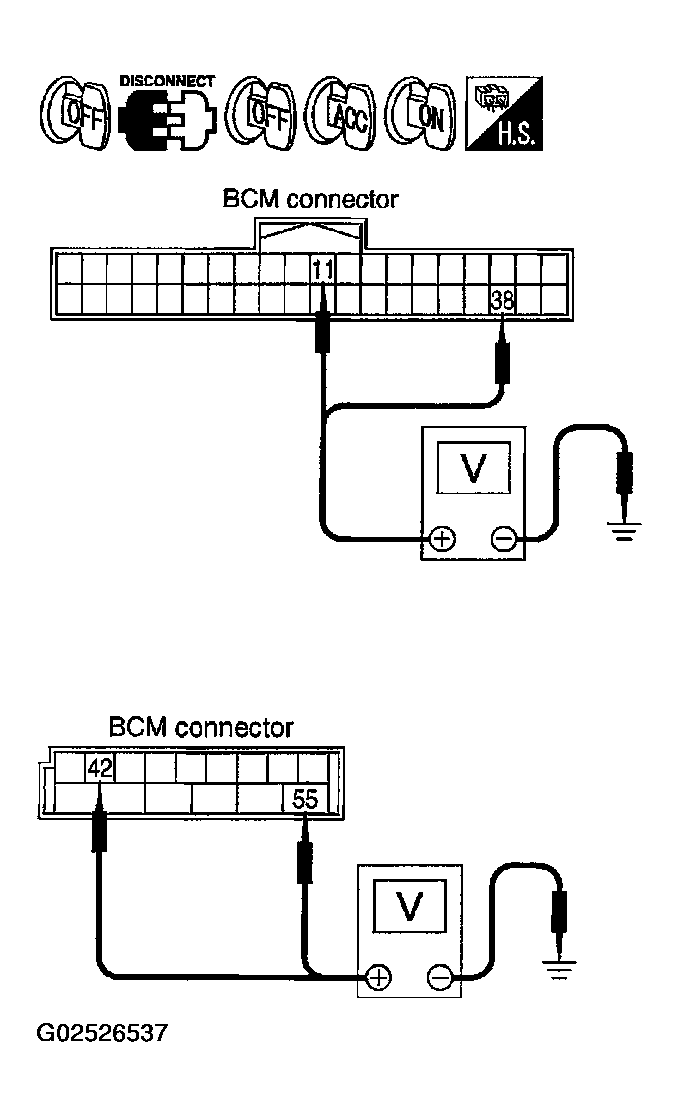

  Fig 3: Checking Voltage Between BCM Harness Connector And Ground
  Courtesy of NISSAN MOTOR CO., U.S.A.
OK or NG
1. OK: GO TO 3.
2. NG: Check harness for open or short between BCM and fuse.>
CHECK GROUND CIRCUIT
Check continuity between BCM harness connector and ground.

Fig 4: Terminal Continuity Specification Chart
Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 5: Checking Continuity Between BCM Harness Connector And Ground
Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG
1. OK: INSPECTION END
2. NG: Check ground circuit harness.
