Headlamps Do Not Turn OFF
- CHECK HEADLAMP TURN OFF
Make sure that lighting switch is OFF. And make sure is headlamp turns off when ignition switch is turned OFF.
OK or NG
- OK: GO TO 3
- NG: GO TO 2.
- CHECK COMBINATION SWITCH INPUT SIGNAL

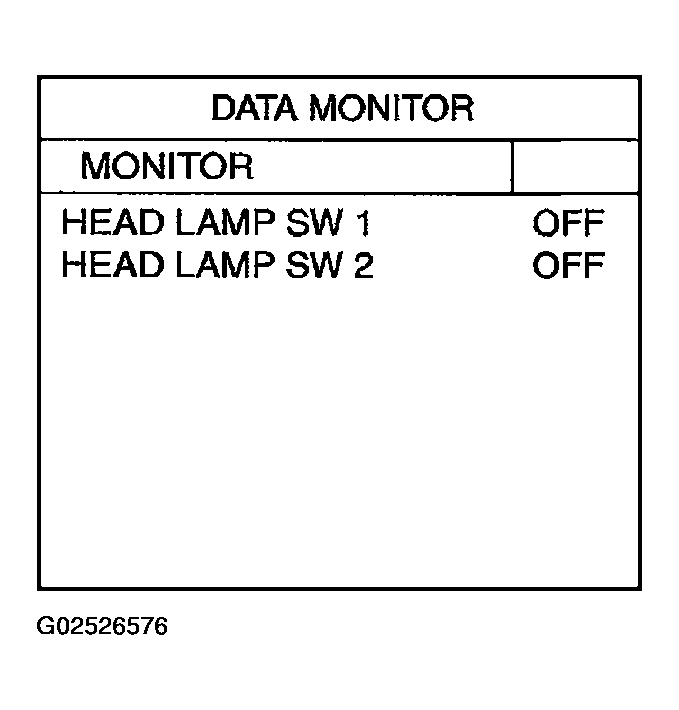

Select "BCM" on CONSULT-II. With "HEAD LAMP" data monitor, make sure "HEAD LAMP SW 1" and "HEAD LAMP SW 2" turns ON-OFF linked with operation of lighting switch.
When lighting switch is OFF position: HEAD LAMP SW 1 OFF: HEAD LAMP SW 2 OFF
OK or NG
- OK: Replace IPDM E/R.
- NG: Check lighting switch. Refer to COMBINATION SWITCH INSPECTION .
- CHECKING CAN COMMUNICATIONS BETWEEN BCM AND IPDM E/R

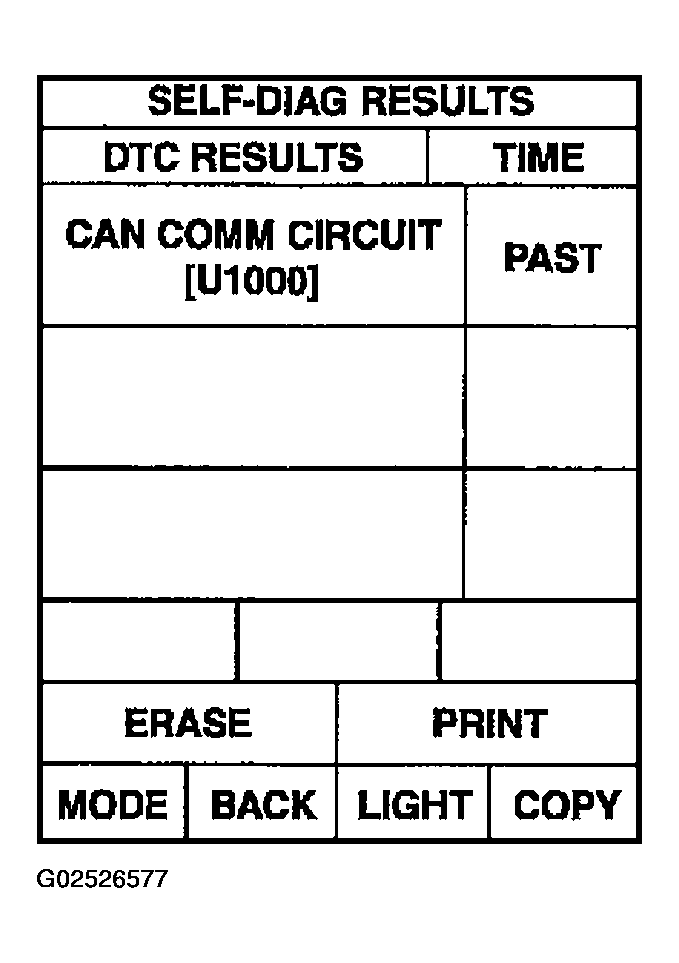

Select "BCM" by CONSULT-II, and perform self-diagnosis for "BCM". Display of self-diagnosis results.
- NO DTC: Replace IPDM E/R.
- CAN COMM CIRCUIT: Refer to CAN COMMUNICATION INSPECTION USING CONSULT-II .
CAUTION:
- Installation or removal of the connector must be done with the lighting switch OFF.
- When the lamp is illuminated (when the lighting switch is ON), do not touch the harness, HID control unit, inside of the lamp, or the lamp metal parts.
- To check illumination, temporarily install lamp in the vehicle. Be sure to connect power at the vehicle-side connector.
- If the error can be traced directly to the electrical system, first check for items such as burned-out fuses and fusible links, broken wires or loose connectors, pulled-out terminals, and improper connections.
- Do not work with wet hands.
- Using a tester for HID control unit circuit trouble diagnosis is prohibited.
- Disassembling the HID control unit or harnesses (bulb socket harness, ECM harness) is prohibited.
- Immediately after illumination, the light intensity and color will fluctuate, but there is nothing wrong.
- When the bulb has reached the end of its lifetime, the brightness may drop significantly, it may flash repeatedly, or the light may turn a reddish color.
